Mainboard Overview - Top

Cable Connectors and Switches

5
6
7
4
9
15
10 11
12
16
8
2 1
3
13 14
Mainboard Overview - Top 1 - 11
Introduction

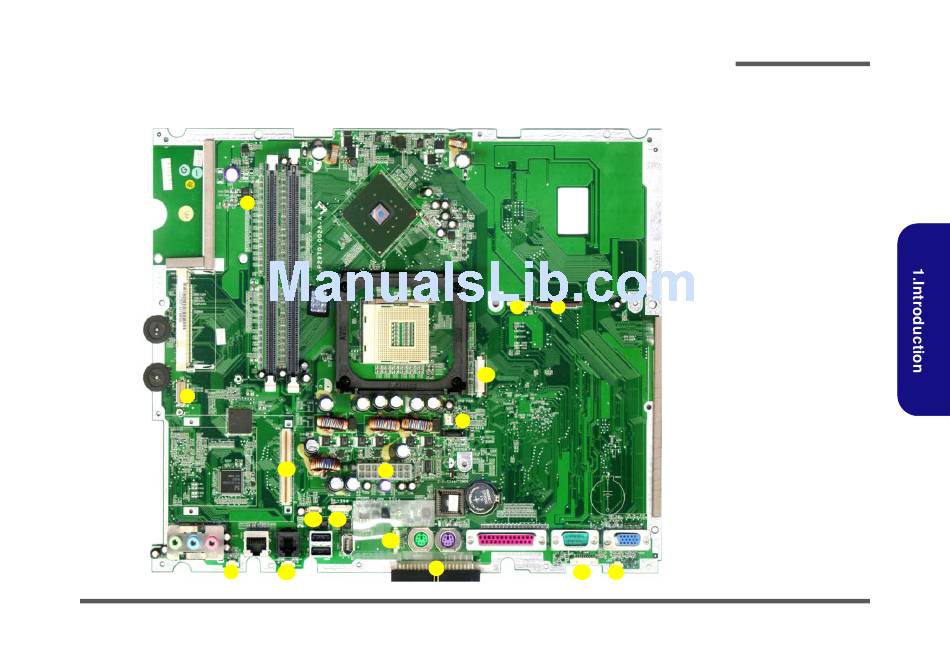

Figure 1 - 6
Mainboard Top
Cable Connectors &
Switches
1. Floppy Disk Drive
(CN5)
2. Card
Reader(CN4)
3. CD/DVD Device
(CN7)
4. Fan Power (CN9)
5. Inverter (CN1)
6. Modem Module
7. Speaker (CN31)
8. Modem Cable
(CN33)
9. PC CARD (CN13)
10. Touch Screen
(CN16)
11. IEEE1394 (CN36)
12. USB 2.0 (CN17)
13. LED Board
(CN30)
14. Speaker (CN32)
15. Power (CN12)
16. Hard Disk (CN34)
