Introduction

Mainboard Overview - Top (Key Parts)

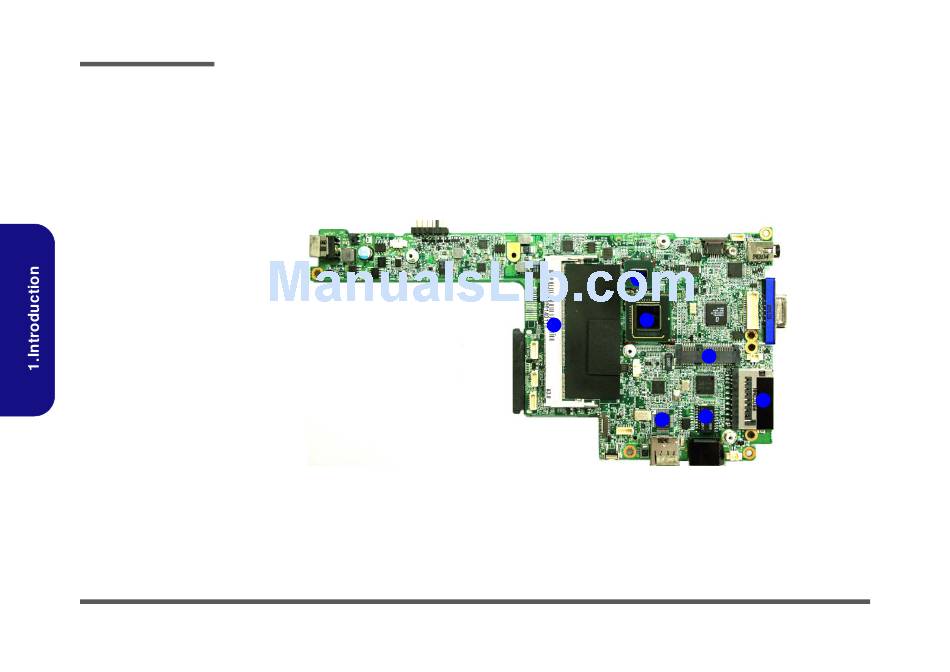

Figure 7
Mainboard Top
Key Parts
1. Intel Atom CPU
2. Memory Slots
DDR2 SO-DIMM
3. System Controller
Hub
4. Super I/O
5. Transformer
6. Card Reader
Socket
7. Mini-Card
Connector
(WLAN Module)
1 - 8 Mainboard Overview - Top (Key Parts)
1
3
2
7
5
4
6
