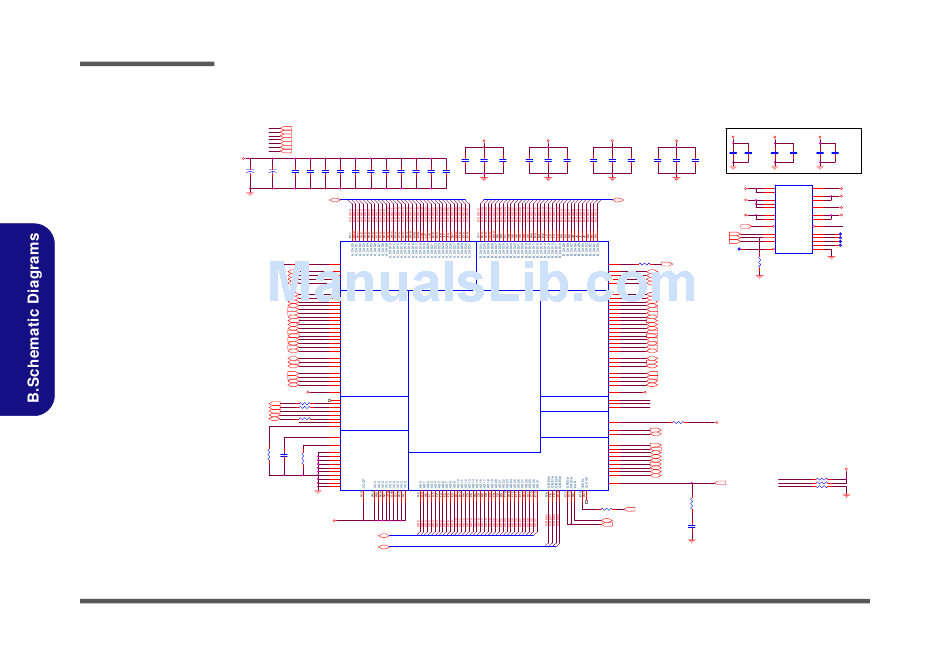

Cardbus PCI1520

Sheet 17 of 28
Cardbus PCI1520
+3V
CT32
+
10u/10V_1206
[19] A-CCLK
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[19]
[15,19] INTA#
[15,19] INTB#
[23] PCMCIA-RI#
[15,22] SERIRQ
[15] PLOCK#
B - 18 Cardbus PCI1520 (71-P2970-002A)
+3V [3,4,5,6,11,12,13,14,15,16,19,20,21,22,23,24,26,27,28]
+5V [4,11,12,13,14,16,19,21,22,23,24,25,26,27,28]
+12V [12,13,16,22,24,25,26,27,28]
+VCC_A [19]
+VCC_B [19]
+VPP_A [19]
+VPP_B [19]
CT31
+ CA106 CA247 CA128 CA246 CA118 CA136 CA129 CA237 C116 C90
10u/10V_1206
0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u
[19] A-CAD[0..31]
R449 47 Z1715 M14
A_CCLK
V14
A-CC/BE0# A_CC/BE0#
SLOT A INTERFACE
T19
A-CC/BE1# A_CC/BE1#
M17
A-CC/BE2#
A_CC/BE2#
K14
A-CC/BE3#
A_CC/BE3#
H17
A-CAUDIO A_CAUDIO
N14
A-CBLOCK# A_CBLOCK#
N15
A-CDEVSEL# A_CDEVSEL#
M15
A-CFRAME# A_CFRAME#
P18
A-CGNT# A_CGNT#
H19
A-CINT# A_CINT#
N18
A-CIRDY# A_CIRDY#
H15
A-CCLKRUN# A_CLKRUN#
P15
A-CPAR A_CPAR
R18
A-CPERR# A_CPERR#
K17
A-CREQ# A_CREQ#
L15
A-CRST# A_CRST#
CARD A
H18
A-CSERR# A_CSERR#
P17
A-CSTOP# A_CSTOP#
H14 CONTROL
A-CSTSCHG A_CSTSCHG
N17
A-CTRDY# A_CTRDY# TERMINALS
F17
A-RSVD/D2 A_RSVD/D2
R17
A-RSVD/A18 A_RSVD/A18
V13
A-RSVD/D14 A_RSVD/D14
U11
A-CCD1# A_CCD1#
G18
A-CCD2# A_CCD2#
J15
A-CVS1 A_CVS1
L18
A-CVS2 A_CVS2
P19
+VCC_A VCCA
E5
NC
R431 0 Z1710 D19
INTA#/GPIO0/MFUNC0
R432 0 Z1711 A16
INTB#/GPIO1/MFUNC1
PCMCIA-RI# E14
PCREQ/GPIO2/MFUNC2
F13
SERRIR/IRQ3/MFUNC3
R613 0 Z1716 B15
LOCK#/GPIO3/MFUNC4
MFUNC5 A15
PCGNT/GPIO4/MFUNC5
Z1712 C14
CLKRUN#/IRQ6/MFUNC6
Z1713 K19
VR_OUT
Z1714 L1
VR_EN#
R130 C308 A6
GND
R430 A9
GND
POWER
10K 1u A14
GND
0 E1
GND
K1
GND
P1
GND
R19
GND
W6
GND
F19
GND
W14
GND
+3V
AD[0..31]
[15,19,20] AD[0..31]
C/BE#[0..3]
[15,19,20] C/BE#[0..3]
+VCC_A +VPP_A +VCC_B
CA110 CA256 CF8 CA250 CA272 CF7 CA137 CA259
0.1u 0.1u 4.7u/16V_1206 0.1u 0.1u 4.7u/16V_1206 0.1u 0.1u
C321
0.1u
B-CAD[0..31] [19]
U41
P6 Z1708
B_CCLK
K5
B_CC/BE0#
SLOT B INTERFACE
M6
B_CC/BE1#
T1
B_CC/BE2#
U7
B_CC/BE3#
V9
B_CAUDIO
N3
B_CBLOCK#
P3
B_CDEVSEL#
R3
B_CFRAME#
N5
B_CGNT#
V8
B_CINT#
P5
B_CIRDY#
R9
B_CLKRUN#
N2
B_CPAR
N6
B_CPERR#
R7
B_CREQ#
W5
B_CRST#
CARD B
W9
B_CSERR#
P2
B_CSTOP#
CONTROL U9
B_CSTSCHG
R2
TERMINALS B_CTRDY#
P10
B_RSVD/D2
M5
B_RSVD/A18
J6
B_RSVD/D14
H5
PCI-1520
B_CCD1#
P9
B_CCD2#
U8
B_CVS1
P7
B_CVS2
R1
VCCB
F15
POWER SWITCH CLOCK
E17
DATA
E18
LATCH
C15 Z1709
SUSPEND#
F14 SPKROUT#
SPKROUT#
E13
RI_OUT#/PME#
A13
REQ#
B13
GNT#
B6
STOP#
B7
IRDY#
C7
TRDY#
C6
PCI BUS INTERFACE SERR#
E7
PERR#
E8
FRAME#
F7
DEVSEL#
C10
PCLK
PCI 1520PBGA
R126
Z1707
100
PAR
PCIRST#2
PCIRST#2 [15,19,20]
CLOSE TO TPS_2224
+3V +5V
+VPP_B
CA240 CF4 CA243 CF5
CF3 CA271 CA235 CF2
0.1u 4.7u/16V_1206 0.1u 4.7u/16V_1206
4.7u/16V_1206 0.1u 0.1u 4.7u/16V_1206
U26
7
+12V 12V AVPP
20
12V
AVCC
1
+5V
5V AVCC
2
5V
24
5V BVPP
13
+3V
3V BVCC
14
3V BVCC
12
[15,19,20] PCIRST#2 RESET# SHDN#
DATA 3
DATA
DATA NC
CLOCK 4
CLOCK CLOCK NC
LATCH 5
LATCH LATCH NC
NC
Z1702 15
T12
OC# GND
TPS_2224
R450
R162 47
B-CCLK [19]
43K
B-CC/BE0# [19]
B-CC/BE1# [19]
B-CC/BE2# [19]
B-CC/BE3# [19]
B-CAUDIO [19]
B-CBLOCK# [19]
B-CDEVSEL# [19]
B-CFRAME# [19]
B-CGNT# [19]
B-CINT# [19]
B-CIRDY# [19]
B-CCLKRUN# [19]
B-CPAR [19]
B-CPERR# [19]
B-CREQ# [19]
B-CRST# [19]
B-CSERR# [19]
B-CSTOP# [19]
B-CSTSCHG [19]
B-CTRDY# [19]
B-RSVD/D2 [19]
B-RSVD/A18 [19]
B-RSVD/D14 [19]
B-CCD1# [19]
B-CCD2# [19]
B-CVS1 [19]
B-CVS2 [19]
+VCC_B
CLOCK
DATA
LATCH
R129 10K
+3V
SPKROUT# [24]
PME# [15,19,20,22]
REQ0# [15]
GNT0# [15]
STOP# [15,19,20]
IRDY# [15,19,20]
TRDY# [15,19,20]
SERR# [15,19,20]
PERR# [15,19,20]
FRAME# [15,19,20]
DEVSEL# [15,19,20]
PCMCIA-RI# R599
PCLK MFUNC5 R600
PCLK [4]
SPKROUT# R131
R127
75_R
AD23 [15,19,20]
Z1701
[15,19,20]
CP4
10p_R
+12V
CA242 CF6
0.1u 4.7u/16V_1206
8
+VPP_A
9
+VCC_A
10
19
+VPP_B
18
+VCC_B
17
21 TZ1701
6 Z1703
T8
16 Z1704
T9
22 Z1705
T10
23 Z1706
T11
11
+3V
10K
10K
43K
