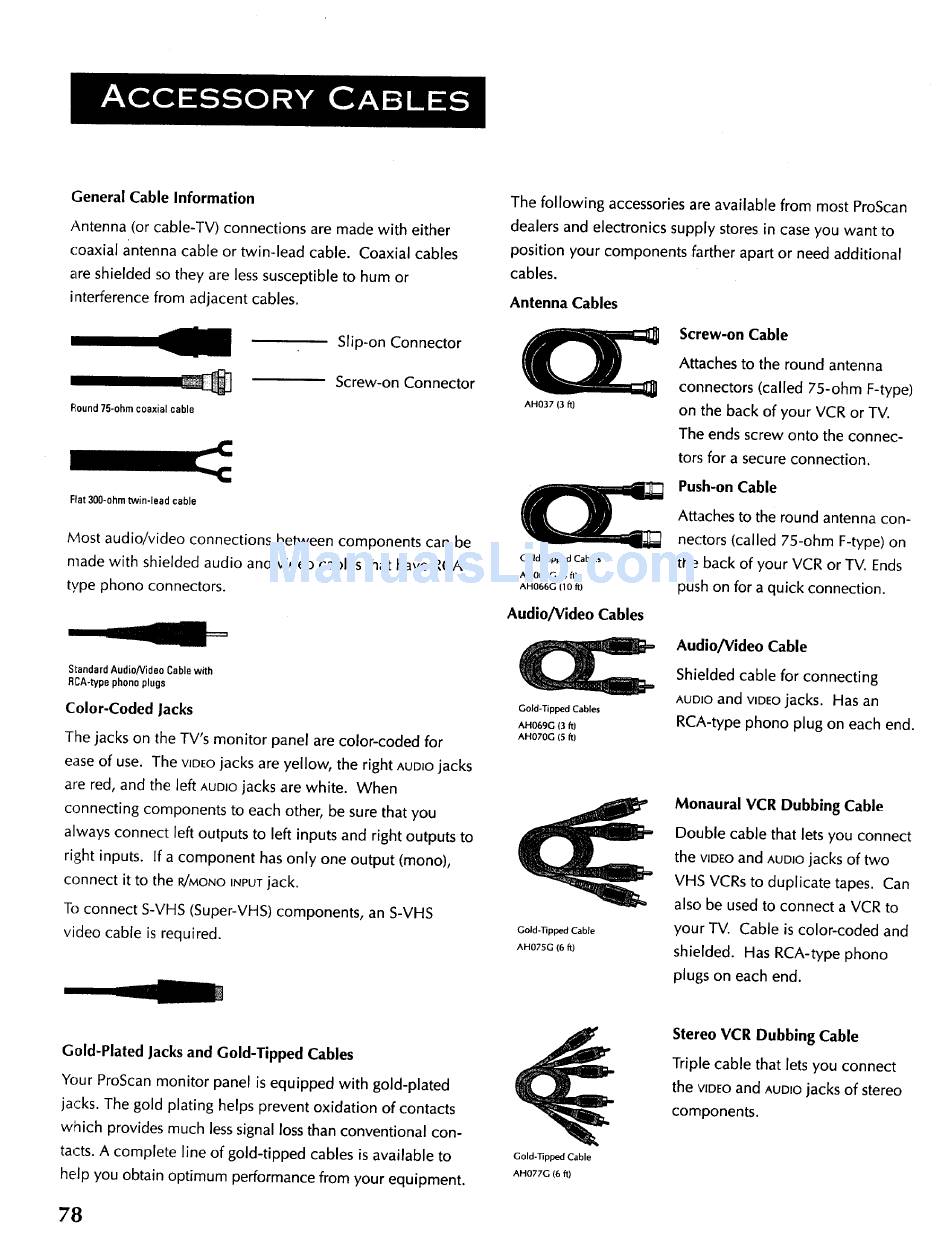

General Cable Information
Antenna (or cable-TV) connections are made with either
coaxial antenna cable or twin-lead cable. Coaxial cables
are shielded so they are less susceptible to hum or
interference from adjacent cables.
Round 75-ohm coaxial cable
Slip-on Connector
Screw-on Connector
Flat300-ohmtwin-lead cable
Most audio/video connections between components can be
made with shielded audio and video cables that have RCA-
type phono connectors.
Standard Audio/Video Cable with
RCA-type phono plugs
Color-Coded Jacks
The jacks on the TV's monitor panel are color-coded for
ease of use. The VIDEO jacks are yellow, the right AUDIO jacks
are red, and the left AUDIO jacks are white. When
connecting components to each other, be sure that you
always connect left outputs to left inputs and right outputs to
right inputs. If a component has only one output (mono),
connect it to the
P-./MONO INPUT
jack.
To connect S-VHS (Super-VHS) components, an S-VHS
video cable is required.
The following accessories are available from most ProScan
dealers and electronics supply stores in case you want to
position your components farther apart or need additional
cables.
Antenna Cables
AH037 (3 ft)
Screw-on Cable
Attaches to the round antenna
connectors (called 75-ohm F-type)
on the back of your VCR or TV.
The ends screw onto the connec-
tors for a secure connection.
Gold-Tipped Cables
AH065G (6 fi)
AH066G (10 ft)
Audio/Video Cables
Push-on Cable
Attaches to the round antenna con-
nectors (called 75-ohm F-type) on
the back of your VCR or TV. Ends
push on for a quick connection.
Gold-Tipped Cables
AH069G (3 if)
AH070G (5 if)
Audio/Video Cable
Shielded cable for connecting
AUDIO and VIDEO jacks. Has an
RCA-type phono plug on each end.
Gold-Tipped Cable
AH075G (6 ft)
Monaural VCR Dubbing Cable
Double cable that lets you connect
the VIDEO and AUDIO jacks of two
VHS VCRs to duplicate tapes. Can
also be used to connect a VCR to
your "iV. Cable is color-coded and
shielded. Has RCA-type phono
plugs on each end.
Gold-Plated Jacks and Gold-Tipped Cables
Your ProScan monitor panel is equipped with gold-plated
jacks. The gold plating helps prevent oxidation of contacts
which provides much less signal loss than conventional con-
tacts. A complete line of gold-tipped cables is available to
help you obtain optimum performance from your equipment.
Gold-Tipped Cable
AH077G (6 fi)
Stereo VCR Dubbing Cable
Triple cable that lets you connect
the vIDEO and AUDIO jacks of stereo
components.
