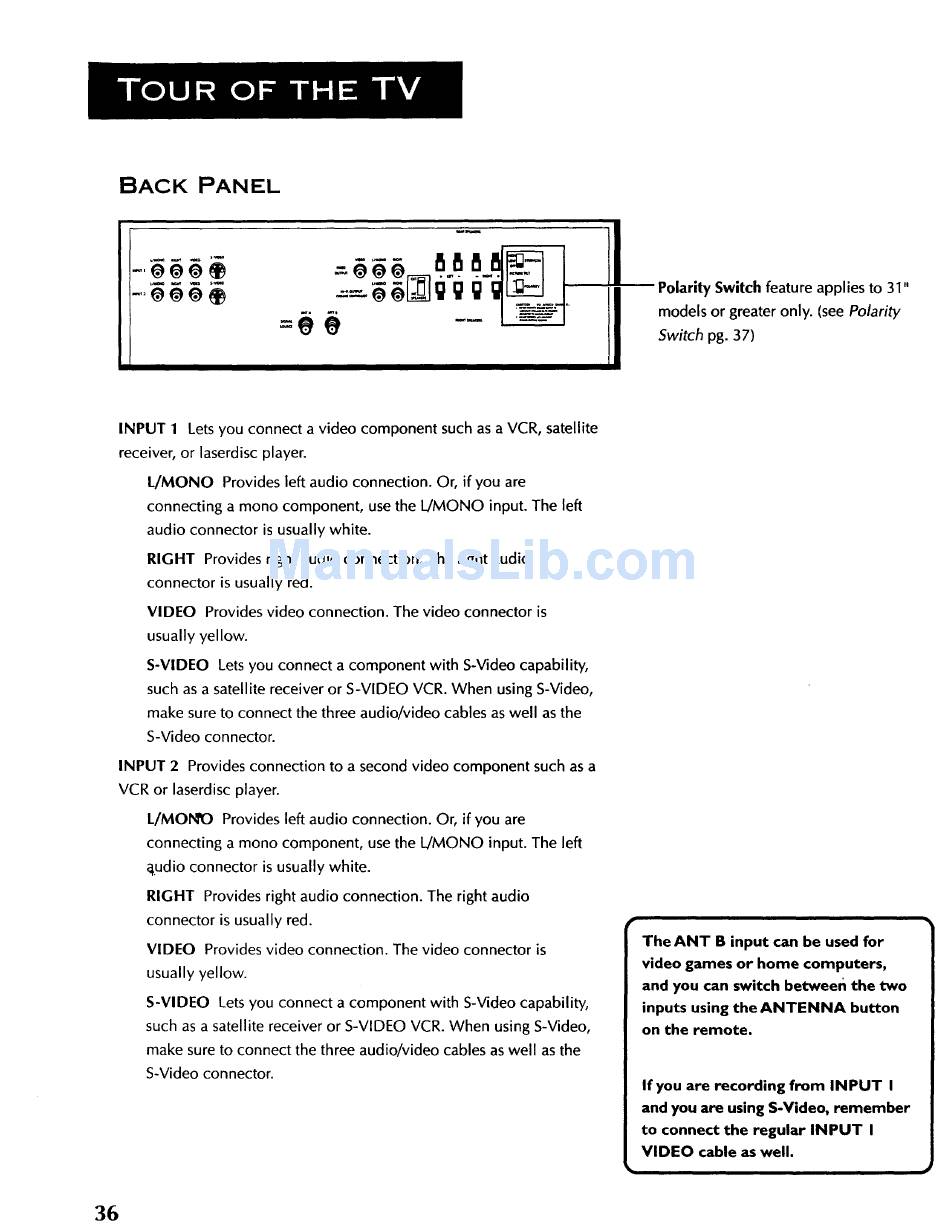

BACK PANEL
-,eee@
-2eee@
.... __
=ee
Polarity Switch feature applies to 31"
models or greater only. (see Polarity
Switch pg. 37)
INPUT 1 Lets you connect a video component such as a VCR, satellite
receiver, or laserdisc player.
L/MONO Provides left audio connection. Or, if you are
connecting a mono component, use the L/MONO input. The left
audio connector is usually white.
RIGHT Provides right audio connection. The right audio
connector is usually red.
VIDEO Provides video connection. The video connector is
usually yellow.
S-VIDEO Lets you connect a component with S-Video capability,
such as a satellite receiver or S-VIDEO VCR. When using S-Video,
make sure to connect the three audio/video cables as well as the
S-Video connector.
INPUT 2 Provides connection to a second video component such as a
VCR or laserdisc player.
L/MON"O Provides left audio connection. Or, if you are
connecting a mono component, use the L/MONO input. The left
a_udio connector is usually white.
RIGHT Provides right audio connection. The right audio
connector is usually red.
VIDEO Provides video connection. The video connector is
usually yellow.
S-VIDEO Lets you connect a component with S-Video capability,
such as a satellite receiver or S-VIDEO VCR. When using S-Video,
make sure to connect the three audio/video cables as well as the
S-Video connector.
The ANT B input can be used for
video games or home computers,
and you can switch between the two
inputs using the ANTENNA button
on the remote.
If you are recording from INPUT I
and you are using S-Video, remember
to connect the regular INPUT I
VIDEO cable as well.
36
