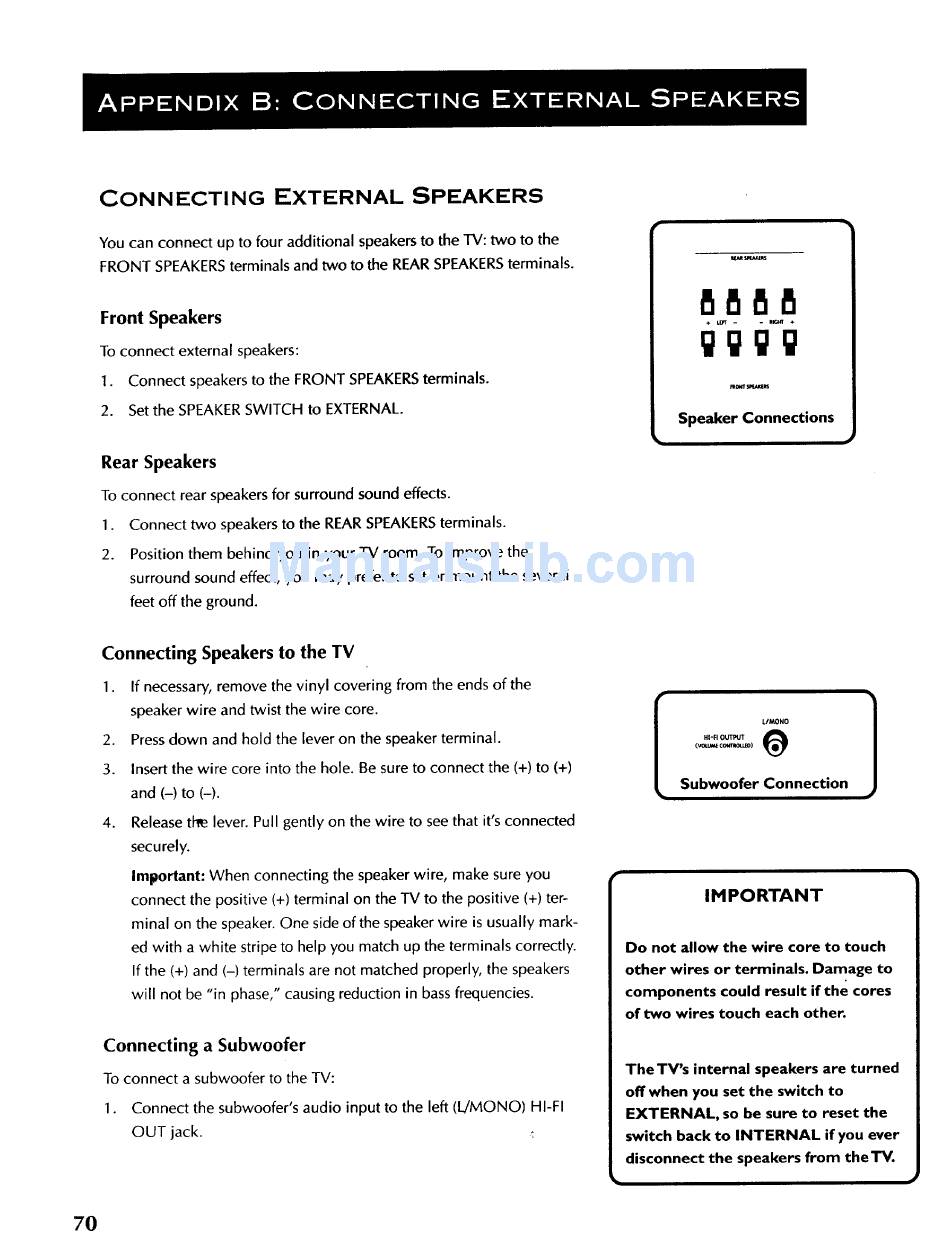

CONNECTING EXTERNAL SPEAKERS
You can connect up to four additional speakers to the TV: two to the
FRONT SPEAKERSterminals and two to the REAR SPEAKERSterminals.
Front Speakers
To connect external speakers:
I. Connect speakers to the FRONT SPEAKERSterminals.
2. Set the SPEAKERSWITCH to EXTERNAL.
8888
Rear Speakers
To connect rear speakers for surround sound effects.
1. Connect two speakers to the REAR SPEAKERSterminals.
2. Position them behind you in your TV room. To improve the
surround sound effect, you may prefer to set or mount the several
feet off the ground.
Connecting Speakers to the TV
1. If necessary, remove the vinyl covering from the ends of the
speaker wire and twist the wire core.
2. Press down and hold the lever on the speaker terminal.
3. Insert the wire core into the hole. Be sure to connect the (+) to (+)
and (-) to (-).
4. Release tl_ lever. Pull gently on the wire to see that it's connected
securely.
Important: When connecting the speaker wire, make sure you
connect the positive (+) terminal on the TV to the positive (+) ter-
minal on the speaker. One side of the speaker wire is usually mark-
ed with a white stripe to help you match up the terminals correctly.
If the (+) and (-) terminals are not matched properly, the speakers
will not be "in phase," causing reduction in bass frequencies.
Connecting a Subwoofer
To connect a subwoofer to the TV:
1. Connect the subwoofer's audio input to the left (L/MONO) HI-FI
OUT jack. .:
[
L/MONO
HI-FI OUTPIJT
(vol_lt COkl_OUlO)
Subwoofer Connection
IMPORTANT
Do not allow the wire core to touch
other wires or terminals. Damage to
components could result if the cores
of two wires touch each other.
TheTV's internal speakers are turned
off when you set the switch to
EXTERNAL, so be sure to reset the
switch back to INTERNAL if you ever
disconnect the speakers from theTV.
