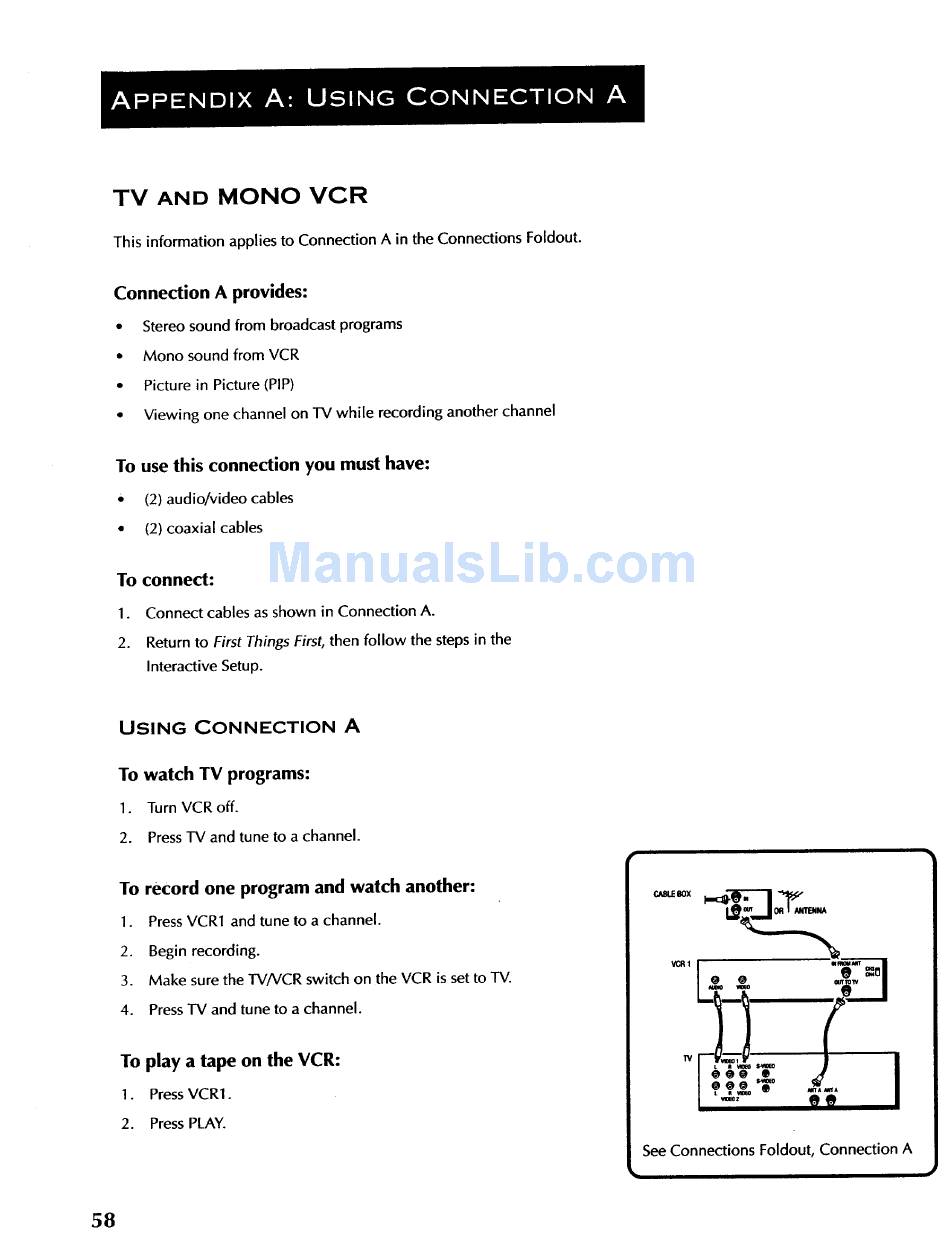

ProScan PS32130 User Manual page 61

TV AND MONO VCR
This information applies to Connection A in the Connections Foldout.
Connection A provides:
• Stereo sound from broadcast programs
• Mono sound from VCR
• Picture in Picture (PIP)
• Viewing one channel on TV while recording another channel
To use this connection you must have:
' (2) audio/video cables
• (2) coaxial cables
To connect:
I. Connect cables as shown in Connection A.
2. Return to First
Things First,
then follow the steps in the
Interactive Setup.
USING CONNECTION
A
To watch TV programs:
1. Turn VCR off.
2. PressTV and tune to a channel.
To record one program and watch another:
1. Press VCR1 and tune to a channel.
2. Begin recording.
3. Make sure the TV/VCR switch on the VCR is set to IV.
4. Press TV and tune to a channel.
To play a tape on the VCR:
1. Press VCR1.
2. Press PLAY.
13/
See Connections Foldout, Connection A
58
