Installation and Operation, cont'd

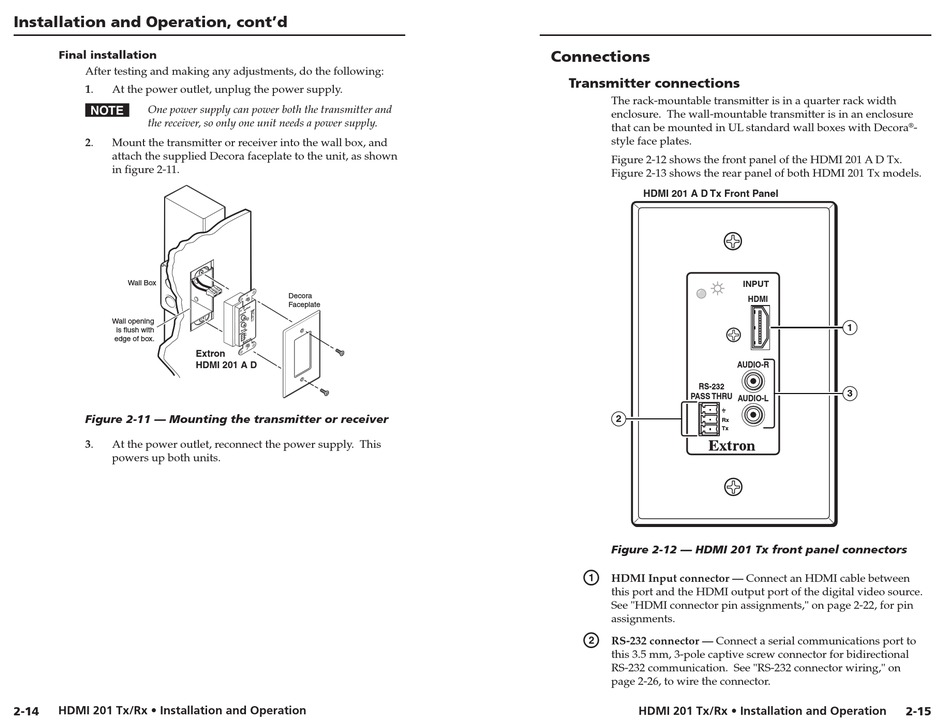

Final installation

After testing and making any adjustments, do the following:
1. At the power outlet, unplug the power supply.
N One power supply can power both the transmitter and
the receiver, so only one unit needs a power supply.
2. Mount the transmitter or receiver into the wall box, and
attach the supplied Decora faceplate to the unit, as shown
in figure 2-11.
Wall Box
Wall opening
is flush with
edge of box.
Figure 2-11 — Mounting the transmitter or receiver
3. At the power outlet, reconnect the power supply. This
powers up both units.
HDMI 201 Tx/Rx • Installation and Operation
2-14
Decora
Faceplate
U T
T P
O U M I
H D
-R
D IO
A U
-L
D IO
A U
-2 32
R S R U
TH
S S
PA Tx
Rx
Extron
HDMI 201 A D

Connections

Transmitter connections

The rack-mountable transmitter is in a quarter rack width
enclosure. The wall-mountable transmitter is in an enclosure
that can be mounted in UL standard wall boxes with Decora
style face plates.
Figure 2-12 shows the front panel of the HDMI 201 A D Tx.
Figure 2-13 shows the rear panel of both HDMI 201 Tx models.
HDMI 201 A D Tx Front Panel
RS-232
PASS THRU
2
Rx
Tx
Figure 2-12 — HDMI 201 Tx front panel connectors
a
HDMI Input connector — Connect an HDMI cable between
this port and the HDMI output port of the digital video source.
See "HDMI connector pin assignments," on page 2-22, for pin
assignments.
b
RS-232 connector — Connect a serial communications port to
this 3.5 mm, 3-pole captive screw connector for bidirectional
RS-232 communication. See "RS-232 connector wiring," on
page 2-26, to wire the connector.
HDMI 201 Tx/Rx • Installation and Operation
-
®
INPUT
HDMI
1
AUDIO-R
3
AUDIO-L
2-15
