Installation and Operation, cont'd
l
Output Audio — Plug an audio device into this pair, left and
right, of female RCA connectors (figure 2-14) for an unbalanced
stereo audio signal.

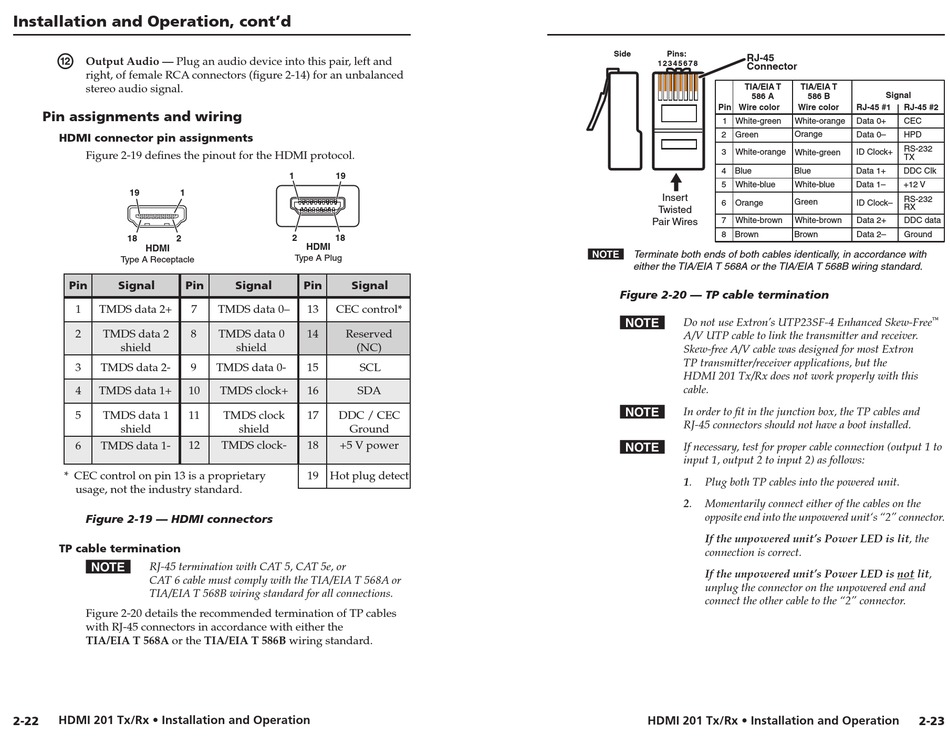

Pin assignments and wiring

HDMI connector pin assignments

Figure 2-19 defines the pinout for the HDMI protocol.
19 1
18 2
HDMI
Type A Receptacle
Pin Signal Pin
1 TMDS data 2+ 7
2 TMDS data 2 8
shield
3 TMDS data 2- 9
4 10
TMDS data 1+
5 TMDS data 1 11
shield
6 TMDS data 1- 12
* CEC control on pin 13 is a proprietary
usa g e, not the industr y standard.
Figure 2-19 — HDMI connectors

TP cable termination

N RJ-45 termination with CAT 5, CAT 5e, or
CAT 6 cable must comply with the TIA/EIA T 568A or
TIA/EIA T 568B wiring standard for all connections.
Figure 2-20 details the recommended termination of TP cables
with RJ-45 connectors in accordance with either the
TIA/EIA T 568A or the TIA/EIA T 586B wiring standard.
HDMI 201 Tx/Rx • Installation and Operation
2-22
1 19
2 18
HDMI
Type A Plug
Signal Pin Signal
TMDS data 0– 13 CEC control*
TMDS data 0 14 Reserved
shield (NC)
TMDS data 0- 15 SCL
16
TMDS clock+ SDA
TMDS clock 17 DDC / CEC
shield Ground
TMDS clock- 18 +5 V power
19 Hot plug detect
Side Pins:
RJ-45
1 2 3 4 5 6 7 8
Connector
TIA/EIA T
586 A
Pin Wire color
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
Insert
6 Orange
Twisted
7 White-brown
Pair Wires
8 Brown
N Terminate both ends of both cables identically, in accordance with
either the TIA/EIA T 568A or the TIA/EIA T 568B wiring standard.
Figure 2-20 — TP cable termination
N Do not use Extron's UTP23SF-4 Enhanced Skew-Free
A/V UTP cable to link the transmitter and receiver.
Skew-free A/V cable was designed for most Extron
TP transmitter/receiver applications, but the
HDMI 201 Tx/Rx does not work properly with this
cable.
N In order to fit in the junction box, the TP cables and
RJ-45 connectors should not have a boot installed.
N If necessary, test for proper cable connection (output 1 to
input 1, output 2 to input 2) as follows:
1. Plug both TP cables into the powered unit.
2. Momentarily connect either of the cables on the
opposite end into the unpowered unit's "2" connector.
If the unpowered unit's Power LED is lit, the
connection is correct.
If the unpowered unit's Power LED is not lit,
unplug the connector on the unpowered end and
connect the other cable to the "2" connector.
HDMI 201 Tx/Rx • Installation and Operation
TIA/EIA T
Signal
586 B
Wire color RJ-45 #1 RJ-45 #2
White-orange Data 0+ CEC
Orange Data 0– HPD
RS-232
White-green ID Clock+
TX
Blue Data 1+ DDC Clk
White-blue Data 1– +12 V
RS-232
Green
ID Clock–
RX
White-brown Data 2+ DDC data
Brown Data 2– Ground
™
2-23
