Installation and Operation, cont'd
HDMI 201 Tx Rear Panel
POWER
12V
HDMI INPUT
0.4A MAX
4 1
HDMI 201 A D Tx Rear Panel
2
O
U
T
P
5
U
T
S
1

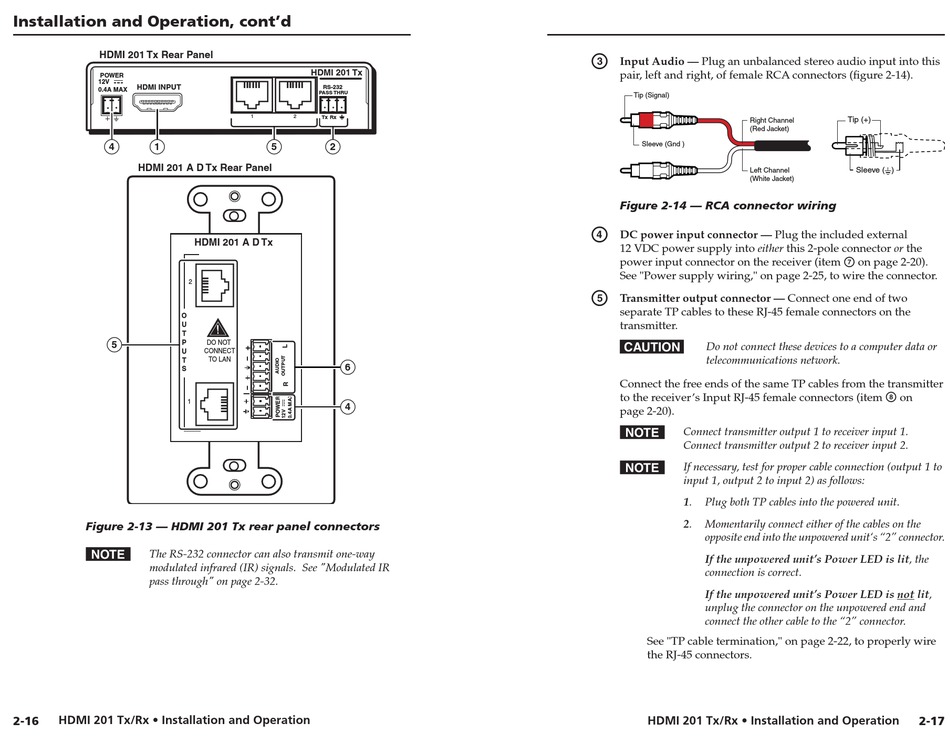

Figure 2-13 — HDMI 201 Tx rear panel connectors
The RS-232 connector can also transmit one-way
N
modulated infrared (IR) signals. See "Modulated IR
pass through" on page 2-32.
HDMI 201 Tx/Rx • Installation and Operation
2-16
HDMI 201 Tx
RS-232
PASS THRU
1 2
Tx Rx
5 2
HDMI 201 A D Tx
DO NOT
CONNECT
TO LAN
6
4
c
Input Audio — Plug an unbalanced stereo audio input into this
pair, left and right, of female RCA connectors (figure 2-14).
Tip (Signal)
Right Channel
(Red Jacket)
Sleeve (Gnd )
Left Channel
(White Jacket)
Figure 2-14 — RCA connector wiring
d
DC power input connector — Plug the included external
12 VDC power supply into either this 2-pole connector or the
power input connector on the receiver (item
See "Power supply wiring," on page 2-25, to wire the connector.
e
Transmitter output connector — Connect one end of two
separate TP cables to these RJ-45 female connectors on the
transmitter.
C Do not connect these devices to a computer data or
telecommunications network.
Connect the free ends of the same TP cables from the transmitter
to the receiver's Input RJ-45 female connectors (item
page 2-20).
Connect transmitter output 1 to receiver input 1.
N
Connect transmitter output 2 to receiver input 2.
N If necessary, test for proper cable connection (output 1 to
input 1, output 2 to input 2) as follows:
1. Plug both TP cables into the powered unit.
2. Momentarily connect either of the cables on the
opposite end into the unpowered unit's "2" connector.
If the unpowered unit's Power LED is lit, the
connection is correct.
If the unpowered unit's Power LED is not lit,
unplug the connector on the unpowered end and
connect the other cable to the "2" connector.
See "TP cable termination," on page 2-22, to properly wire
the RJ-45 connectors.
HDMI 201 Tx/Rx • Installation and Operation
Tip (+)
Sleeve ( )
g on page 2-20).
h
on
