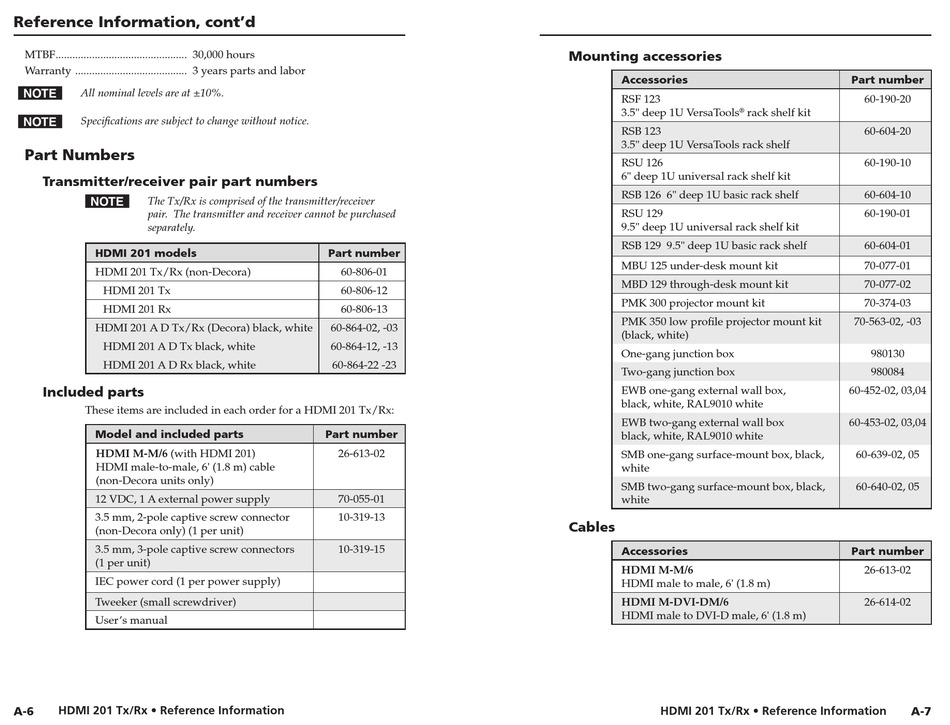

Transmitter/Receiver Pair Part Numbers; Mounting Accessories; Included Parts; Cables - Extron electronics Digital Video Transmitter and Receiver HDMI 201 Tx/Rx User Manual

Reference Information, cont'd
MTBF ............................................... 30,000 hours
Warranty ........................................ 3 years parts and labor
All nominal levels are at ±10%.
N
N Specifications are subject to change without notice.
Part Numbers

Transmitter/receiver pair part numbers

N The Tx/Rx is comprised of the transmitter/receiver
pair. The transmitter and receiver cannot be purchased
separately.
HDMI 201 models
HDMI 201 Tx/Rx (non-Decora)
HDMI 201 Tx
HDMI 201 Rx
HDMI 201 A D Tx/Rx (Decora) black, white
HDMI 201 A D Tx black, white
HDMI 201 A D Rx black, white

Included parts

These items are included in each order for a HDMI 201 Tx/Rx:
Model and included parts
HDMI M-M/6 (with HDMI 201)
HDMI male-to-male, 6' (1.8 m) cable
(non-Decora units only)
12 VDC, 1 A external power supply
3.5 mm, 2-pole captive screw connector
(non-Decora only) (1 per unit)
3.5 mm, 3-pole captive screw connectors
(1 per unit)
IEC power cord (1 per power supply)
Tweeker (small screwdriver)
User's manual
HDMI 201 Tx/Rx • Reference Information
A-6
Part number
60-806-01
60-806-12
60-806-13
60-864-02, -03
60-864-12, -13
60-864-22 -23
Part number
26-613-02
70-055-01
10-319-13
10-319-15

Mounting accessories

Accessories
RSF 123
3.5" deep 1U VersaTools rack shelf kit
®
RSB 123
3.5" deep 1U VersaTools rack shelf
RSU 126
6" deep 1U universal rack shelf kit
RSB 126 6" deep 1U basic rack shelf
RSU 129
9.5" deep 1U universal rack shelf kit
RSB 129 9.5" deep 1U basic rack shelf
MBU 125 under-desk mount kit
MBD 129 through-desk mount kit
PMK 300 projector mount kit
PMK 350 low profile projector mount kit
(black, white)
One-gang junction box
Two-gang junction box
EWB one-gang external wall box,
black, white, RAL9010 white
EWB two-gang external wall box
black, white, RAL9010 white
SMB one-gang surface-mount box, black,
white
SMB two-gang surface-mount box, black,
white

Cables

Accessories
HDMI M-M/6
HDMI male to male, 6' (1.8 m)
HDMI M-DVI-DM/6
HDMI male to DVI-D male, 6' (1.8 m)
HDMI 201 Tx/Rx • Reference Information
Part number
60-190-20
60-604-20
60-190-10
60-604-10
60-190-01
60-604-01
70-077-01
70-077-02
70-374-03
70-563-02, -03
980130
980084
60-452-02, 03,04
60-453-02, 03,04
60-639-02, 05
60-640-02, 05
Part number
26-613-02
26-614-02
A-7
