Specifications

impedance. If all connections and operations are correct, yet
the output device has no picture, switch to the other position.
Video output connector — Connect the video output
6
device, such as a projector, LCD panel, or monitor, to this
connector.
Audio input connector (MT model only) — Plug a
7
3.5 mm, mini jack audio cable from the computer's sound
card into this connector.
Audio output connector (MT model only) — Insert a
8
3.5 mm, 5-pole, captive screw audio connector into this
connector. Wire the connector as shown below.
Balanced Output
Tip
Ring
Sleeve (s)
Tip
Ring

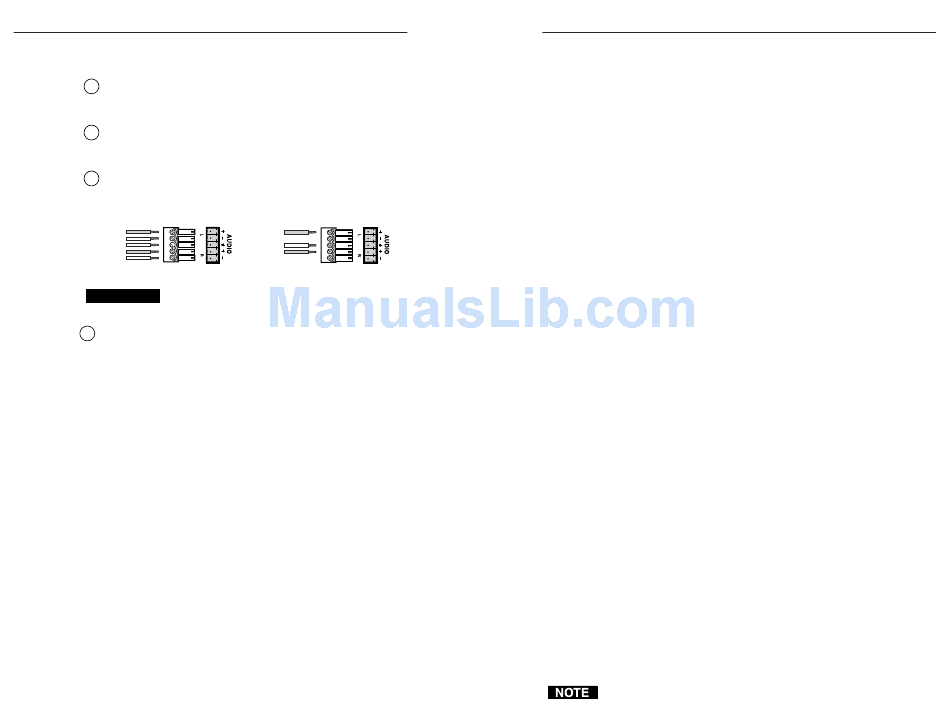

Figure 6 — Audio connector wiring
Connect the sleeve to ground (Gnd). Connecting the
CAUTION
sleeve to a negative (-) terminal will damage the
audio output circuits.
Local monitor cable assembly — Use this cable assembly
9
to connect the local monitor (video) and speaker (audio) to
the unit. The chain is used to attach the cable to the unit,
to prevent the cable from being lost or misplaced.
Specifications
Video
Gain ................................................... Unity (0dB), or (1.1dB) 110%, switch-selectable
Peaking ............................................. Selectable: 0dB or 6dB @ 100 MHz
Bandwidth ....................................... 350 MHz (-3dB)
Video input
Number/signal type ....................... 1 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs
Connectors ....................................... (1) 15-pin HD female
Nominal level .................................. 0.7V p-p for RGB
Minimum/maximum levels ......... Analog, 0.3V to 1.5V p-p
Impedance ........................................ 75 ohms
Horizontal frequency ..................... 15 kHz to 135 kHz
Vertical frequency .......................... 30 Hz to 170 Hz
Return loss ....................................... <-38dB @ 5 MHz
Maximum DC offset ...................... 1.0V
AC/DC coupling ............................ No
Video output
Number/signal type ...................... 1 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs
6 P/2 DA2xi and P/2 DA2xi MT • Specifications
Unbalanced Output
Tip
See Caution
Sleeve (s)
Tip
See Caution
(When input = 0.7V, output = 0.7V or 0.8V,
respectively.
output
Connectors ....................................... (2) 15-pin HD female
Nominal level .................................. 0.7V p-p for RGB
Minimum/maximum levels ......... Analog, 0.3V to 1.5V p-p
Impedance ........................................ 75 ohms
Return loss ....................................... <-40dB @ 5 MHz
DC offset .......................................... ±5mV maximum with input at 0 offset
Sync
Input type ..................................... RGBHV, RGBS, RGsB, RsGsBs
Output type .................................. RGBHV, RGBS, RGsB, RsGsBs
Min/Max Input level .................. 1.5V to 5.0V p-p
Output level ................................. TTL, 4V to 5V p-p unterminated
Input impedance ......................... 510 ohms
Output impedance ...................... 75 ohms or 55 ohms, switchable (output
Max. propagation delay ............. 60 ns
Max. rise/fall time ...................... 4 ns
Polarity .......................................... Positive or negative (follows input)
Audio (P/2 DA2xi MT only)
Gain ............................................... Unbalanced 0dB, balanced +6dB
Frequency Response ................... 20Hz to 20kHz, ±0.05dB
THD + Noise ................................ <0.03% @ 1kHz at nominal level
S/N ................................................ >90dB, balanced at rated max output drive
Crosstalk ....................................... <-80dB @ 1kHz, fully loaded
Stereo channel separation .......... >80dB @ 1kHz; >60dB @ 20kHz
CMRR ............................................ >67dB @ 20Hz to 20kHz
Audio input (P/2 DA2xi MT only)
Number/signal type ................... 1 stereo, unbalanced
Connectors .................................... (1) 3.5 mm female stereo jack, 2-channel;
Impedance .................................... >18 kohms unbalanced, DC coupled
Nominal level .............................. -10dBV (316mV)
Maximum level ............................ >+10dBV (3.16V) at 1% THD + N
Audio output (P/2 DA2xi MT only)
Number/signal type ................... 1 stereo, balanced/unbalanced
Connectors .................................... (1) 5-pin 3.5 mm captive screw connector
Impedance .................................... 50 ohms unbalanced, 100 ohms balanced
Gain error ..................................... ±0.1dB channel to channel
Nominal level .............................. -2dBu (632mV) balanced out
Maximum level (Hi-Z) ............... >+15dBu (4.36V), balanced at 1% THD+N,
Maximum level (600 ohms) ....... >+9dBm (2.18V), balanced at 1% THD+N,
0dBu = 0.775V, 0dBV = 1.0V
P/2 DA2xi and P/2 DA2xi MT • Specifications
1 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs
local monitor loop-through (ID bits are passed)
impedance resistors are 50 or 30 ohms)
tip (L), ring (R), sleeve (Gnd)
-10dBV (316mV) unbalanced out
with external power supply
with external power supply
7
