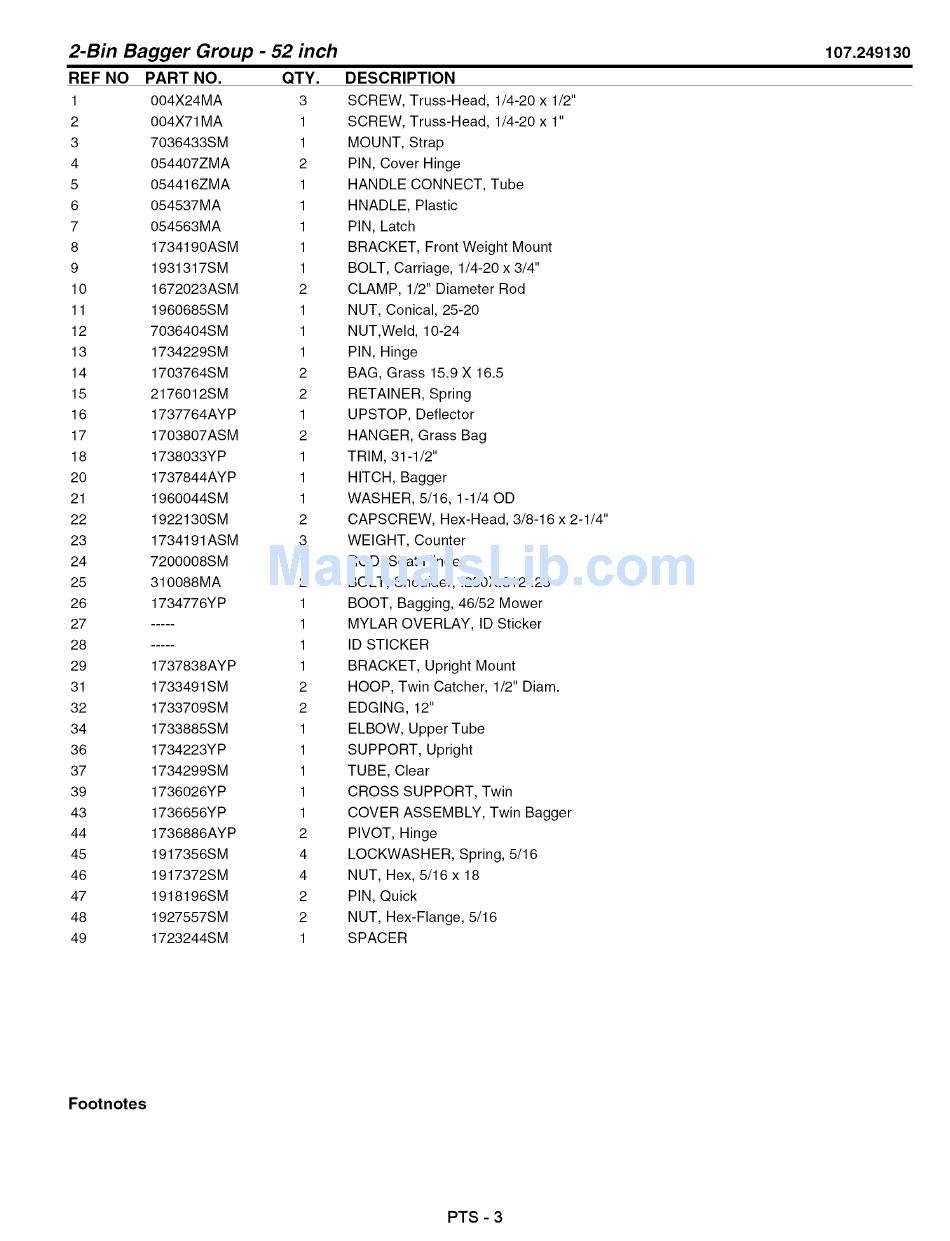

2-Bin Bagger
Group - 52 inch
107.249130
REF NO
PART NO.
QTY.
1
004X24MA
3
2
004X71MA
1
3
7036433SM
1
4
054407ZMA
2
5
054416ZMA
1
6
054537MA
1
7
054563MA
1
8
1734190ASM
1
9
1931317SM
1
10
1672023ASM
2
11
1960685SM
1
12
7036404SM
1
13
1734229SM
1
14
1703764SM
2
15
2176012SM
2
16
1737764AYP
1
17
1703807ASM
2
18
1738033YP
1
20
1737844AYP
1
21
1960044SM
1
22
1922130SM
2
23
1734191ASM
3
24
7200008SM
1
25
310088MA
2
26
1734776YP
1
27
.....
1
28
.....
1
29
1737838AYP
1
31
1733491SM
2
32
1733709SM
2
34
1733885SM
1
36
1734223YP
1
37
1734299SM
1
39
1736026YP
1
43
1736656YP
1
44
1736886AYP
2
45
1917356SM
4
46
1917372SM
4
47
1918196SM
2
48
1927557SM
2
49
1723244SM
1
DESCRIPTION
SCREW, Truss-Head,
1/4-20 x 1/2"
SCREW, Truss-Head,
1/4-20 x 1"
MOUNT, Strap
PIN, Cover Hinge
HANDLE CONNECT, Tube
HNADLE, Plastic
PIN, Latch
BRACKET, Front Weight Mount
BOLT, Carriage, 1/4-20 x 3/4"
CLAMP, 1/2" Diameter Rod
NUT, Conical, 25-20
NUT,Weld, 10-24
PIN, Hinge
BAG, Grass 15.9 X 16.5
RETAINER, Spring
UPSTOP, Deflector
HANGER, Grass Bag
TRIM, 31-1/2"
HITCH, Bagger
WASHER, 5/16, 1-1/40D
CAPSCREW,
Hex-Head, 3/8-16 x 2-1/4"
WEIGHT, Counter
ROD, Seat Hinge
BOLT, Shoulder, .250X.312.25
BOOT, Bagging, 46/52 Mower
MYLAR OVERLAY, ID Sticker
ID STICKER
BRACKET, Upright Mount
HOOP, Twin Catcher, 1/2" Diam.
EDGING, 12"
ELBOW, Upper Tube
SUPPORT, Upright
TUBE, Clear
CROSS SUPPORT, Twin
COVER ASSEMBLY, Twin Bagger
PIVOT, Hinge
LOCKWASHER,
Spring, 5/16
NUT, Hex, 5/16 x 18
PIN, Quick
NUT, Hex-Flange, 5/16
SPACER
Footnotes
PTS - 3
