Product Dimensions
Weight.......................................................................................................... 475 lbs.
Width (side-to-side) x Depth (front-to-back) x Height.............................. 42-1/2 x 24 x 62-1/2 in.
Footprint (Length x Width)......................................................................... 25 x 17-1/2 in.
Shipping Dimensions
Carton #1
Type........................................................................... Cardboard Box on Wood Skids
Content................................................................................................. Machine
Weight................................................................................................... 470 lbs.
Length x Width x Height..................................................................... 25 x 44 x 37 in.
Carton #2
Type............................................................................................. Cardboard Box
Content.................................................................................................... Stand
Weight.................................................................................................... 92 lbs.
Length x Width x Height..................................................................... 19 x 26 x 27 in.
Electrical
Power Requirement.................................................................... 220V, Single-Phase, 60 Hz
Prewired Voltage................................................................................................. 220V
Full-Load Current Rating......................................................................................... 15A
Minimum Circuit Size............................................................................................. 20A
Connection Type......................................................................................... Cord & Plug
Power Cord Included.............................................................................................. Yes
Power Cord Length.......................................................................................... 6-1/2 ft.
Power Cord Gauge............................................................................................ 14 AWG
Plug Included........................................................................................................ No
Recommended Plug Type........................................................................................ 6-20
Switch Type............................................................ Magnetic Switch w/Overload Protection
Motors
Main
Type......................................................................... TEFC Capacitor-Start Induction
Horsepower................................................................................................. 3 HP
Phase.............................................................................................. Single-Phase
Amps.......................................................................................................... 14A
Speed.................................................................................................. 1725 RPM
Power Transfer ................................................................................... Direct Drive
Bearings................................................................. Sealed & Permanently Lubricated
MODEL W1813

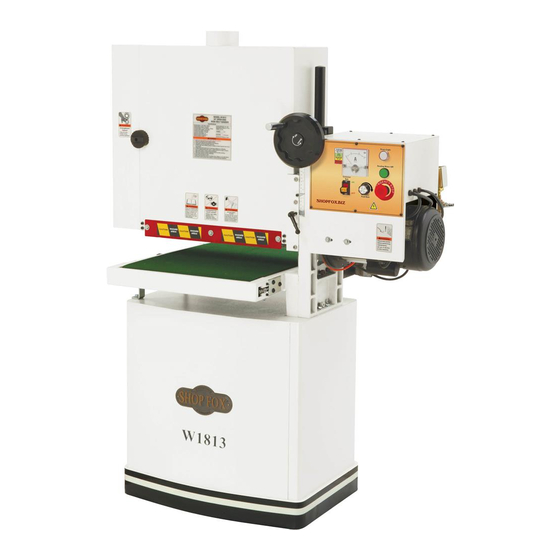

18" OPEN END WIDE BELT SANDER
®
Model W1813 Machine Specifications, Page 1 of 3
