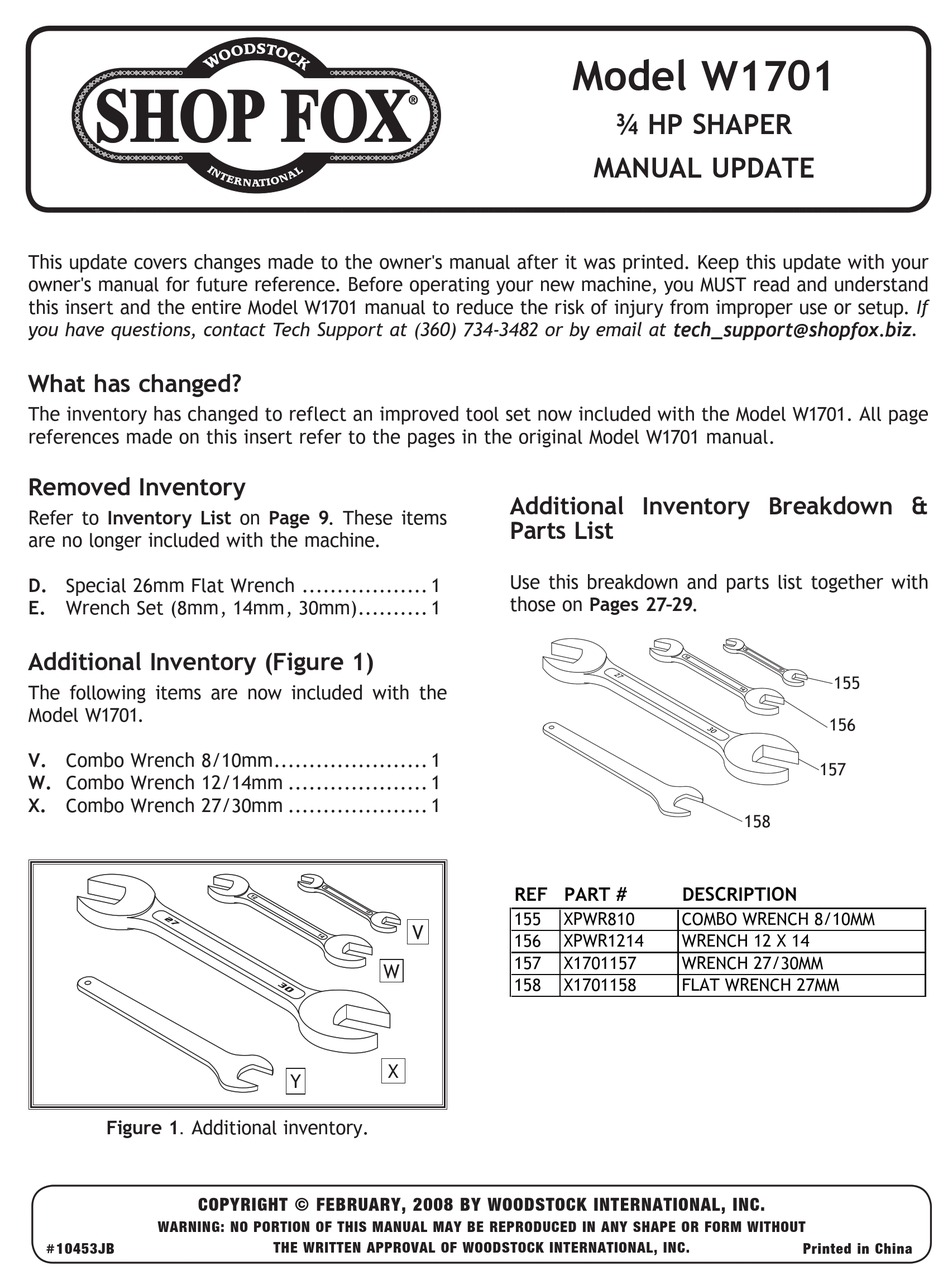

Shop fox W1701 Manual Update

This update covers changes made to the owner's manual after it was printed. Keep this update with your
owner's manual for future reference. Before operating your new machine, you MUST read and understand
this insert and the entire Model W1701 manual to reduce the risk of injury from improper use or setup. If
you have questions, contact Tech Support at (360) 734-3482 or by email at tech_support@shopfox.biz.
What has changed?
The inventory has changed to reflect an improved tool set now included with the Model W1701. All page
references made on this insert refer to the pages in the original Model W1701 manual.
Removed Inventory
Refer to Inventory List on Page 9. These items
are no longer included with the machine.
D. Special 26mm Flat Wrench .................. 1
E. Wrench Set (8mm, 14mm, 30mm) .......... 1
Additional Inventory (Figure 1)
The following items are now included with the
Model W1701.
V. Combo Wrench 8/10mm ...................... 1
W. Combo Wrench 12/14mm .................... 1
X. Combo Wrench 27/30mm .................... 1
Figure 1. Additional inventory.
COPYRIGHT © FEBRUARY, 2008 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#10453JB
V
W
X
Y
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Model W1701

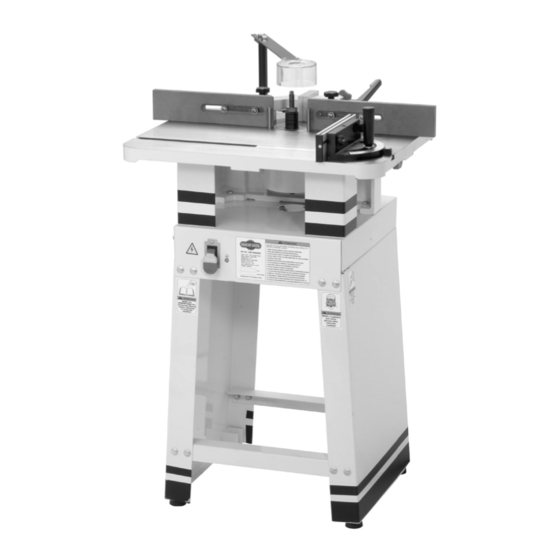

¾ HP SHAPER
MANUAL UPDATE
Additional Inventory Breakdown &
Parts List
Use this breakdown and parts list together with
those on Pages 27–29.
REF PART�# DESCRIPTION
155 XPWR810 COMBO�WRENCH�8/10MM
156 XPWR1214 WRENCH�12�X�14
157 X1701157 WRENCH�27/30MM
158 X1701158 FLAT�WRENCH�27MM
���
���
���
���
Printed in China
