Shop fox W1669 Owner's Manual

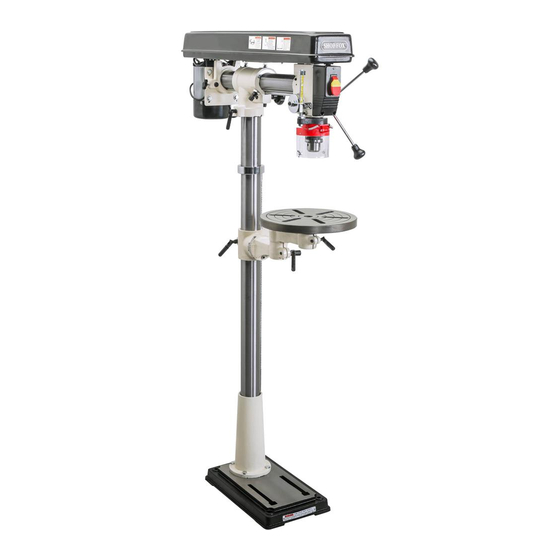

Radial drill press
Hide thumbs Also See for W1669:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
 
MODEL W1669 & W1670
RADIAL DRILL PRESS
W1669
W1670
OWNER'S MANUAL
(FOR MODELS MANUFACTURED SINCE 4/18)
Phone: (360) 734-3482 • Online Technical Support: techsupport@woodstockint.com
     COPYRIGHT © DECEMBER, 2003 BY WOODSTOCK INTERNATIONAL, INC. REVISED JULY, 2018 (ABKB)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#6218CR  Printed in China
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
184841

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W1669 and is the answer not in the manual?

Questions and answers

Related Manuals for Shop fox W1669

Summary of Contents for Shop fox W1669

  • Page 1   MODEL W1669 & W1670 RADIAL DRILL PRESS W1669 W1670 OWNER'S MANUAL (FOR MODELS MANUFACTURED SINCE 4/18) Phone: (360) 734-3482 • Online Technical Support: techsupport@woodstockint.com      COPYRIGHT © DECEMBER, 2003 BY WOODSTOCK INTERNATIONAL, INC. REVISED JULY, 2018 (ABKB) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT #6218CR  Printed in China THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. 184841...
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Troubleshooting ......... 43 Unpacking ........15 Electrical Safety Instructions ....45 Items Needed for Setup ....... 15 W1669 & W1670 Drill Press 120V Wiring ..46 Cleaning Machine ....... 16 PARTS..........47 Machine Placement ......17 Mounting to Bench (W1669) ....18 W1669 &...

  • Page 4: Introduction

    Model W1669/W1670(For Machines Mfd. Since 04/18) INTRODUCTION Woodstock.Technical.Support This machine has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation. Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product.
  • Page 5 Switch Type............. Toggle Safety Switch w/Removable Key Motors Main Horsepower....................1/2 HP Phase....................Single‐Phase Amps......................4.7A Speed....................1725 RPM Type................. TEFC Capacitor‐Start Induction Power Transfer ................... V‐Belt Drive Bearings............... Shielded & Permanently Lubricated Model W1669 Machine Specifications, Page 1 of 3...
  • Page 6 Base....................Cast Iron Paint Type/Finish..................Enamel Other Related Information Base Length..................13‐1/2 in. Base Width.................... 8‐1/2 in. Column Diameter..................2.360 in. Depth Stop Type............Threaded Rod with Positive Stop Has Work Light....................No Model W1669 Machine Specifications, Page 2 of 3...
  • Page 7 Model W1669/W1670 (For Machines Mfd. Since 04/18) MODEL W1670 1/2 HP 34" FLOOR RADIAL DRILL PRESS Product Dimensions Weight......................138 lbs. Width (side‐to‐side) x Depth (front‐to‐back) x Height........14 x 32 x 64‐1/2 in. Footprint (Length x Width)................18 x 11 in.
  • Page 8 Model W1669/W1670(For Machines Mfd. Since 04/18) Main Specifications Operation Information Type....................... Radial Swing....................... 34 in. Spindle Taper..................... JT#33 Spindle Travel..................3‐1/4 in. Max. Distance From Spindle to Column............. 5‐1/2 ‐ 17 in. Max. Distance From Spindle to Table............29‐1/2 in.

  • Page 9: Identification

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Identification Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual. Right-Side Controls Left-Side Controls A. Power Switch G. Crank Handle B.

  • Page 10: Controls & Components

    Model W1669/W1670(For Machines Mfd. Since 04/18) Controls.&.Components Refer to the following figures and descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this machine.

  • Page 11: Safety

    Model W1669/W1670 (For Machines Mfd. Since 04/18) SAFETY SAFETY For.Your.Own.Safety, Read.Manual.Before.Operating.Machine The. purpose. of. safety. symbols. is. to. attract. your. attention. to. possible. hazardous. conditions.. This. manual.uses.a.series.of.symbols.and.signal.words.intended.to.convey.the.level.of.importance.of.the. safety.messages..The.progression.of.symbols.is.described.below..Remember.that.safety.messages.by. themselves. do. not. eliminate. danger. and. are. not. a. substitute. for. proper. accident. prevention. mea- sures—this.responsibility.is.ultimately.up.to.the.operator!
  • Page 12 Model W1669/W1670 (For Machines Mfd. Since 04/18) WEARING.PROPER.APPAREL..Do not wear FORCING.MACHINERY..Do not force machine. It clothing, apparel, or jewelry that can become will do the job safer and better at the rate for entangled in moving parts. Always tie back which it was designed.

  • Page 13: Additional Safety For Drill Presses

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Additional.Safety.for.Drill.Presses Serious injury or death can occur from getting clothing, jewelry, or long hair entangled in rotating spindle or bit/cutting tool. Contact with rotating bit/cutting tool can result in severe cuts or ampu- tation of fingers.

  • Page 14: Electrical

    Model W1669/W1670 (For Machines Mfd. Since 04/18) ELECTRICAL Circuit.Requirements This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an The. machine. must. be. properly. set. up.

  • Page 15: Grounding Requirements

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Grounding.Requirements This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding provides GROUNDED 120V 5-15 RECEPTACLE a path of least resistance for electric current to travel—in order to reduce the risk of electric shock.

  • Page 16: Setup

    O. Downfeed Levers .......3 C. Base ..........1 P. Table ..........1 D. Open-Ended Wrench ......1 Q. Hex Wrenches 3, 5, 10mm (W1669) ..3 E. Rack (W1670)........1 Q. Hex Wrenches 3, 5mm (W1670) ....2 Column Ring (W1669) ......1 G. Column (W1669) ........1 R.

  • Page 17: Unpacking

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Unpacking This machine has been carefully packaged for safe transportation. If you notice the machine has been damaged during shipping, please contact your authorized This machine presents Shop Fox dealer immediately. serious injury hazards to untrained users.

  • Page 18: Cleaning Machine

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Cleaning.Machine To prevent corrosion during shipment and storage of your machine, the factory has coated the bare metal surfaces of your machine with a heavy-duty rust prevention compound. Gasoline.and.petroleum. products.have.low.flash. If you are unprepared or impatient, this compound can points.and.can.explode.

  • Page 19: Machine Placement

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Machine.Placement Weight.Load Physical.Environment Refer to the Machine.Specifications for the The physical environment where your machine is weight of your machine. Make sure that the operated is important for safe operation and the surface upon which the machine is placed will longevity of its components.

  • Page 20: Mounting To Bench (W1669)

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Mounting.to.Bench. (W1669) Number.of.Mounting.Holes........4 Hex.Bolts.size.included...... M8-1.25.x.125 Bolt The base of this machine has mounting holes that allow it to be fastened to a workbench or other mounting surface to prevent it from moving during operation and causing Flat Washer accidental injury or damage.

  • Page 21: Mounting W1670 To Mobile Base

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Mounting.W1670.to. Mobile.Base Because the drill press is top-heavy by nature, we recommend mounting it to the floor, rather than a mobile base. Drill.presses.are.top-heavy.and.must.be. securely. attached. to. a. large-footprint. If you must use a mobile base, ALWAYS mount your drill base.

  • Page 22: Assembly

    Be sure to complete all steps in the assembly procedure prior to performing the Test.Run. The W1669 comes with one geared table bracket. The W1670 comes with a geared table bracket and a table support arm, which allows the distance between the column and table to be adjusted.
  • Page 23 Model W1669/W1670 (For Machines Mfd. Since 04/18) 8. Insert the rack through the table bracket so the end that has the rack teeth cut closer to the end is pointing down (see Figure 14). 9.. Hold the rack against the worm gear and slide the table bracket and rack onto the column (see Figure.14).
  • Page 24 Model W1669/W1670 (For Machines Mfd. Since 04/18) Get. help. to. lift. the. head- stock,. or. you. may. seriously. hurt. your. back. or. drop. the. headstock.. 15. With an assistant, lift and position the headstock pocket over the column and allow the headstock to slide down until the column fully seats into the headstock (approximately 2", see Figure.18).

  • Page 25: Joining Drill Chuck & Arbor

    Model W1669/W1670 (For Machines Mfd. Since 04/18) 20. Secure chuck guard to bracket with four M4-.7 x 10 Phillips head screws and 4mm flat washers, as shown in Figure.21. Screws & Washers Depth Stop Bracket Figure.21. Chuck guard secured to depth stop bracket.

  • Page 26: Test Run

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Test.Run Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning properly. Serious. injury. or. death. can. result. from. using. this. machine. BEFORE.

  • Page 27: Operations

    Model W1669/W1670 (For Machines Mfd. Since 04/18) OPERATIONS General This machine will perform many types of operations that are beyond the scope of this manual. Many of these operations can be dangerous or deadly if performed incorrectly. The instructions in this section are written with the understanding that the operator has the necessary knowledge and skills to operate this machine.

  • Page 28: Drill Press Rpm Chart

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Drill.Press.RPM.Chart Use Figure.24.to select the optimum motor-to-spindle pulley ratio for drilling, cutting, and sanding operations. for example the above figure shows the belt in the C position on the spindle pulley and the #3 position on the motor pulley, which will give a speed of 1610 RPM.
  • Page 29 Model W1669/W1670 (For Machines Mfd. Since 04/18) ......-27-...
  • Page 30 Model W1669/W1670 (For Machines Mfd. Since 04/18) -28-...

  • Page 31: Changing Speeds

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Changing.Speeds The Model W1669 and W1670 Radial Drill Press has 5 speeds ranging from 550 to 3000 RPM. To find your need- ed drilling speed and pulley combination, refer to the Unplug. the. drill. press. before. changing.

  • Page 32: Drilling

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Drilling The Model W1669/W1670 is designed for drilling holes in wood, plastic, and metal. The basic operation of a drill press is lining up your drill bit with the intended Larger.bits.turning.at.slower.speeds.tend. hole location, turning the drill press ON, and using the to.grab.the.workpiece.aggressively..This.

  • Page 33: Installing/Removing Drill Bits

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Installing/Removing.Drill. Bits Any drill bit you install in the chuck must be tight enough that it will not come loose during operation. TURN.OFF.and.UNPLUG.the.drill.press,. Installing.a.Drill.Bit and. wait. until. all. working. parts. are. 1. DISCONNECT MACHINE FROM POWER! stopped.before.you.attempt.to.change.

  • Page 34: Adjusting Depth Stop

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Adjusting.Depth.Stop The Model W1669/W1670 has a depth stop that allows you to drill repeated non-through holes to the same depth Depth every time. The depth stop consists of a stud attached to the quill...

  • Page 35: Adjusting Table

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Adjusting.Table The Model W1669 table can be adjusted for height, angle, and location (see Figure 30). The W1670 table can also Table Rotation Lock Lever be adjusted for distance from column and rotation (see Figure 31).

  • Page 36: Adjusting Headstock

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Adjusting.Headstock To drill wide workpieces up to 34" in diameter, you can slide the headstock in and out to increase the distance between the drill chuck and the column up to 17". You can also tilt the headstock from 45°...

  • Page 37: Accessories

    Model W1669/W1670 (For Machines Mfd. Since 04/18) ACCESSORIES Drill.Press.Accessories The following Drill Press accessories may be available through your local Woodstock International Inc. Dealer. If you do not have a dealer in your area, these products are also available through online dealers.
  • Page 38 " x 29 ⁄ ". 700 lb. maximum capacity. The SHOP FOX® D2056 Tool Table is great for benchtop tools like chop saws, drill presses, planers, scroll saws, and bandsaws. Support cross braces on top provide incredible strength and capacity. Flared legs and adjustable rubber feet ensure stability and reduce machine vibration.
  • Page 39 " to ⁄ ", lettered bits from A to Z and 60 numbered bits. Housed in a rugged indexed steel case. Install the SHOP FOX® D4144—Drill Sharpener next to your bench grinder and sharpen drill bits from ⁄ " to ⁄...

  • Page 40: Maintenance

    Model W1669/W1670 (For Machines Mfd. Since 04/18) MAINTENANCE General Periodic maintenance on your Model W1669 and W1670 Radial Drill Press will ensure its optimum performance. Make a habit of inspecting your drill press after each use. Check.for.the.following.conditions.and.repair.or. replace.when.necessary. Loose or missing base mounting bolts.

  • Page 41: Service

    Model W1669/W1670 (For Machines Mfd. Since 04/18) SERVICE General This section covers the most common service adjustments or procedures that may need to be made during the life of your machine. If you require additional machine service not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: techsupport@woodstockint.com.

  • Page 42: Calibrating Depth Stop

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Calibrating.Depth.Stop The drill press comes fitted with a depth stop to use when drilling multiple holes at the same depth. The scale on this depth stop can be calibrated if it ever becomes incorrect.
  • Page 43 Model W1669/W1670 (For Machines Mfd. Since 04/18) 3. While holding the spring lock cover against the side Locking Lug Spring- of the headstock so the cover stays splined with Cover the locking lug, as shown in Figure 41, loosen the...

  • Page 44: Adjusting Quill-Shaft Screw

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Adjusting.Quill-Shaft. Screw While you may never have to adjust the quill-shaft screw, you should understand its function and know how to adjust it should you ever need to remove the quill for cleaning. This screw prevents the quill from rotating during drilling and sanding procedures, and if adjusted incorrectly, the quill may have lash or bind.

  • Page 45: Troubleshooting

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Troubleshooting The following troubleshooting tables cover common problems that may occur with this machine. If you need replacement parts or additional troubleshooting help, contact our Technical Support. Note: Before contacting Tech Support, find the machine serial number and manufacture date, and if available, your original purchase receipt.
  • Page 46 Model W1669/W1670 (For Machines Mfd. Since 04/18) Drill.Press.Operations Symptom Possible.Cause Solution 1. Remove and re-install (Page 1). Tool loose/lack of 1. Tool incorrectly installed in spindle taper. power in spindle. 2. Debris on tool or spindle taper mating sur- 2. Clean tool and spindle taper.

  • Page 47: Electrical Safety Instructions

    Model W1669/W1670 (For Machines Mfd. Since 04/18) Electrical.Safety.Instructions These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one stated in this manual, and study this section carefully.

  • Page 48: W1669 & W1670 Drill Press 120V Wiring

    Model W1669/W1670 (For Machines Mfd. Since 04/18) W1669.&.W1670.Drill.Press.120V.Wiring Motor (120V) Start Capacitor Neutral 200uF 125V Ground Ground Ground Power Switch Ground 120 VAC 5-15 Plug (Preinstalled) 120V Only -46-...

  • Page 49: Parts

    Model W1669/W1670 (For Machines Mfd. Since 04/18) PARTS W1669.&.W1670.Parts 66V2 16A-1 19-2 19-1 19-3 32-1 33-1 38-1 19-6 19-5 19-4 35-1 102-1 102-2 102-4 45A-2 102-3 45A-1 102-5 102-6 102-7 52V2 45A-3 45A-3V2 45A-4V2 -47-...
  • Page 50 Model W1669/W1670 (For Machines Mfd. Since 04/18) W1669.&.W1670.Parts.List REF PART # DESCRIPTION REF PART # DESCRIPTION X1669008 GEAR 45A-3 X1669045A-3 DEPTH STOP MOUNT X1669009 EXT RETAINING RING 10MM X1669046 FEED SHAFT X1669010 HEX NUT M8-1.25 X1669047 FEED COLLAR X1669011 LOCK LEVER M10-1.5 X 25...

  • Page 51: W1669 Table & Column

    Model W1669/W1670 (For Machines Mfd. Since 04/18) W1669.Table.&.Column 84-1 Mounting Surface -49-...
  • Page 52 Model W1669/W1670 (For Machines Mfd. Since 04/18) W1669.Table.&.Column.Parts.List REF PART # DESCRIPTION REF PART # DESCRIPTION X1669001 BASE X1669073 SET SCREW M6-1 X 10 X1669003 HEX BOLT M8-1.25 X 20 X1669074 10T GEAR X1669004 W1669 RACK X1669078 CAP SCREW M12-1.75 X 30...

  • Page 53: W1670 Table & Column

    Model W1669/W1670 (For Machines Mfd. Since 04/18) W1670.Table.&.Column 84-1 Mounting Surface -51-...
  • Page 54 Model W1669/W1670 (For Machines Mfd. Since 04/18) W1670.Table.&.Column.Parts.List REF PART # DESCRIPTION REF PART # DESCRIPTION X1670001 BASE X1670074 WORM GEAR x1670003 HEX BOLT M8-1.25 X 40 X1670080 COLUMN RING X1670004A W1670 RACK X1670083 TABLE X1670005A W1670 COLUMN X1670084 COLUMN SUPPORT ARM N/S...

  • Page 55: W1669 & W1670 Labels & Cosmetics

    REF PART # DESCRIPTION REF PART # DESCRIPTION 75V2 X1669075V2 MACHINE ID LABEL CSA V2.09.17 (W1669) 113 X1669113 READ MANUAL WARNING LABEL 75V2 X1670075V2 MACHINE ID LABEL CSA V2.09.17 (W1670) 114 X1669114 DISCONNECT POWER LABEL X1669085 EYE INJURY WARNING LABEL...
  • Page 56 -54-...
  • Page 57 Model W1669/W1670 (For Machines Mfd. Since 04/18)
  • Page 58 Fold along dotted lIne place stamp Here Woodstock international inc. p.o. box 2309 bellingham, Wa 98227-2309 Fold along dotted lIne tape along edges--please do not staple...

  • Page 59: Warranty

    Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and option, the Shop Fox machine or machine part proven to be defective for its designed and intended use, provided that the original owner returns the product prepaid to an authorized warranty or repair facility as designated by our Bellingham, Washington office with proof of their purchase of the product within two years, and provides Woodstock International, Inc.

This manual is also suitable for:
