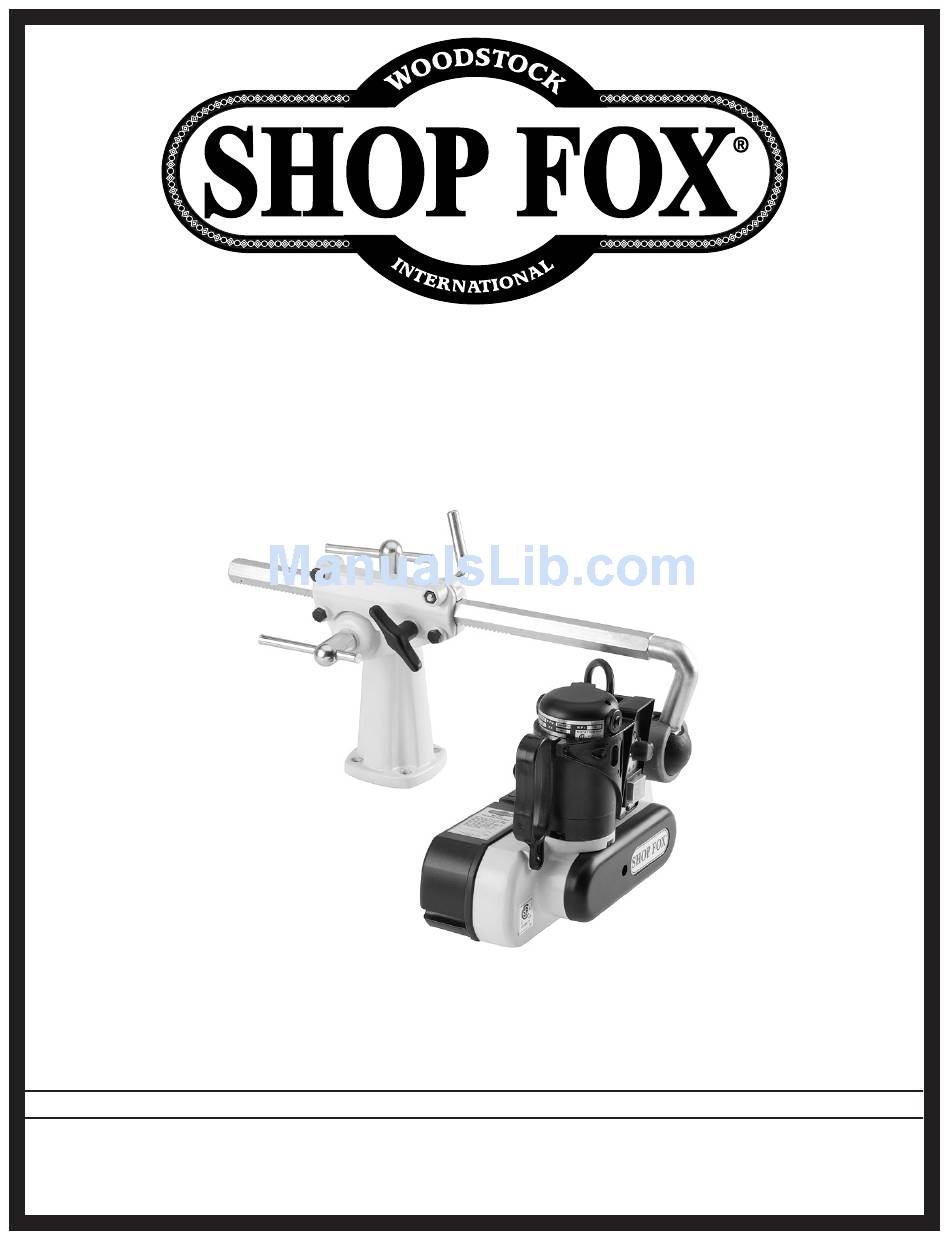

MODEL W1764
1/8 HP POWER fEEDER
OWNER'S MANUAL
Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz
COPYRIGHT © JUNE, 2007 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION Of THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR fORM WITHOUT
THE WRITTEN APPROVAL Of WOODSTOCK INTERNATIONAL, INC.
Printed in Taiwan
#9695CR
Advertisement
Table of Contents
Related Manuals for Shop fox SHOP FOX W1764
Summary of Contents for Shop fox SHOP FOX W1764
- Page 1 MODEL W1764 1/8 HP POWER fEEDER OWNER'S MANUAL Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz COPYRIGHT © JUNE, 2007 BY WOODSTOCK INTERNATIONAL, INC. WARNING: NO PORTION Of THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR fORM WITHOUT THE WRITTEN APPROVAL Of WOODSTOCK INTERNATIONAL, INC. Printed in Taiwan #9695CR...
- Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance and service of this machine/equipment. Failure to read, understand and follow the instructions given in this manual may result in serious personal injury, including amputation, electrocution or death. The owner of this machine/equipment is solely responsible for its safe use.
-
Page 3: Table Of Contents
Contents INTRODUCTION ........2 Test Run .......... 16 Woodstock Technical Support ....2 OPERATIONS ........17 SAFETY ..........6 General .......... 17 Standard Safety Instructions ....6 MAINTENANCE ........18 Additional Safety for Power Feeders ..8 General .......... 18 ELECTRICAL .......... -
Page 4: Introduction
Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product. -
Page 5: Specifications
W1764 Power Feeder MACHINE MACHINE SPECIfICATIONS SPECIFICATIONS Phone #: (360) 734–3482 • Online Tech Support: tech–support@shopfox.biz • Web: www.shopfox.biz MODEL W1764 SMALL POWER FEEDER Motor Type ....................Universal Variable Speed Horsepower ......................1/8 HP Voltage ........................110V Prewired ........................110V Phase ........................ - Page 6 W1764 Power Feeder Shipping Dimensions Type ......................... Cardboard Content ......................... Machine Weight ........................27 lbs. Length/Width/Height ..................11 x 22 x 9 in. Electrical Switch ....................On/off Variable Speed Switch Voltage ......................110V Cord Length ........................ 9 ft. Cord Gauge ......................18 gauge Recommended Breaker Size ..................
- Page 7 W1764 Power Feeder Controls and Features Rotation Horizontal Position Position Lock Lever Lock Lever Dust Port ⁄ Motor Vertical Position Lock Lever Horizontal Movement Crank Power Feeder Handle Ball Joint Lock Handle Figure 1. Controls and Features.
-
Page 8: Safety
W1764 Power Feeder SAFETY READ MANUAL BEFORE OPERATING MACHINE. FAILURE TO FOLLOW INSTRUCTIONS BELOW WILL RESULT IN PERSONAL INJURY. Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. - Page 9 W1764 Power Feeder 10. NEVER LEAVE WHEN MACHINE IS RUNNING. Turn power off and allow all moving parts to come to a complete stop before leaving machine unattended. 11. DO NOT USE IN DANGEROUS ENVIRONMENTS. DO NOT use machinery in damp, wet locations, or where any flammable or noxious fumes may exist.
-
Page 10: Additional Safety For Power Feeders
W1764 Power Feeder Additional Safety for Power Feeders READ and understand this USE this and other machinery with caution entire instruction manual and respect. Always consider safety first, before using this machine. as it applies to your individual working Serious personal injury conditions. -
Page 11: Electrical
W1764 Power Feeder ELECTRICAL The machine must be properly set up before it is safe to operate. DO NOT connect this machine to the power source until instructed to do so in the "Test Run" portion of this manual. 110V Operation The Model W1764 is wired for 110V operation. -
Page 12: Setup
W1764 Power Feeder SETUP Unpacking This machine has been carefully packaged for safe trans- portation. If you notice the machine has been damaged during shipping, please contact your authorized Shop Fox dealer immediately. Inventory Keep machine disconnected from The following is a description of the main components power until instructed otherwise. -
Page 13: Machine Placement
W1764 Power Feeder Machine Placement Cleaning Machine • Table Load: This power feed distributes Some unpainted parts of your power feed may a heavy load in a small footprint. Some be coated with oil or a waxy grease that pro- machine table tops may require additional tects them from corrosion during shipment. -
Page 14: Assembly
W1764 Power Feeder Assembly To correctly position this power feeder on your table top, T-Handle completely assemble the power feeder first, then refer to Base Mounting on Page 15. The reason for this order, is that with the power feeder unit completely assembled, it will be easier to locate where on the table top you will need to drill your base mounting holes, so you can take advantage of the full range of power feeder swing and... - Page 15 W1764 Power Feeder 9. Place the arm into the arm bracket so the teeth of Arm Bracket the gear and arm mesh as shown in Figure 8. Note: No lubrication is required for the gear or rack teeth. Oil or grease will gather debris making the horizontal adjustment of the power feeder difficult.
- Page 16 W1764 Power Feeder 15. Lightly oil the T-handle threads shown in Figure 11. Note: No lubrication is required for the arm bracket Oil Threads and the elbow clamp connection. 16. Position the arm bracket onto the elbow clamp as shown in Figure 12. 17.
-
Page 17: Base Mounting
W1764 Power Feeder Base Mounting To correctly position this power feeder on your table top, completely assemble the power feeder first, then refer this section and mount your base to the table using one of the three methods below. The reason for this order, is Bolt Feeder that with the power feeder unit completely assembled, it... -
Page 18: Test Run
W1764 Power Feeder Test Run Complete this process once you have familiarized yourself with all instructions in this manual. If during the test run a source of an unusual noise or vibration is not readily apparent, contact our technical support for help at (360) 734-3482 or contact us online at tech-support@shopfox. -
Page 19: Operations
W1764 Power Feeder OPERATIONS General This machine will perform many types of operations that are beyond the scope of this manual. Many of these operations can be dangerous or deadly if performed incor- rectly. The instructions in this section are written with the under- standing that the operator has the necessary knowledge and skills to operate this machine. -
Page 20: Maintenance
W1764 Power Feeder MAINTENANCE General Regular periodic maintenance on your machine will ensure its optimum performance. Make a habit of inspecting your machine each time you use it. Check for the following conditions and repair or replace when necessary: • Loose mounting bolts. -
Page 21: Service
If you require additional machine service not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: tech-support@shopfox.biz. MAKE SURE that your machine is... -
Page 22: Electrical
W1764 Power Feeder Electrical Model W1764 Power Feeder Wiring Diagram Fuse 3.15A Ground 250VAC Motor Speed Dial Power Feed Direction Switch Motor PC Board 110VAC 5-15 Plug Universal Brush Type Motor Fuse Motor Speed Dial Feed Direction Switch Motor Control PC Board Figure 20. -
Page 23: Parts
W1764 Power Feeder PARTS -21-... - Page 24 W1764 Power Feeder REF PART # DESCRIPTION PART # DESCRIPTION D3870 ROLLER X1764045 LOWER BALL SOCKET X1764006 SPROCKET CASE X1764046 STOPPER XPFH29M FLAT HD SCR M6-1 X 10 X1764047 UPPER BALL SOCKET X1764008 BUSHING X1764049 BALL X1764009 CASE CAP XPLW06M LOCK WASHER 10MM X1764011 GEAR KIT 25-TOOTH XPSB64M CAP SCREW M10-1.5 X 25 XPR10M EXT RETAINING RING 22MM X1764053 SHAFT X1764014 DRIVE SHAFT X1764054 T-HANDLE X1764015 GEAR 10-TEETH X1764056...
-
Page 25: Warranty Registration
W1764 Power Feeder Warranty Registration Name ___________________________________________________________________________________ Street __________________________________________________________________________________ City _________________________ State ___________________________Zip ________________________ Phone # ______________________ Email___________________________Invoice # ___________________ Model #_________Serial #______________Dealer Name__________________Purchase Date___________ The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. - Page 26 FOLD ALONG DOTTED LINE Place Stamp Here WOODSTOCK INTERNATIONAL INC. P.O. BOX 2309 BELLINGHAM, WA 98227-2309 FOLD ALONG DOTTED LINE TAPE ALONG EDGES--PLEASE DO NOT STAPLE...
- Page 27 We do not warrant that machinery complies with the provisions of any law or acts. In no event shall Woodstock International, Inc.'s liability under this warranty exceed the purchase price paid for the product, and any legal actions brought against Woodstock International, Inc.
