Shop fox W1789 Instruction Sheet

Model W1789
⁄ " Impact Wrench
1
2
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Always wear safety glasses during
use to prevent serious personal
injury!
Always disconnect tool from air to
prevent unexpected operation dur-
ing service!

Specifications

Square Drive Size.............................................
Maximum Torque.....................................230 ft/lbs.
No Load Speed........................................7,000 RPM
Air Inlet...................................................
Required PSI................................................90 PSI
Average Air Consumption.................................4 CFM
Weight........................................................6 lbs.

Inventory

A. Air Impact Wrench ........................................1
B. ⁄ " NPT Quick Connect Fitting (male) .................1
1
4

Operation

To improve tool lifespan, use a filter/lubricator/regulator
as shown in Figure 2. Otherwise, lubricate daily with a
couple drops of pneumatic tool oil directly into the air fit-
ting as shown in Figure 3.
CAUTION: Shattering hazard! Standard sockets may
break apart if used on this tool. Use sockets rated for
impact wrench use only.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#9578JM
EYE INJURY HAZARD!
INJURY HAZARD!
INJURY HAZARD!
Never exceed 120 PSI!
COPYRIGHT © JUNE, 2007 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Quick
Connector
⁄ "
1 Your
2
Tool
Quick
Coupler
⁄ " NPT
1
4

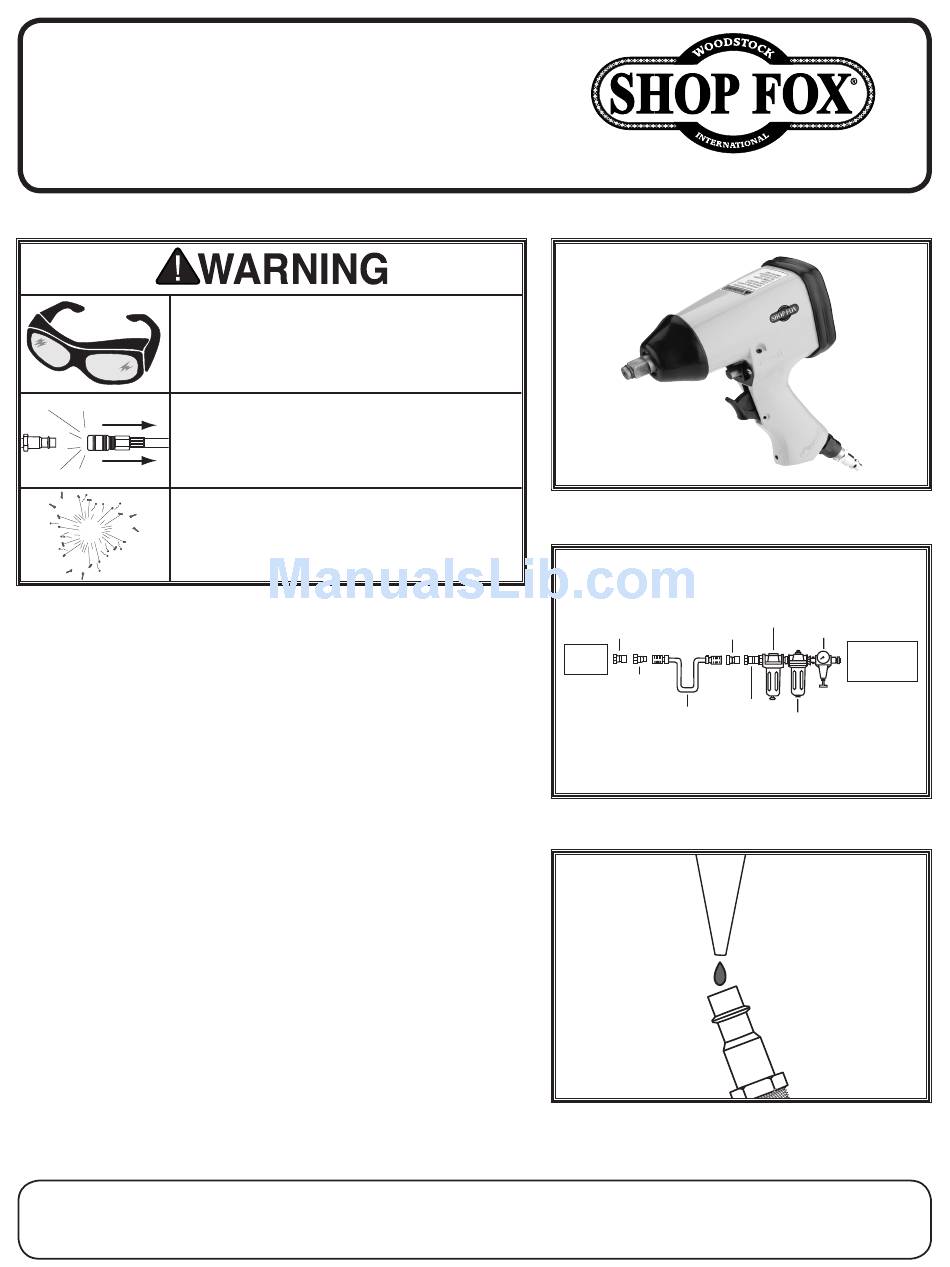

Figure 2. Installing your tool.
Figure 3. Lubricating directly into air
Figure 1. Model W1789.
Quick
Lubricator
Regulator
Connector
Quick
Air Hose
Filter
Coupler
fitting.
Printed in China
Air
Compressor
