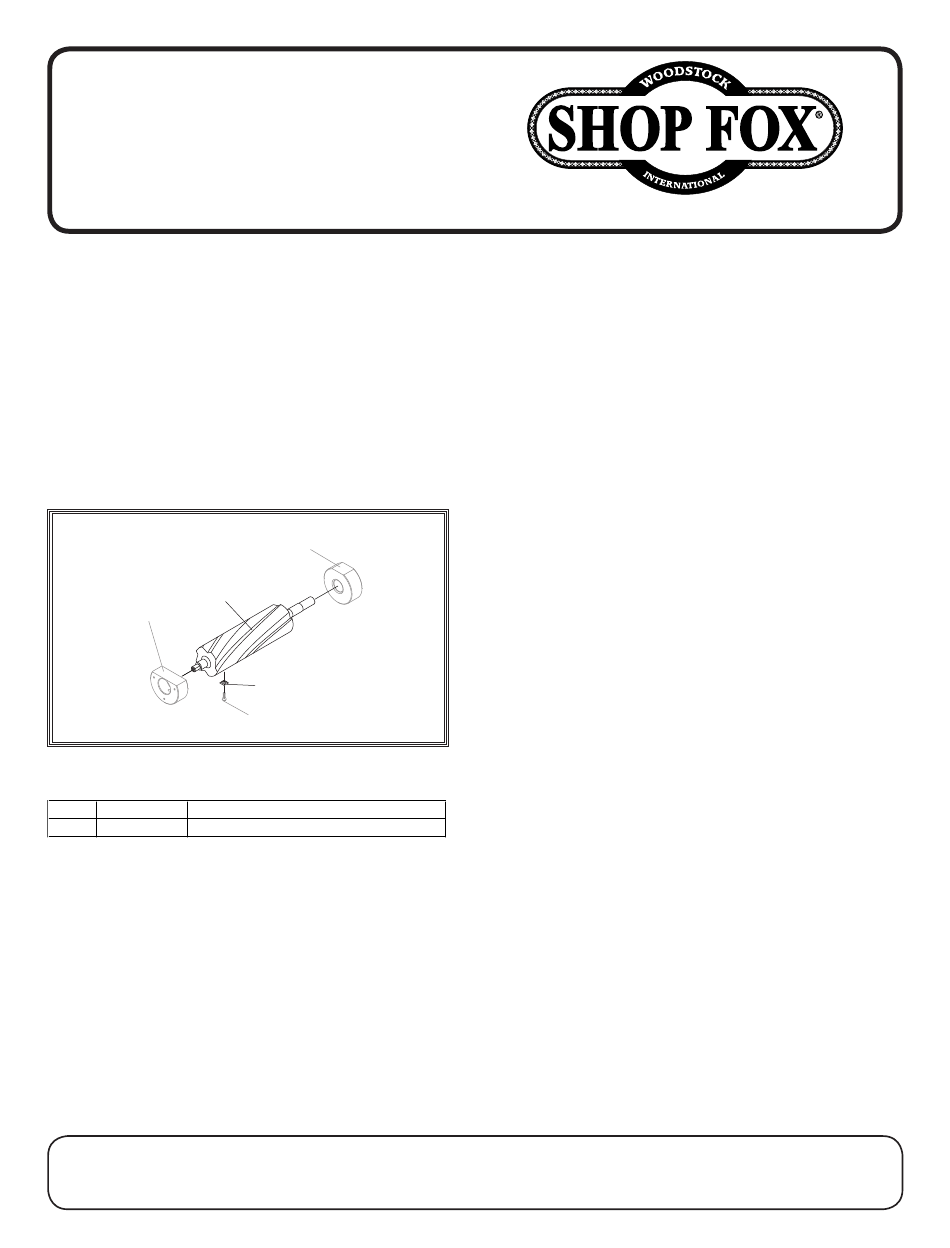

Model W1744S
***IMPORTANT UPDATE***
Applies to Models Mfd. Since 04/15
and Manual Insert Printed 05/08
Phone #: (360) 734-3482 • Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
We made the following changes to this machine since the manual insert was printed:
•
Changed spiral cutterhead and indexable inserts.
Aside from the information contained in this update, all other content in the owner's manual is
applicable and MUST be read and understood for your own safety.
IMPORTANT: Keep this update with the owner's manual for future reference. If you have any further
questions, contact our Technical Support.
Revised Parts
123V2
127
REF
PART #
DESCRIPTION
123V2 X1744S123V2 SPIRAL CUTTERHEAD V2.04.15
124V2 X1744S124V2 INDEXABLE INSERT 14 X 14 X 2 V2.04.15
COPYRIGHT © SEPTEMBER, 2015 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#17660BL
READ THIS FIRST
121
124V2
126
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in China
Advertisement
Table of Contents
Related Manuals for Shop fox W1744
Summary of Contents for Shop fox W1744
- Page 1 READ THIS FIRST Model W1744S ***IMPORTANT UPDATE*** Applies to Models Mfd. Since 04/15 and Manual Insert Printed 05/08 Phone #: (360) 734-3482 • Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz We made the following changes to this machine since the manual insert was printed: •...
- Page 2 434-4 X1741035-3 OL RELAY NHD NTH-17 14-17A 415A-5 X1744415A-5 S CAPACITOR 200M 250V 452V2 X1744452V2 ID LABEL CSA V2.07.12 (W1744) 415A-6 X1744415A-6 R CAPACITOR 20M 400V 452V2 X1744S452V2 ID LABEL CSA V2.07.12 (W1744S) 415A-7 X1744415A-7 MOTOR JUNCTION BOX V2.03.08 457V2 X1742074V2 POWER CORD 12G 3W 72"...
-
Page 3: Standard Machinery Safety Instructions
Model W1744/W1744S (Mfg. Since 7/12) SAFETY SAFETY For Your Own Safety, Read Manual Before Operating Machine The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. - Page 4 Model W1744/W1744S (Mfg. Since 7/12) WEARING PROPER APPAREL. Do not wear FORCING MACHINERY. Do not force machine. It clothing, apparel, or jewelry that can become will do the job safer and better at the rate for entangled in moving parts. Always tie back which it was designed.
-
Page 5: Additional Safety For Jointers
Model W1744/W1744S (Mfg. Since 7/12) Additional Safety for Jointers JOINTER INJURY RISKS. Familiarize yourself with INSPECTING STOCK. To reduce the risk of the main injury risks associated with jointers— kickback injuries or machine damage, always use common sense and good judgement thoroughly inspect and prepare the workpiece to reduce your risk of injury. -
Page 6: Circuit Requirements
Model W1744/W1744S (Mfg. Since 7/12) ELECTRICAL Circuit Requirements This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an adequate power supply circuit is available. If a correct circuit is not available, a qualified electrician MUST install one before you can connect the machine to power. -
Page 7: Grounding Requirements
Model W1744/W1744S (Mfg. Since 7/12) Grounding Requirements This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding provides a path of least resistance for electric current to travel—in order to reduce the risk of electric shock. -
Page 8: Wiring Diagram
Model W1744/W1744S (Mfg. Since 7/12) Wiring Diagram 230 VAC 6-20 PLUG CONTROL Ground PANEL 13no (from behind) Contactor 14no Thermal Overload Ground MAGNETIC SWITCH ASSEMBLY Start Capacitor Ground 200MFD 250VAC 230V Capacitor 20MFD MOTOR 400VAC... - Page 10 Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz The Model W1744S is the same as the Model W1744, except it has a spiral cutterhead. Besides the data sheet and parts in this insert, the content in the Model W1744 owner's manual is the same for both machines.
- Page 11 W1744S 12" Parallelogram Jointer with Spiral Cutterhead MODEL W1744S SHOP FOX 12" JOINTER WITH SPIRAL CUTTERHEAD ® Product Dimensions Weight......................884 lbs. Width (side-to-side) x Depth (front-to-back) x Height........84 x 33 x 43-1/2 in. Footprint (Length x Width)................. 44-1/4 x 18 in.
- Page 12 W1744S 12" Parallelogram Jointer with Spiral Cutterhead Main Specifications Cutting Capacities Bevel Jointing................. 0 – 45 deg. L/R Maximum Width of Cut.................. 12 in. Maximum Depth of Cut................1/8 in. Minimum Workpiece Length................14 in. Minimum Workpiece Thickness............... 1/2 in. Maximum Rabbeting Depth................
- Page 13 W1744S 12" Parallelogram Jointer with Spiral Cutterhead Other Country Of Origin ....................China Warranty ....................... 2 Years Approximate Assembly & Setup Time ..............45 Minutes Serial Number Location ............ID Label on Front of Cabinet ISO 9001 Factory ....................No CSA Certified ......................
-
Page 14: Base Breakdown
W1744S 12" Parallelogram Jointer with Spiral Cutterhead Base Breakdown 142-1 142-2... -
Page 15: Base Parts List
W1744S 12" Parallelogram Jointer with Spiral Cutterhead Base Parts List PART # DESCRIPTION PART # DESCRIPTION X1744101 CUTTERHEAD GUARD X1744143 STOP BLOCK XPFH23M FLAT HD SCR M8-1.25 X 16 XPR21M INT RETAINING RING 35MM X1744105 SPECIAL FLAT WASHER X1744145 SHAFT XPSS04M SET SCREW M6-1 X 12 XPLW06M... - Page 16 W1744S 12" Parallelogram Jointer with Spiral Cutterhead Tables Breakdown PART # DESCRIPTION PART # DESCRIPTION X1744201 TABLE (LEFT) XPSB72M CAP SCREW M10-1.5 X 30 X1744202 TABLE LIP (LEFT) XPLW06M LOCK WASHER 10MM XPLW06M LOCK WASHER 10MM X1744213 DEPTH SCALE XPSB84M CAP SCREW M10-1.5 X 35 X1744214 2 X 4 RIVET...
-
Page 17: Fence Breakdown
W1744S 12" Parallelogram Jointer with Spiral Cutterhead Fence Breakdown PART # DESCRIPTION PART # DESCRIPTION X1744301 FENCE BRACKET X1744324 SPECIAL HEX NUT M12 XPW06M FLAT WASHER 12MM X1744325 LEFT BRACKET XPLW05M LOCK WASHER 12MM X1744326 XPSB77M CAP SCREW M12-1.75 X 30 X1744327 HANDLE X1744305... -
Page 18: Stand Breakdown
W1744S 12" Parallelogram Jointer with Spiral Cutterhead Stand Breakdown 415-7 415-2 415-6 415-4 415-3 415-5 401-1 401-2 415-1 401-1 401-2 434-1 434-3 434-5 434-4 434-2... -
Page 19: Stand Parts List
W1744S 12" Parallelogram Jointer with Spiral Cutterhead Stand Parts List PART # DESCRIPTION PART # DESCRIPTION X1744S401 VENTED COVER XPW03M FLAT WASHER 6MM 401-1 XPSBS18M BUTTON HD CAP SCR M6-1 X 18 X1744426 ADAPTOR 401-2 XPW03M FLAT WASHER 6MM X1744427 LATCH X1744402 DUST HOOD... -
Page 20: Labels/Cosmetic Parts
X1744S452 MACHINE ID LABEL X1741302 CUTTERHEAD GUARD LABEL X1744S453 MODEL NUMBER LABEL XLABEL02B UNPLUG POWER LABEL 220 XPAINTSF701 PAINT FOR SHOP FOX MACHINES XLABEL15 EAR PROTECTION LABEL X1744456 CONTROL PANEL LABEL XLABEL08 READ MANUAL LABEL X1741310 TWO LINE BLACK STRIPING... - Page 80 High Quality Machines and Tools Woodstock International, Inc. carries thousands of products designed to meet the needs of today's woodworkers and metalworkers. Ask your dealer about these fine products:...
