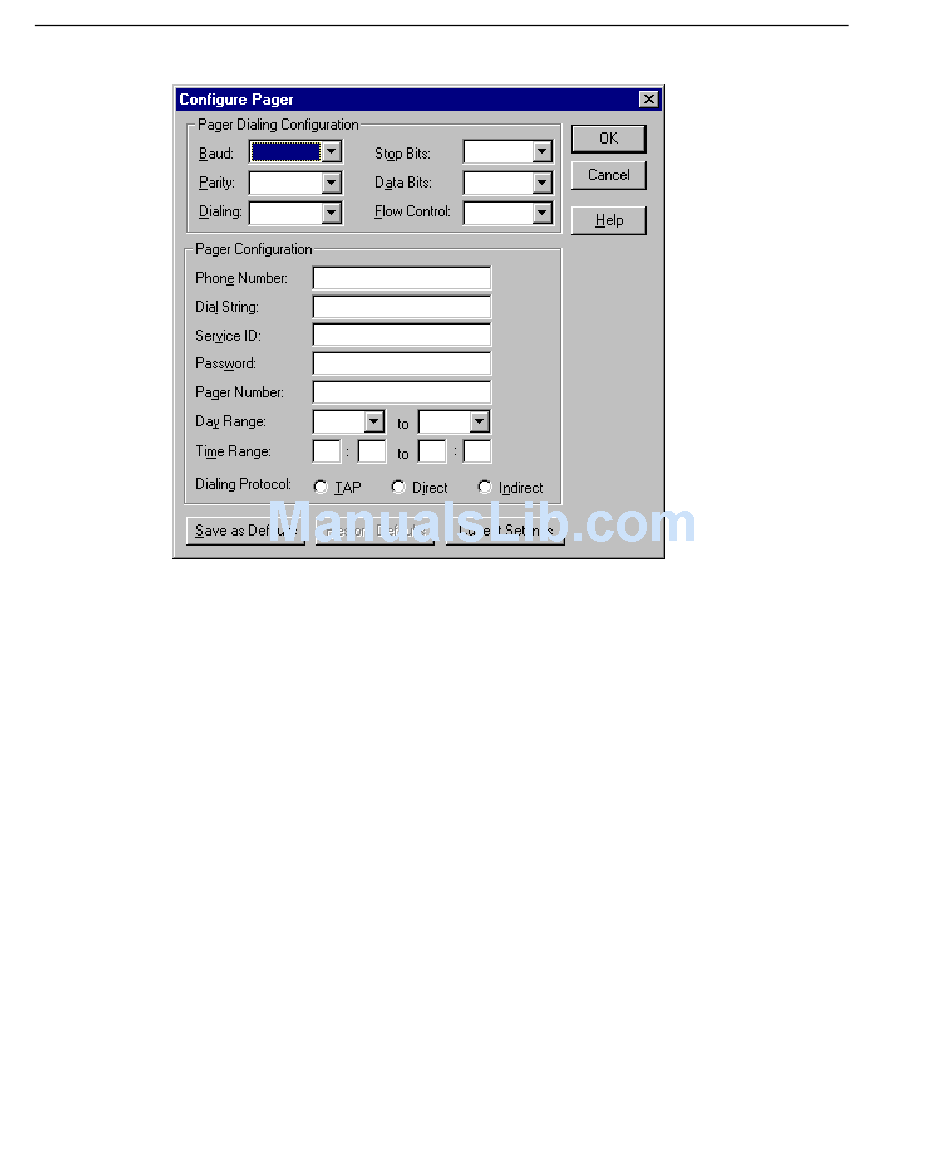

The Pager Dialing Configuration area of the dialog contains settings for the PC Card
modem in the ISM board. The Pager Configuration area of the dialog contains settings to
deliver out-band alerts.
6. Select the appropriate baud rate in the Baud box. The baud rate is the rate of
communication between the ISM board and the modem (for example, 38400 for a 28.8
KB per second modem; the larger baud rate value accounts for overhead).
7. Select the correct method of parity checking in the Parity box. The possible values are
None, Odd, or Even.
8. Select the method to use for dialing in the Dialing box. The possible values are Tone or
Pulse. If you have touch-tone phone service, select Tone; otherwise, select Pulse.
9. Select the number of stop bits in the Stop Bits box. The possible values are 1, 1.5, or 2.
10. Select the number of data bits in the Data Bits box. The possible values are 7 or 8.
11. Select the data flow control setting in the Flow Control box. The possible values are
None (software) or RTS/CTS (hardware).
NOTE The Flow Control value must be the same as the Flow Control setting in the Communications
Setting dialog (used to store modem information).
12. Type the phone number the modem will use to contact the pager in the Phone Number
box. You must type a number in the box for the pager to receive out-band alerts.
