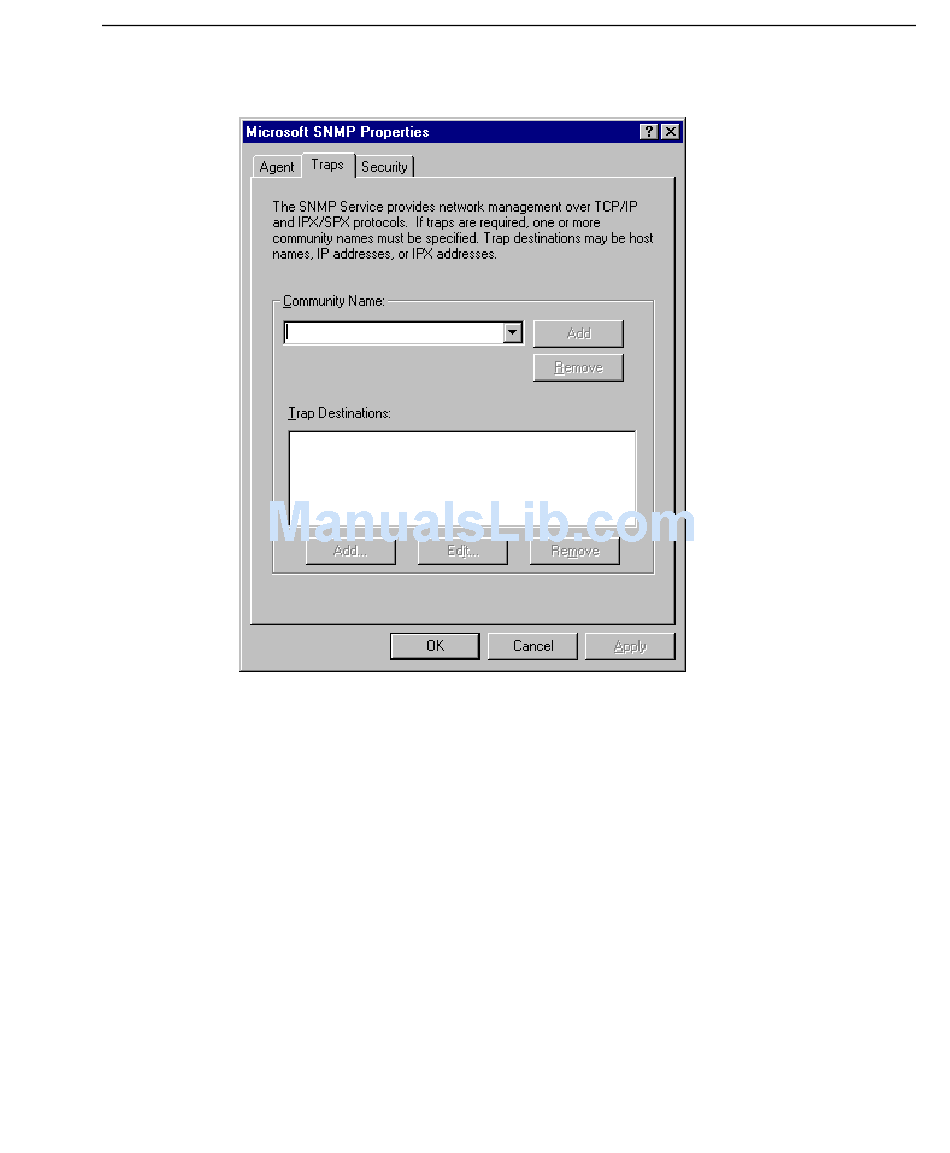

10. Click the Traps tab of the Microsoft SNMP Properties dialog.
11. In the Community Name box, type public.
12. Click Add next to the Community Name box to add public to the community names list.
13. Click Add under the Trap Destinations box to add the IP address for public to the Trap
Destinations address list.
14. If you will be installing ISM software on more than one monitoring console system,
repeat Step 13 for each monitoring console.
15. Click OK to close Microsoft SNMP Properties dialog; then click OK to close the
Network dialog.
16. Click No when prompted to restart the system. You will restart the system after you
install ISM software.
NOTE You can change the SNMP configuration at any time. To do so, open Network in the Control
Panel, select SNMP Service from the Services tab list, and click Properties.
