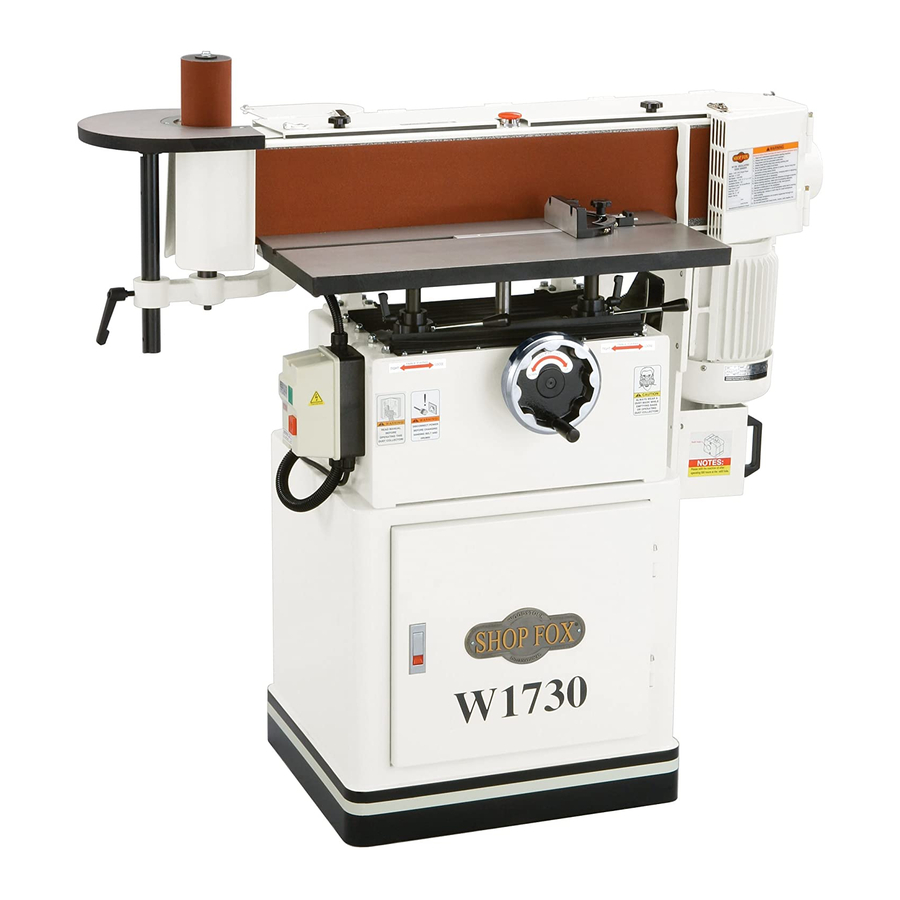

Osc. edge sander
Hide thumbs Also See for SHOP FOX W1730:

Advertisement

Product Dimensions

Weight.......................................................................................................... 396 lbs.
Width (side-to-side) x Depth (front-to-back) x Height................................... 50-1/2 x 23 x 49 in.
Footprint (Length x Width).................................................................... 22-1/2 x 19-1/2 in.

Shipping Dimensions

Type....................................................................................................... Wood Crate
Content........................................................................................................ Machine
Weight.......................................................................................................... 443 lbs.
Length x Width x Height........................................................................... 30 x 48 x 42 in.

Electrical

Power Requirement.................................................................... 240V, Single-Phase, 60 Hz
Prewired Voltage................................................................................................. 240V
Full-Load Current Rating........................................................................................... 9A
Minimum Circuit Size............................................................................................. 15A
Connection Type......................................................................................... Cord & Plug
Power Cord Included.............................................................................................. Yes
Power Cord Length.............................................................................................. 10 ft.
Power Cord Gauge............................................................................................ 14 AWG
Plug Included....................................................................................................... Yes
Included Plug Type............................................................................................... 6-15
Switch Type............................................................ Magnetic Switch w/Overload Protection

Motors

Main
Type......................................................................... TEFC Capacitor-Start Induction
Horsepower................................................................................................. 2 HP
Phase.............................................................................................. Single-Phase
Amps........................................................................................................... 9A
Speed.................................................................................................. 1792 RPM
Power Transfer ................................................................................... Direct Drive
Bearings............................................................... Shielded & Permanently Lubricated

Main Specifications

Operation Information

Sanding Belt Speed.................................................................................. 3150 FPM
Sanding Belt Oscillations.............................................................................. 3/4 in.
Sanding Belt Length...................................................................................... 89 in.
Sanding Belt Width........................................................................................ 6 in.
Sanding Belt Tilt................................................................................... 0 – 90 deg.
MODEL W1730
SHOP FOX
OSC. EDGE SANDER
®
Model W1730 Machine Specifications, Page 1 of 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHOP FOX W1730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shop fox SHOP FOX W1730

  • Page 1 MODEL W1730 SHOP FOX OSC. EDGE SANDER ® Product Dimensions Weight......................396 lbs. Width (side-to-side) x Depth (front-to-back) x Height........50-1/2 x 23 x 49 in. Footprint (Length x Width)..............22-1/2 x 19-1/2 in. Shipping Dimensions Type....................... Wood Crate Content......................Machine Weight......................
  • Page 2 Table Information Table Length..................26-7/8 in. Table Width....................12 in. Table Thickness..................1-1/4 in. Table Travel................... 3-3/4 in. Floor To Table Height..............35-3/4 – 39-1/2 in. End Table Length................... 11-1/2 in. End Table Width..................10 in. End Table Thickness..................3/4 in. End Table Travel..................
