Shop fox W1734 Instructions

Introduction

The Model W1734 is intended for use with a dust
collection system or a Shop Vac
with at least a 2 ⁄ " inlet size. Note—Inlet sizes
1
2
smaller than this will not allow the Model
W1734 to work as designed.

Specifications

• Table Size ..............................15" x 25"
• Dust Port Size .............................. 2
• Minimum Dust Collector Inlet Size ...... 2
• Overall Size ...............15" D x 25" L x 5" H
• Weight ...................................... 8 LBS

Connection

Connect your downdraft sanding table to your
dust collection system or Shop Vac
uum with a 2 ⁄ " dust hose and hose clamp, as
1
2
shown in Figure 2.

Operation

To use the downdraft table, simply start your
dust collector or Shop-Vac
sand your workpiece on the table, as shown in
Figure 3.

Cleaning

Your table surface may be cleaned with a damp
rag. If your table surface gets gummy from wood
pitch, you can use a non-corrosive blade cleaner
like Oxisolv to easily remove it without harming
®
the tabletop surface. DO NOT clean with prod-
ucts that will harm the paint on the table surface
like brake parts cleaner, acetone, or gasoline.
Customer Service
For questions contact Woodstock International
Technical Support at (360) 734-3482, or send e-mail
to: tech-support@shopfox.biz.
Downdraft Sanding Table
-style vacuum
®
⁄ "
1
2
⁄ "
1
2
-style vac-
®
-style vacuum and
®
Model W1734

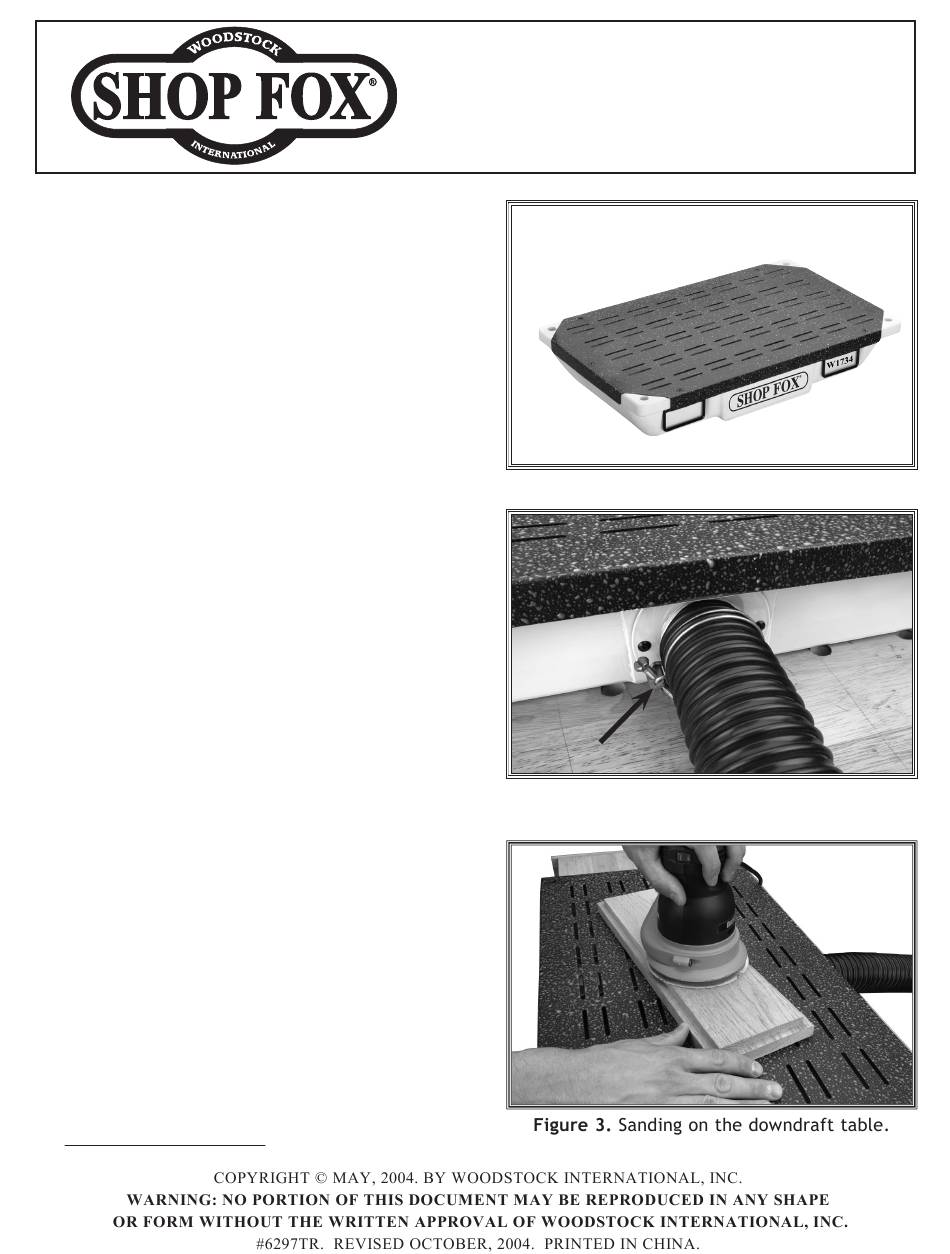

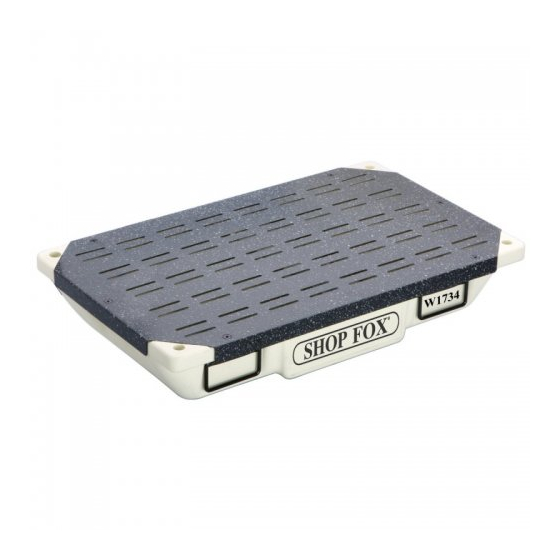

Figure 1. Model W1734.
Figure 2. Dust port connected to dust
collection system.
