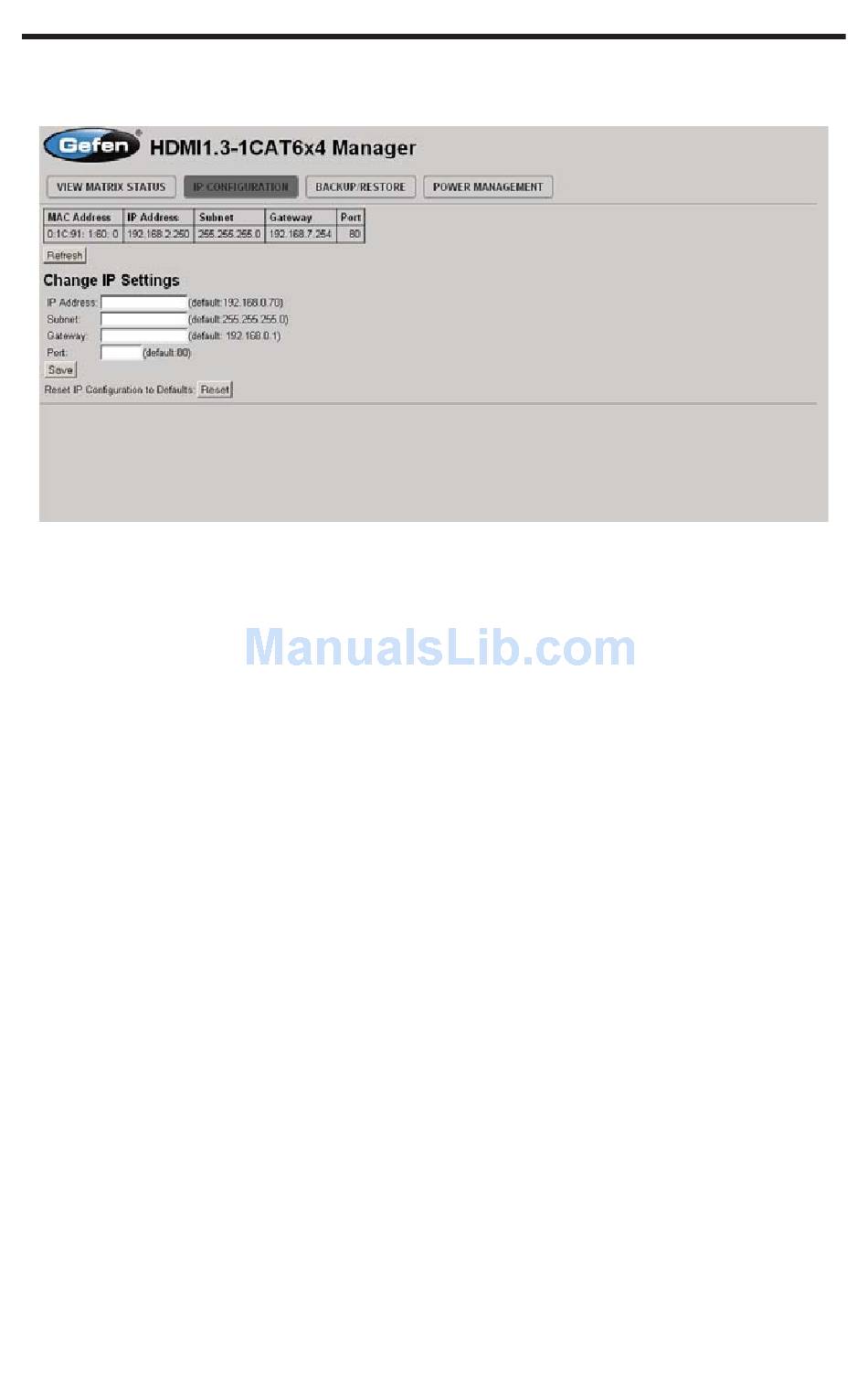

The IP CONFIGURATION page is used to set the IP settings that will be used to
access the Web interface. The following items can be confi gured from this menu.
•
IP Address (Default: 192.168.0.70)
•
Subnet (Default: 255.255.255.0)
•
Gateway (192.168.0.1)
•
Port (Default: 80)
To change these settings follow the steps below.
1.
Enter the desired network information into the fi elds provided.
2.
Press the "Save" button to initiate the change(s).
Note: After this command is complete the VIEW MATRIX STATUS page will
be displayed. Settings made on this page will not take effect until the unit is
restarted: Disconnect power from the unit and reconnect power for changes to
take effect.
At anytime, the Reset button can be pressed to return the IP settings to their
defaults.
IP CONTROL
IP CONFIGURATION
26
