Summary of Contents for Gefen EXT-HDMI1.3-1FO

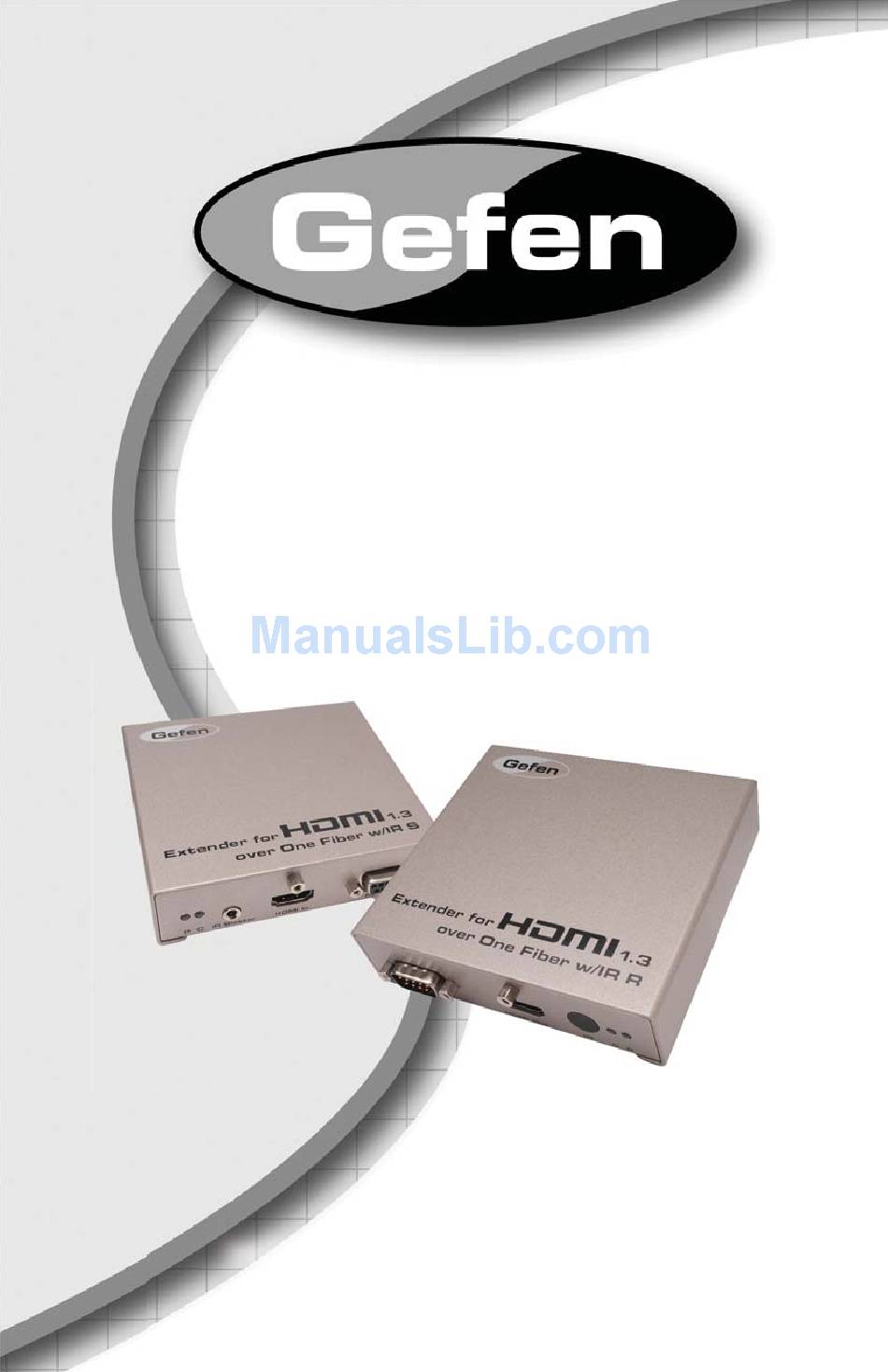

  • Page 1 ® Extender for HDMI 1.3 Over One Fiber with IR EXT-HDMI1.3-1FO User’s Manual www.gefen.com...
  • Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Extender for HDMI 1.3 Over One Fiber with IR is a trademark of Gefen, LLC HDMI™...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Operation Notes Features / Package Includes Sender Panel Descriptions Receiver Panel Descriptions Connecting and Operating the Extender EDID Management and Fiber Calibration Service Switch Guide 10 Troubleshooting 11 Specifi cations 12 Warranty...
  • Page 4: Introduction

    HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. The Gefen Extender for HDMI 1.3 Over One Fiber with IR This HDMI, RS-232 and IR Extender transmits 1080p Full HD in Deep Color and multi-channel digital audio up to 1000 feet (330m) over a single small strand of fi...
  • Page 5: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE EXTENDER FOR HDMI 1.3 OVER ONE FIBER WITH IR • Use one SC terminated multi-mode fi ber optic cable to operate the HDMI 1.3 Over One Fiber with IR. • 1080p video may be extended up to 1000 feet (300m), depending on the type of fi...
  • Page 6: Features / Package Includes

    FEATURES Features • Immune to electro-magnetic interference (EMI) • Transmits HDMI 1.3 audio/video at full bandwidth • Extends HDMI and RS-232 up to 1000 feet (300m) • Delivers highest quality signal of any HDMI extension method • Supports video resolutions up to 1080p60,1920 x 1200 and 2K •...
  • Page 7: Sender Panel Descriptions

    SENDER PANEL DESCRIPTIONS Front Panel HDMI Input RS-232 Input IR Blaster Power LED Output Port Indicator Calibration LED Indicator Back Panel 5V DC Power Input SC Fiber Optic Port...
  • Page 8: Receiver Panel Descriptions

    RECEIVER PANEL DESCRIPTIONS Front Panel HDMI IR Receiver Output RS-232 Power LED Output Indicator Calibration LED Indicator Back Panel SC Fiber 5V DC Power Input Optic Port IR extender Port...
  • Page 9: Connecting And Operating The Extender

    Connect the RS-232 source to the Extender for HDMI 1.3 Over One Fiber with IR sender unit’s RS-232 input port using the supplied DB-9 serial cable. For IR repeater functionality, please connect the Gefen IR Emitter (sold separately, part # EXT-2IREMIT) into the Extender for HDMI 1.3 Over One Fiber with IR sender at the mini-jack labelled “IR Blaster.”...
  • Page 10 EDID MANAGEMENT EDID Modes The Extender for HDMI1.3 Over One Fiber with IR features automatic and manual EDID adjustments to maximize compatibility of all attached devices. First it is necessary to understand EDID and what it is used for. EDID. What is it and what is it used for? Under normal circumstances, source devices will require information about a connected display device to assess what video resolutions and other features are compatible with the output device.
  • Page 11: Edid Management And Fiber Calibration

    EDID MANAGEMENT AND FIBER CALIBRATION Continued from the previous page EDID Mode Selection EXTERNAL MODE: In EXTERNAL mode, the Extender for HDMI 1.3 Over One Fiber With IR uses EDID collected during initial power-up from the display device. To activate this mode, make sure that the EDID Mode switch is in the OFF position (see page 9 for instructions).
  • Page 12: Service Switch Guide

    SERVICE SWITCH GUIDE Exposed DIP Switch Bank Underneath the Sender and Receiver units Underneath the Extender for HDMI 1.3 Over One Fiber With IR Sender and Re- ceiver units there is a bank of small confi guration switches known as DIP (Dual Inline Package) Switches.
  • Page 13: Troubleshooting

    TROUBLESHOOTING What to do if Calibration fails: • As long as both Sender and Receiver have not performed successful calibra- tion, the indicator LEDs will both be RED. This also occurs when the Sender and Receiver are not connected properly by fi ber. In these instances, check connections carefully and cycle the power on both ends to try again.
  • Page 14: Specifications

    SPECIFICATIONS Video Amplifi er Bandwidth ................ 225 MHz Maximum Resolutions Supported: ........1080p60, 1920x1200, 2K Deep Color Support: ...............8-bits to 12-bits Input Video Signal ................1.2 Volts p-p Input DDC Signal ................5 Volts p-p (TTL) HDMI Input/Output Connector ............Type A, 19 pin RS-232C Input/Output Connector..............DB9 LED Indicator (power ON/OFF):............1 LED (red) LED Indicator (Fiber Calibration):............1 LED (red)
  • Page 15: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 17 Rev X8 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentv.com support@gefen.com...
