Summary of Contents for Gefen EXT-HDMI1.3-CAT5-ELR

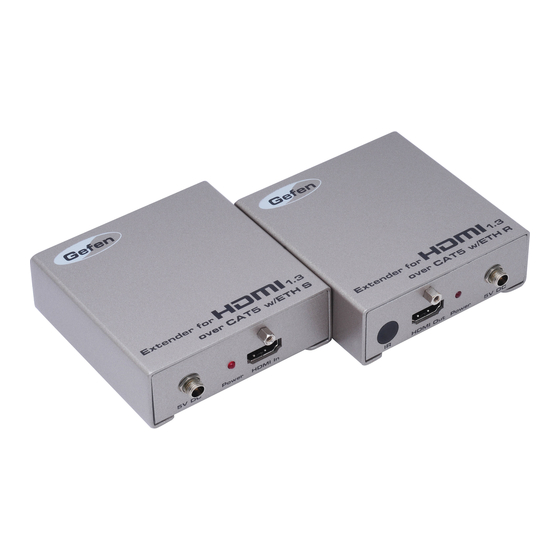

- Page 1 ® Extender for HDMI 1.3 over CAT5 with Ethernet EXT-HDMI1.3-CAT5-ELR User’s Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Extender for HDMI1.3 over CAT-5 with Ethernet is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Descriptions Receiver Panel Descriptions Connecting and Operating the EXT-HDMI1.3-CAT5-ELR Network Cable Wiring Diagram Mounting Plate Installation Terminology 10 Specifi cations 11 Warranty... -
Page 4: Introduction
IR Blaster (sold separately). How It Works Connect the Gefen Extender for HDMI 1.3 over CAT5 with Ethernet sender unit to the A/V and Ethernet source devices such as infrastructure, routers and switches using short HDMI and CAT5 cables. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE EXTENDER FOR HDMI 1.3 OVER CAT5 WITH ETHERNET • The Extender for HDMI 1.3 over CAT5 with Ethernet units are housed in a metal box for better RF shielding. • CAT-5 cables should not exceed 330 feet. -
Page 6: Features
FEATURES Features • Extends HDMI1.3 at 1080p60 over Ethernet up to 330 feet along with Ethernet and IR commands • Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the source devices •... -
Page 7: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Sender Front Panel HDMI Input 5V DC Power Supply from A/V Input source Power LED Indicator Sender Back Panel CAT5 Link CAT5 Ethernet IR Blaster 3.5mm Connector to Input Jack Connector (IR Blaster sold Receiver separately) -
Page 8: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Receiver Front Panel HDMI 5V DC Locking IR eye Output Power Supply for receiving to Display Input commands from Power LED remote Indicator Receiver Back Panel IR Extender 3.5mm Input Jack CAT5 Ethernet CAT5 Link Connector Connector to Sender... -
Page 9: Connecting And Operating The Ext-Hdmi1.3-Cat5-Elr
CONNECTING AND OPERATING THE EXT-HDMI1.3-CAT5-ELR The Extender for HDMI 1.3 over CAT5 with Ethernet has two parts, a sender unit and a receiver unit. Position the sender unit near the HDMI source and the receiver near the Display. Connect the HDMI source to the sender with the provided locking HDMI cable. -
Page 10: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 11: Mounting Plate Installation
MOUNTING PLATE INSTALLATION Mounting Plate Installation Remove the rubber feet covering the screws off the bottom of the unit. Remove the screws. Line up the mounting plates and screw it on to the unit. -
Page 12: Terminology
TERMINOLOGY CAT-5 Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair type cable designed for high signal integrity. The actual standard defi nes specifi c electrical properties of the wire, but it is most commonly known as being rated for its Ethernet capability of 100 Mbit/s. -
Page 13: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ................1.2 Volts p-p Input DDC Signal ................. 5 Volts p-p (TTL) Max. Video Resolution Supported ......1080p60 / 1920x1200@60 Hz Max. Ethernet Data Transfer Rate............100 Mbps Ethernet Packet Transmission Mode (Duplex): ..........Full HDMI Input/Output Connector Type ........ -
Page 14: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 16 Rev X9 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
