Summary of Contents for Gefen EXT-HDMI1.3-1CAT6

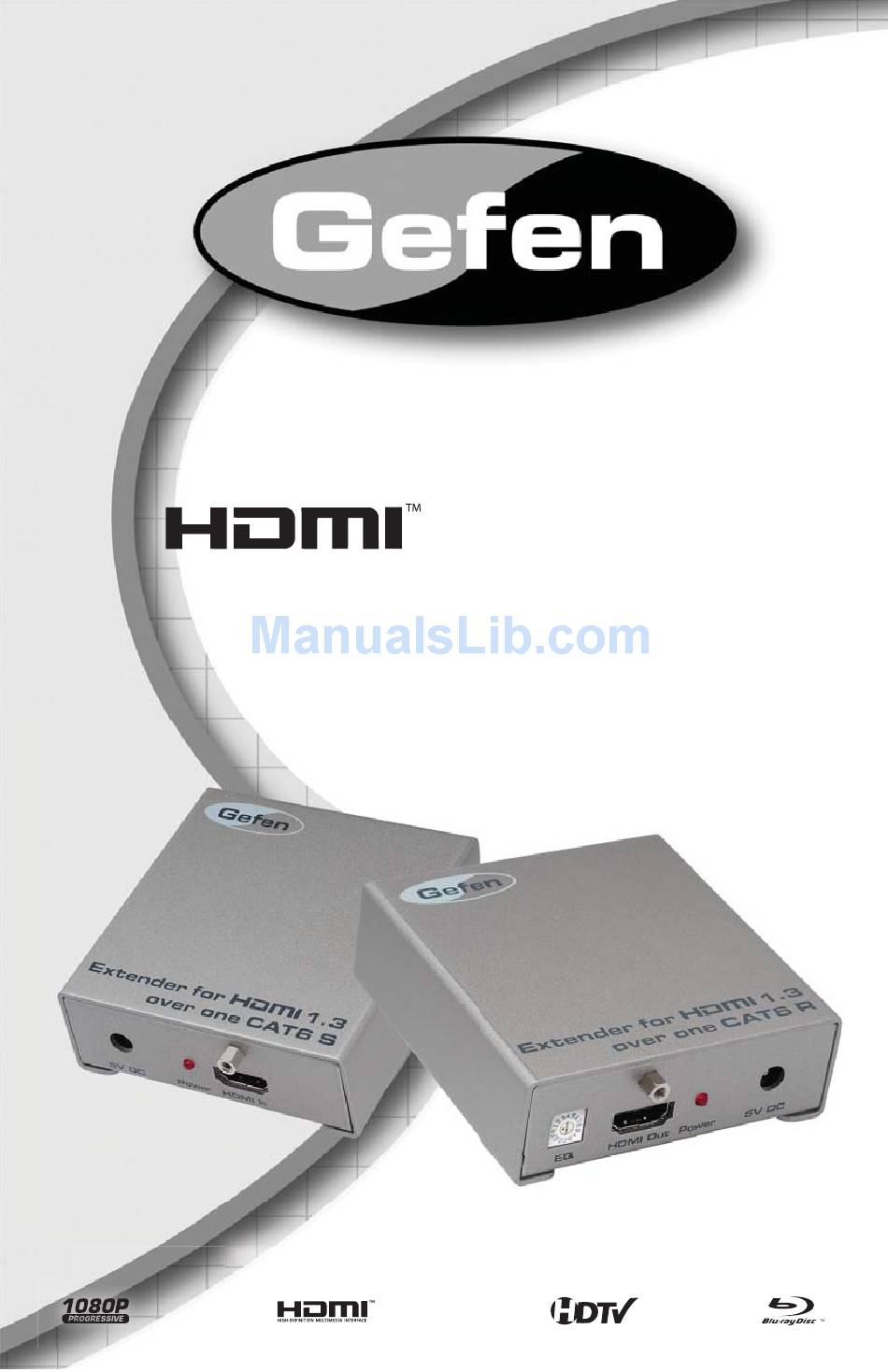

- Page 1 Extender for 1.3 over one CAT-6 EXT-HDMI1.3-1CAT6 User Manual www.gefen.com www gefen com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Extender for HDMI 1.3 over one CAT6 is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The Extender DIP Switch Confi guration 11 Network Cable Wiring Diagram 12 Specifi cations 13 Warranty... -
Page 4: Introduction

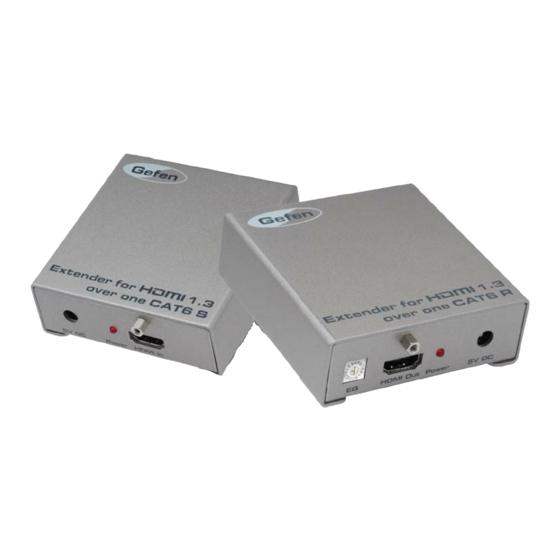

How It Works The Gefen Extender for HDMI 1.3 over one CAT6 system consists of send and receive units. The HDMI source (set-top box, DVD player, or gaming console) connects to the sender unit with the supplied 6-foot HDMI cable. The receiver unit connects to an HDTV display. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE EXTENDER FOR HDMI 1.3 OVER ONE CAT6 • The Extender for HDMI 1.3 over one CAT6 was designed for use with high quality CAT-6a (augmented) cabling. This unit will either not perform to specif cation or refuse to operate completely if cabling other than CAT-6a is used. -
Page 6: Features
FEATURES Features • Flexible extension of high-bandwidth HDMI 1.3 thanks to inexpensive and widely-available CAT6 cable • Audio and video are transmitted digitally over the CAT6 cable for zero signal loss • Single Link Range (maximum resolution): 1080p/60, 12-bit color depth •... -
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel... -
Page 8: Sender Panel Descriptions
HDMI Input With Mono•LOK Secure Connector This input will accept a single HDMI source for extension. This input features a Mono•LOK connector (Gefen part# CAB-HDMI-LCK-XXMM) for a secure cable connection. This input will accept a standard or Mono•LOK style HDMI cable. -
Page 9: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 10: Receiver Panel Descriptions
HDMI Input With Mono•LOK Secure Connector This input will accept a single HDMI source for extension. This input features a Mono•LOK connector (Gefen part# CAB-HDMI-LCK-XXMM) for a secure cable connection. This input will accept a standard or Mono•LOK style HDMI cable. -
Page 11: Connecting And Operating The Extender
CONNECTING AND OPERATING THE EXTENDER How to Connect the Extender for HDMI 1.3 over one CAT6 Connect a HDMI cable (one is supplied) between the HDMI output on a HDMI source device and the HDMI input on the Extender for HDMI 1.3 over one CAT6 sending unit. -
Page 12: Dip Switch Confi Guration
DIP SWITCH CONFIGURATION DIP SWITCH CONFIGURATION – DEEP COLOR By default, Deep Color support is disabled (DIP #2 in the OFF position). If Deep Color support is needed, you can change the position of one of the DIP switches on the bottom of the receiver: If the Receiver unit is currently being powered, please disconnect the power adapter from the unit. - Page 13 DIP SWITCH CONFIGURATION DIP SWITCH CONFIGURATION – EDID Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display.
-
Page 14: Network Cable Wiring Diagram
Gefen has specif cally engineered their products to work with the TIA/EIA-568-B specif cation. Please adhere to the table below when f eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 15: Specifi Cations
SPECIFICATIONS Video Amplif er Bandwidth ............... 225 MHz Single Link Max. Resolution ..........1080p/60, 12 bit color Input DDC Signal ................. 5 Volts p-p (TTL) Input Video Signal ................1.2 Volts p-p HDMI Connector ..............Type A, 19 Pin Female Link Connector ................ -
Page 16: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notif ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modif cations.
