CONNECTING AND OPERATING THE
How to Equalize the 4x CAT6 Extender for HDMI
The 4x CAT6 Extender for HDMI Receiver unit has an equalization trimpot to
compensate for variances that can be found in different CAT-6a cable brands. If there
is no output video or if output video contains artifacts and/or video noise, use the
steps below to adjust the EQ trimpot.

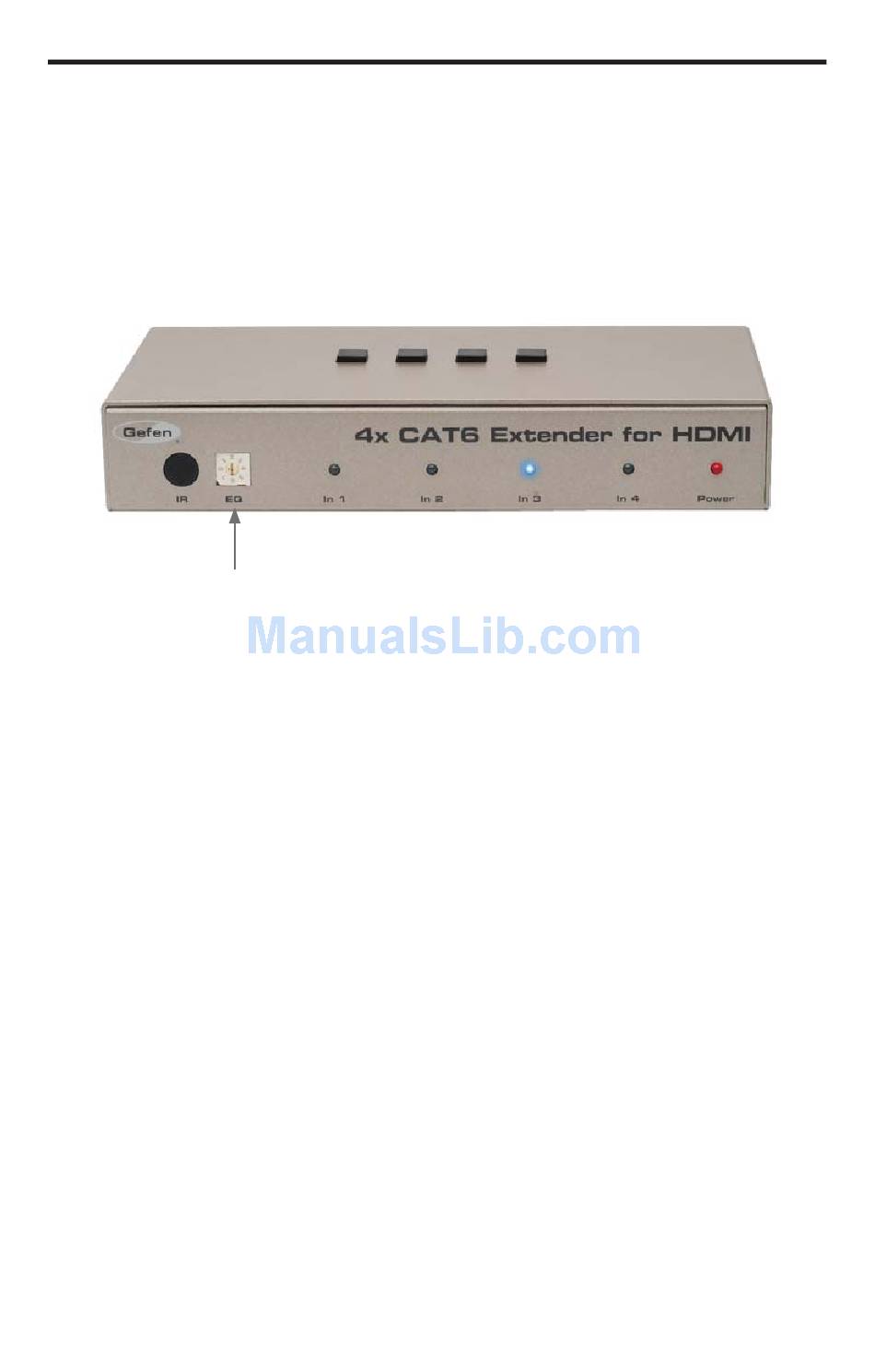

EQ trimpot
1.
Insert a small fl at-head screwdriver into the trimpot on the front panel of the
Receiver unit.
2.
The EQ trimpot can be set to one of eight different positions. Turn the
trimpot clockwise until it clicks into the next position. Continue adjusting the
trimpot until the signal shows best results.
4X CAT6 EXTENDER FOR HDMI
(Matrix Mode / Stand-alone Mode)
17
