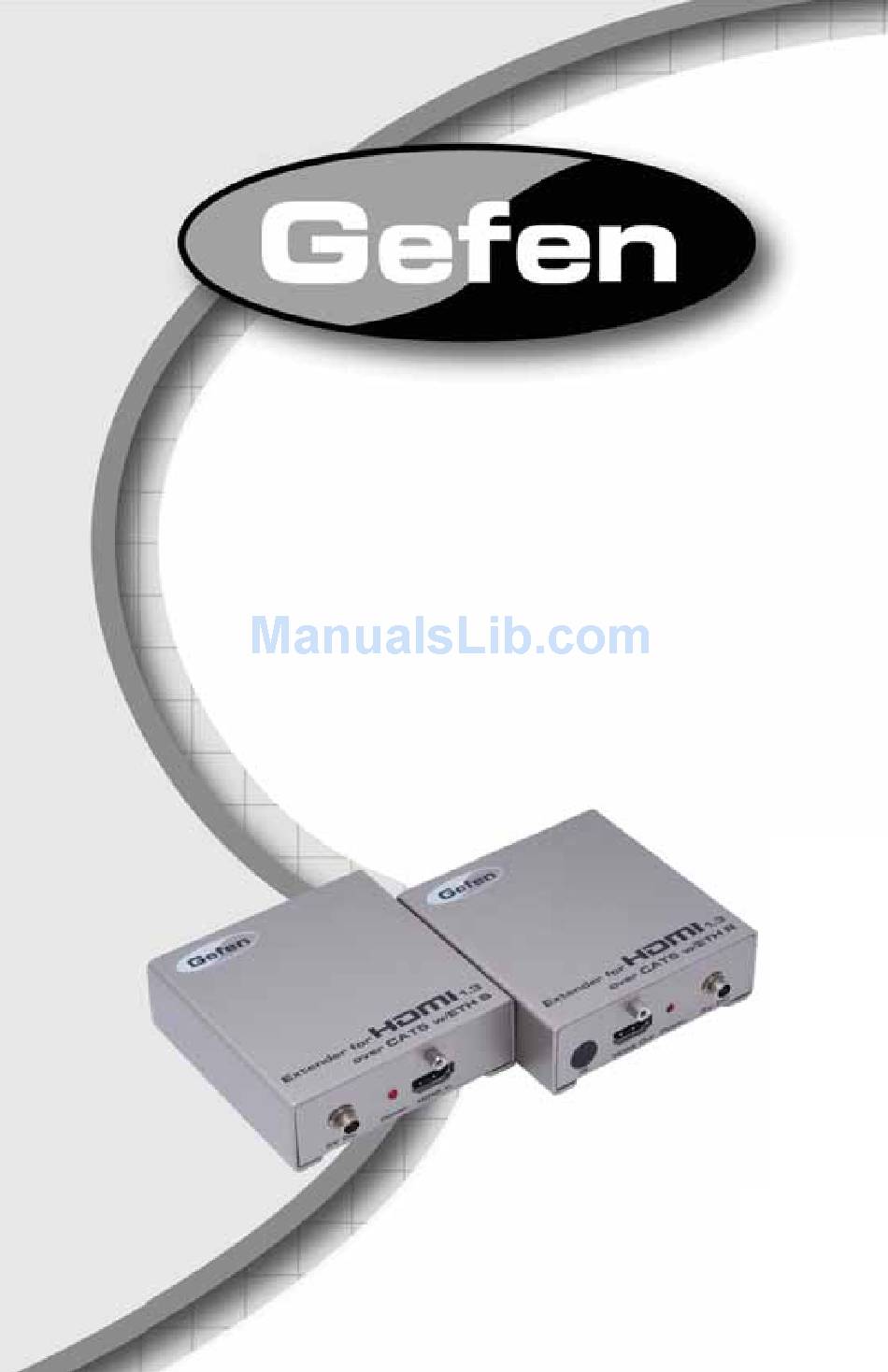

- Page 1 ® Extender for ® HDMI 1.3 over CAT5 with Ethernet EXT-HDMI1.3-CAT5-ELR User Manual...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Extender for HDMI 1.3 over CAT5 with Ethernet is a trademark of Gefen, LLC HDMI, the logo, and High-Defi...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Unit Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting the Extender for HDMI 1.3 over CAT-5 with Ethernet Wiring Diagram Network Cable Wiring Diagram DIP Switches DIP Switch Settings 12 Mounting Plate Installation 13 Terminology 14 Specifi... -
Page 4: Introduction
IR Blaster (sold separately). How It Works Connect the Gefen Extender for HDMI 1.3 over CAT5 with Ethernet sender unit to the A/V and Ethernet Source devices such as infrastructure, routers and switches using short HDMI and CAT5 cables. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE EXTENDER FOR HDMI 1.3 OVER CAT5 WITH ETHERNET • The Extender for HDMI 1.3 over CAT5 with Ethernet units are housed in a metal box for better RF shielding. • CAT-5 cables should not exceed 330 feet. -
Page 6: Features
FEATURES HDMI 1.3 Features • 225 MHz (up to 12-bit YUV 444 @ 1080p) • Deep Color • Dolby TrueHD and DTS-HD Master Audio • Lip-Sync • CEC Pass-Through Features • Extends HDMI1.3 at 1080p60 over Ethernet up to 330 feet along with Ethernet and IR commands •... -
Page 7: Sender Unit Layout
SENDER UNIT LAYOUT Front Back... -
Page 8: Sender Unit Descriptions
Connects the Sender to the Receiver unit using CAT-5 cabling. Ethernet Input Jack Connects the Sender to the network using Ethernet cabling. IR Blaster Port Connect an IR Blaster cable (Gefen part # EXT-2IREMIT) from this port to the Hi-Def source to control the source from the viewing location. - Page 9 RECEIVER UNIT LAYOUT Front Back...
-
Page 10: Receiver Unit Descriptions
Connect the included 5V DC locking power supply to this connector. Only use the power supply shipped with this unit. IR Extender Port Connect an IR Extender (Gefen part # EXT-RMT-EXTIR) cable from this port to the Hi-Def source to extend the IR control. Ethernet Output Jack Connects the receiver unit to the network device. -
Page 11: Connecting The Extender For Hdmi 1.3 Over Cat5 With Ethernet
Power on the HDTV display and the Hi-Def source. A vibrant HD picture will be displayed along with multichannel digital audio (if supported by the display). CAT5 LINK CABLE (Up to 300 ft) CAT5 ETHERNET CABLE HDMI CABLE Ethernet Source HDMI Source Receiver Sender HD Display EXT-HDMI1.3-CAT5-ELR... -
Page 12: Dip Switches
DIP SWITCHES DIP Switch Location On the bottom of the Extender for HDMI 1.3 with Ethernet Receiver unit there are four (4) DIP switches. The DIP switches allow advanced EDID management of the Extender for HDMI 1.3 with Ethernet which may be necessary when troubleshooting or using different brands of hardware. -
Page 13: Dip Switch Settings
DIP SWITCH SETTINGS DIP 1 - EDID Mode ON (default) - External EDID Mode • DDC and HPD are passed through. Both the connection status and the full A/V capabilities of the display. The HPD status will also be detected by the source device. - Page 14 NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Color Orange / White Orange Green / White Blue Blue / White Green Brown / White...
-
Page 15: Mounting Plate Installation
MOUNTING PLATE INSTALLATION Remove the rubber feet covering the screws off the bottom of the unit. Remove the screws. Line up the mounting plates and screw it on to the unit. -
Page 16: Terminology
TERMINOLOGY CAT-5/CAT5e Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair type cable designed for high signal integrity. The actual standard defi nes specifi c electrical properties of the wire, but it is mostly known as being rated for its Ethernet capability of 100 Mbit/s. -
Page 17: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ................1.2 Volts p-p Input DDC Signal ................. 5 Volts p-p (TTL) Max. Video Resolution Supported ......1080p60 / 1920x1200@60 Hz Max. Ethernet Data Transfer Rate............100 Mbps Ethernet Packet Transmission Mode (Duplex): ..........Full HDMI Input/Output Connector Type ........ - Page 19 Rev A10 29.6 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
