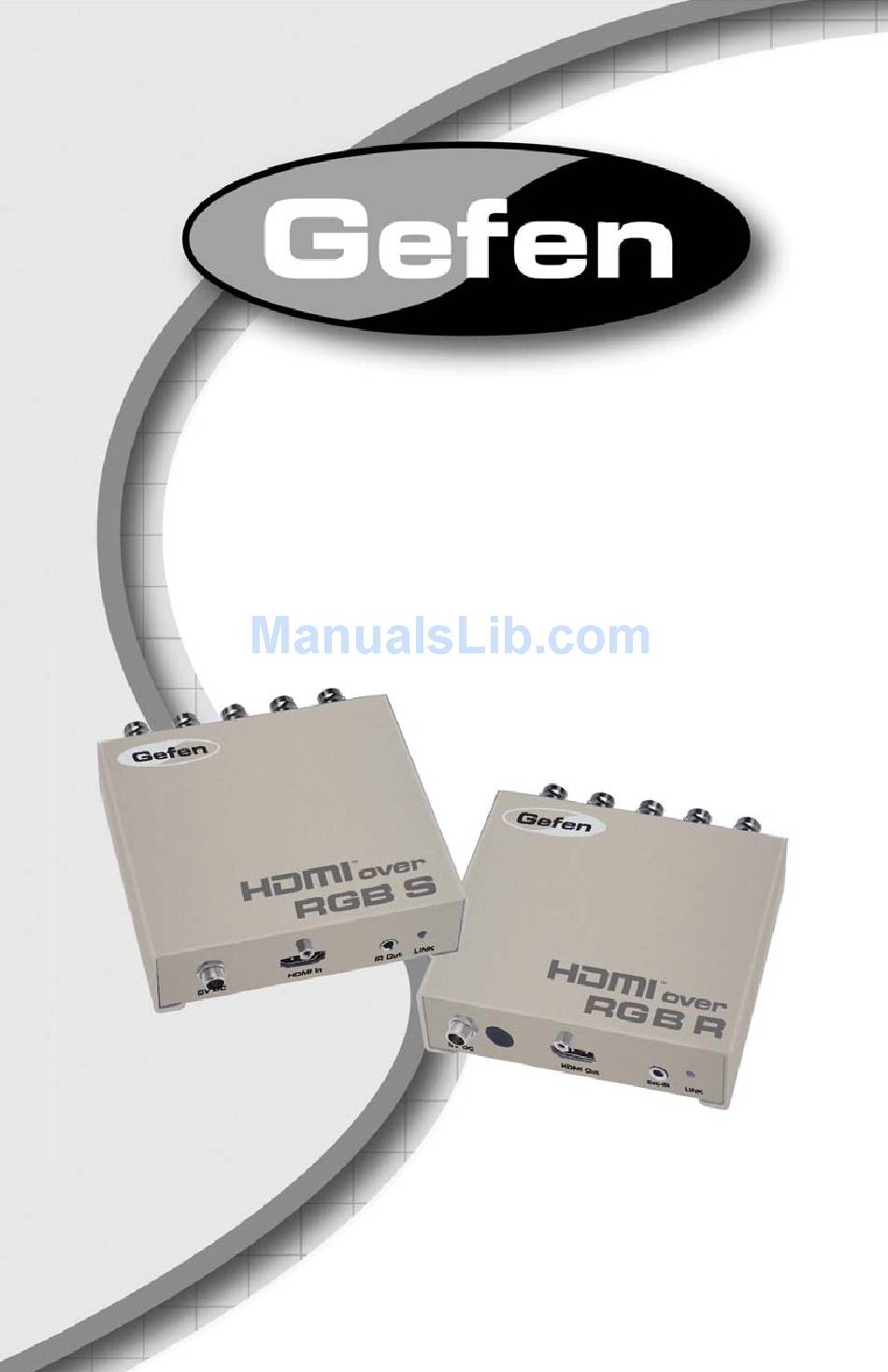

- Page 1 ® HDMI Over RGB EXT-HDMI-5BNC User Manual www.gefen.com...
-
Page 2: Asking For Assistance
Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. HDMI Over RGB is a trademark of Gefen, LLC © 2010 Gefen, LLC, All Rights Reserved... -
Page 3: Table Of Contents
Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The HDMI Over RGB Troubleshooting The HDMI Over RGB 10 Specifi cations 11 Warranty CONTENTS... -
Page 4: Introduction
RGB Receiver into your HDMI display. You will now see HDMI audio/video at the remote location with perfect clarity and sound. You can connect and place an optional Gefen IR Emitter/Blaster on the IR receiver of equipment you wish to control from the remote location. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE HDMI OVER RGB • The HDMI Over RGB is designed for either 4 or 5 BNC cable type setups. When 5 BNC cables are present and used, a power supply on the HDMI Over RGB Receiver will not need to be used. -
Page 6: Features
Features • Connects HDMI sources to remote HDMI displays over legacy RGBHV cabling • Supports extension distances of up to 330 feet • Supports resolutions up to 1080p, 2K, and 1920 x 1200 • HDMI and HDCP compliant • Extends any IR device HDMI 1.3 Features •... -

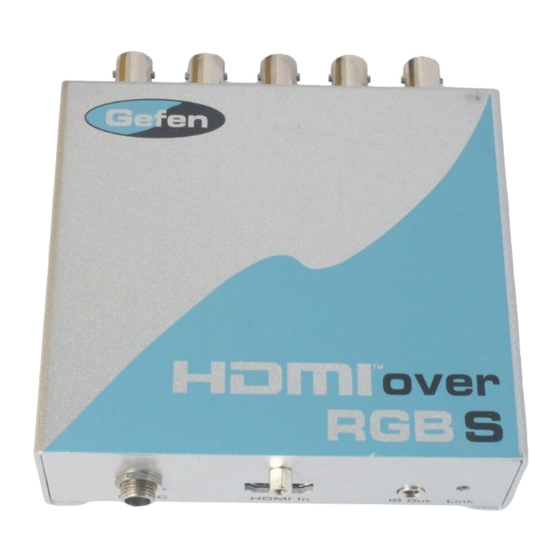

Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel... -
Page 8: Sender Panel Descriptions
Connect the included 5V DC power supply to this input port. HDMI Input Port Connect the HDMI source device to this input port. A secure connection to this HDMI port can be made using Gefen Mono•LOK cables. IR Out Port An IR emitter/blaster (sold separately, part# EXT-2IREMIT) must be connected to this port to use the IR Repeater feature. -
Page 9: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 10: Receiver Panel Descriptions
HDMI Output Port Connect the HDMI capable display device to this output port. A secure connection to this HDMI port can be made using Gefen Mono•LOK cables. IR Extension Port An IR receiver extension (sold separately, part# EXT-RMT-EXTIR) can be connected to this port to relocate the IR receiver. -
Page 11: Connecting And Operating The Hdmi Over Rgb
CONNECTING AND OPERATING THE HDMI OVER RGB How to Connect the HDMI Over RGB Connect the HDMI source device to the HDMI Over RGB sender unit using the supplied HDMI cable. The HDMI Over RGB sender and receiver can be used with either a user supplied 4 or 5 BNC cable system. -
Page 12: Troubleshooting The Hdmi Over Rgb
TROUBLESHOOTING THE HDMI OVER RGB Troubleshooting the HDMI Over RGB Adjustments can be made to the HDMI Over RGB in the event that video fails to appear on the output device. On each unit, sender and receiver, a bank of DIP switches are present. -
Page 13: Specifications
SPECIFICATIONS HDMI 1.3 Features Supported: Video Amp. Bandwidth... 340 MHz (up to 16 bit YUV 444 @ 1080p) Digital Audio ... Dolby TrueHD & DTS Master Protocols (Pass-Through): ...CEC, Lip-Sync Video Resolutions (max) ... 2K, 1080P, 1920x1200 Input Video Signal ... 1.2V p-p Input DDC Signal ... -
Page 14: Specifi Cations
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 15 Rev B1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
