Summary of Contents for Gefen ext-hdmi-cat5x

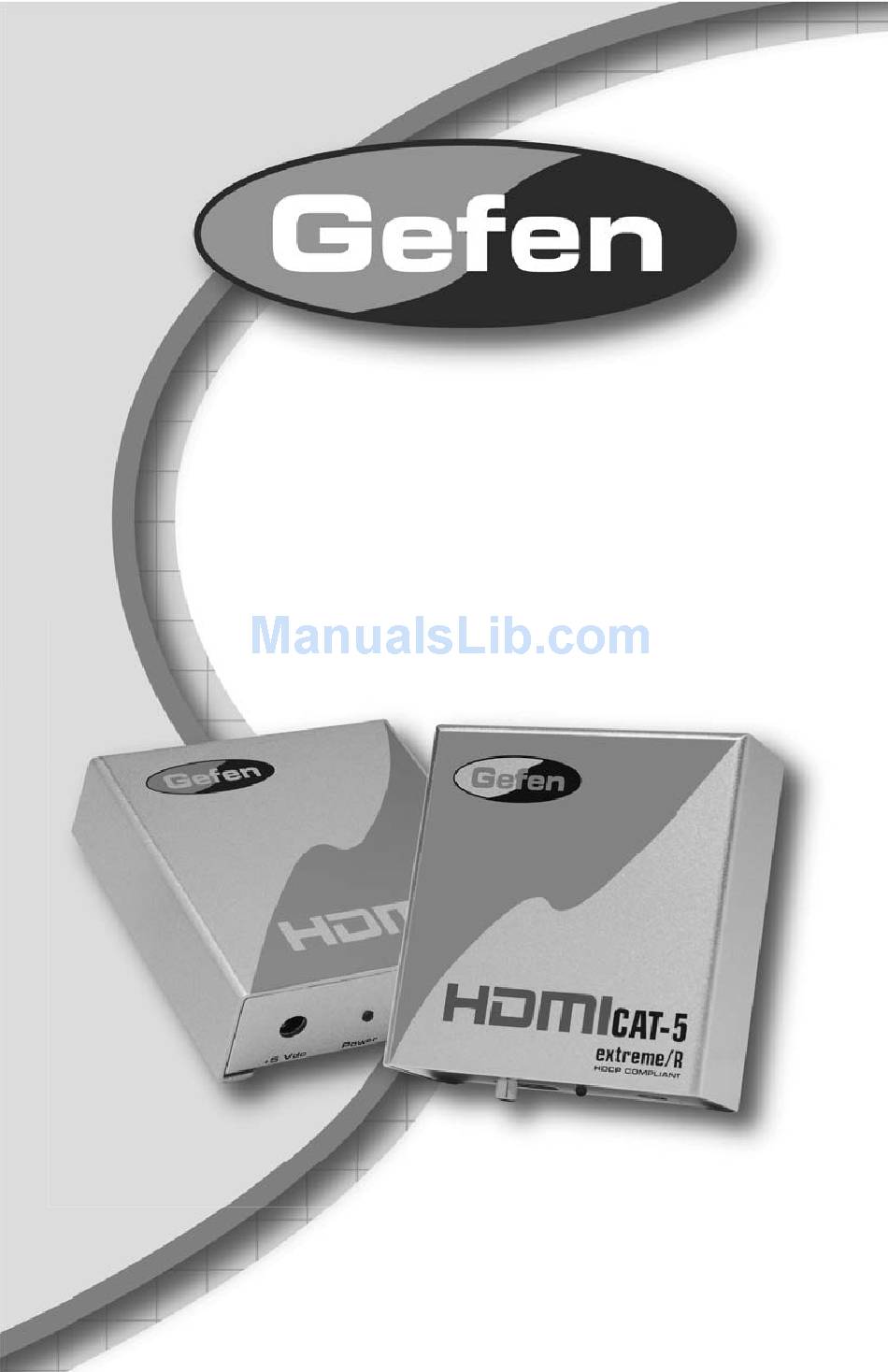

- Page 1 ® ® HDMI CAT5 Extreme EXT-HDMI-CAT5X U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. is a trademark of Gefen, LLC HDMI CAT5 Extreme All trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features HDMI CAT5 Extreme Sender Panel Descriptions HDMI CAT5 Extreme Receiver Panel Descriptions Connecting And Operating The HDMI CAT5 Extreme Dip Switch Usage Guide Wiring Diagram Network Cable Wiring Diagram Mounting Plate Installation 10. -
Page 4: Introduction / Operation Notes
INTRODUCTION The HDMI CAT5 Extreme extends your HDTV display up to 200 feet (60m) away from your HDTV source using two CAT-5 cables. It is equipped with HDMI® (high defi nition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with a HDMI to DVI Adapter, providing greater fl... -
Page 5: Features
FEATURES Features • Extends high defi nition displays up to 200 feet (60 meters) from the source at 1080i • Extends high defi nition displays up to 150 feet (45 meters) from the source at 1080p • Improved compensation for cable skew •... -
Page 6: Hdmi Cat5 Extreme Sender Panel Descriptions
HDMI CAT5 EXTREME SENDER PANEL DESCRIPTIONS Front Panel RJ-45 Input RJ-45 Input Port - Video Port - DDC Back Panel 5V DC Power LED HDMI In Power Input Indicator... -
Page 7: Hdmi Cat5 Extreme Receiver Panel Descriptions
HDMI CAT5 EXTREME RECEIVER PANEL DESCRIPTIONS Front Panel RJ-45 Input RJ-45 Input Port - DDC Port - Video Back Panel Power LED 5V DC HDMI Out Indicator Power Input... -
Page 8: Connecting And Operating The Hdmi Cat5 Extreme
If there is no image or video noise on the display, please refer to the DIP SWITCH Usage Guide in the following section to adjust the video signal. * Please ensure that all cables are properly connected. Gefen recommends TIA/EIA-568-B specifi cations for all CAT-5, CAT-5e or CAT-6 terminations. -
Page 9: Dip Switch Usage Guide
DIP SWITCH USAGE GUIDE The sender and receiver of the HDMI CAT5 Extreme both contain a set of DIP SWITCHES located underneath each unit. Peeling back the silver sticker on the bottom of each unit will reveal the DIP SWITCH bank. These service switches are used to boost and equalize the signal to best match the conditions in your setup. -
Page 10: Wiring Diagram
WIRING DIAGRAM... -
Page 11: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 12: Mounting Plate Installation
MOUNTING PLATE INSTALLATION... -
Page 13: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................165 MHz Input Video Signal ................... 1.2 Volts p-p Input DDC Signal ................5 Volts p-p (TTL) Single Link Range ...............1080p / 1920 x 1200 HDMI Connector Type ............... Type A 19 pin female Link Connector .................... - Page 15 Rev X2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
