CONNECTING AND OPERATING THE
How to Operate the 4x CAT6 Extender for HDMI
The front panel of each Receiver unit for the 4x CAT6 Extender for HDMI
contains a set of LED indicators which corresponds to an input (source) on the
4x4 Matrix device. A blue LED indicates which input has been routed from the
4x4 Matrix. On the top of each Receiver unit there are a set of 4 push-buttons
which are used to control the switching of the 4x4 Matrix.
Example 1: Routing Input (source) 3 to Output (display) 4.
1.
Connect an HDMI cable from HDMI Out 4 on the 4x4 Matrix to HDMI In 4 on
the 4x CAT6 Extender for HDMI Sender unit.
2.
Connect an 4x CAT6 Extender Receiver unit to Display 4.
3.

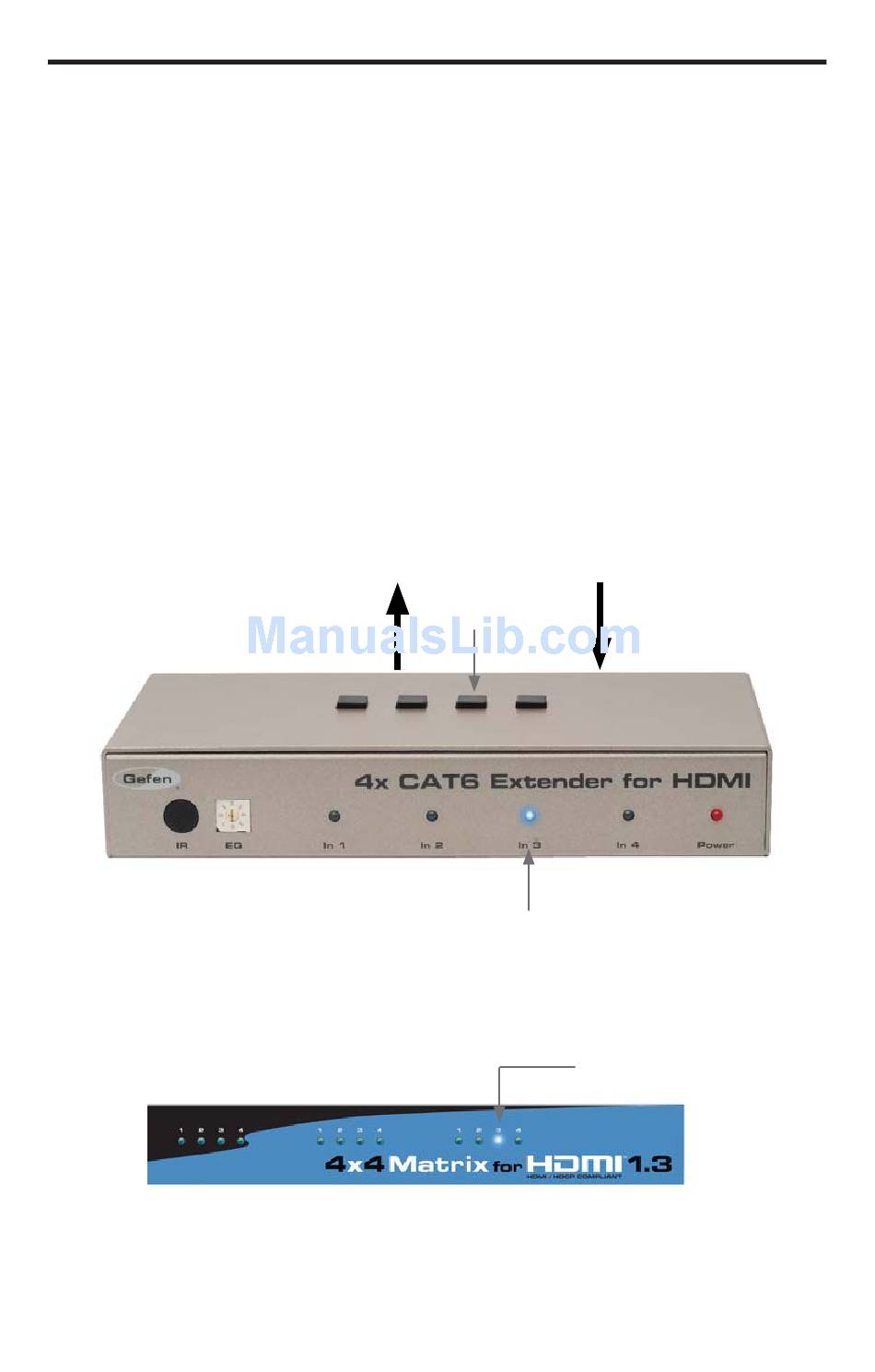

Press button 3 on the top of the Receiver unit. Button 3 is shown below.
The In 3 LED will turn bright blue, indicating that Input 3 on the 4x4 Matrix
has been routed to Display 4 (Zone 4).
Example: HDMI input 3 is routed to HDMI Out 4 (a picture of the 4x4 Matrix
display panel is shown below). The image shown on Display 4 will be the
HDMI source (3) connected to the 4x4 Matrix.
4X CAT6 EXTENDER FOR HDMI
(using an 4x4 Matrix)
HDMI cable
To Display 4
Button 3
In 3
Input 3
12
CAT-6 from
Out 4 on
Extender
p
