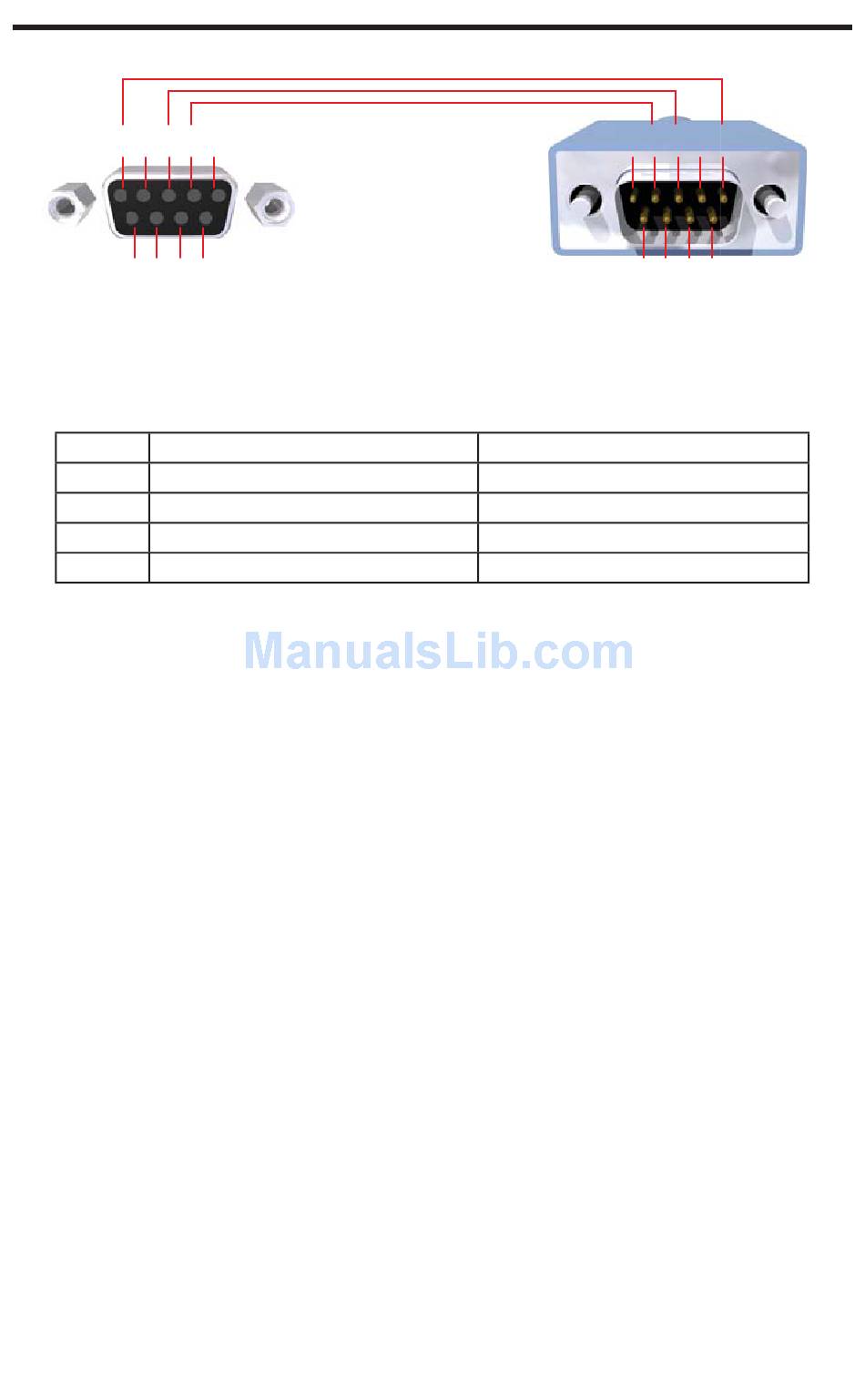

RS-232 SERIAL CONTROL INTERFACE

5 4 3 2 1
9 8 7 6
Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface
ASCII
Corresponding RMT-4-IR Button
1
2
3
4
Bits per second ................................................................................................. 19200
Data bits .................................................................................................................... 8
Parity .................................................................................................................. None
Stop bits .....................................................................................................................1
Flow Control ....................................................................................................... None
Binary Table
1
2
3
4
RS-232 Settings
20
1 2 3 4 5
6 7 8 9
Binary
0011 0001
0011 0010
0011 0011
0011 0100
