The Gefen 4x CAT6 Extender for HDMI supports IP-based control using an
integrated Web interface. To access this feature, an IP address, subnet, gateway,
and port number need to be set on the 4x CAT6 Extender for HDMI (Default IP:
192.168.0.70 Subnet: 255.255.255.0 Gateway: 192.168.0.1 Port: 80). Consult
the network administrator to obtain the proper IP address and settings for this
product to properly communicate on the network.
The IP control setting can be confi gured via the RS-232 control interface. Once
this has been accomplished, access to the Web Interface is possible.

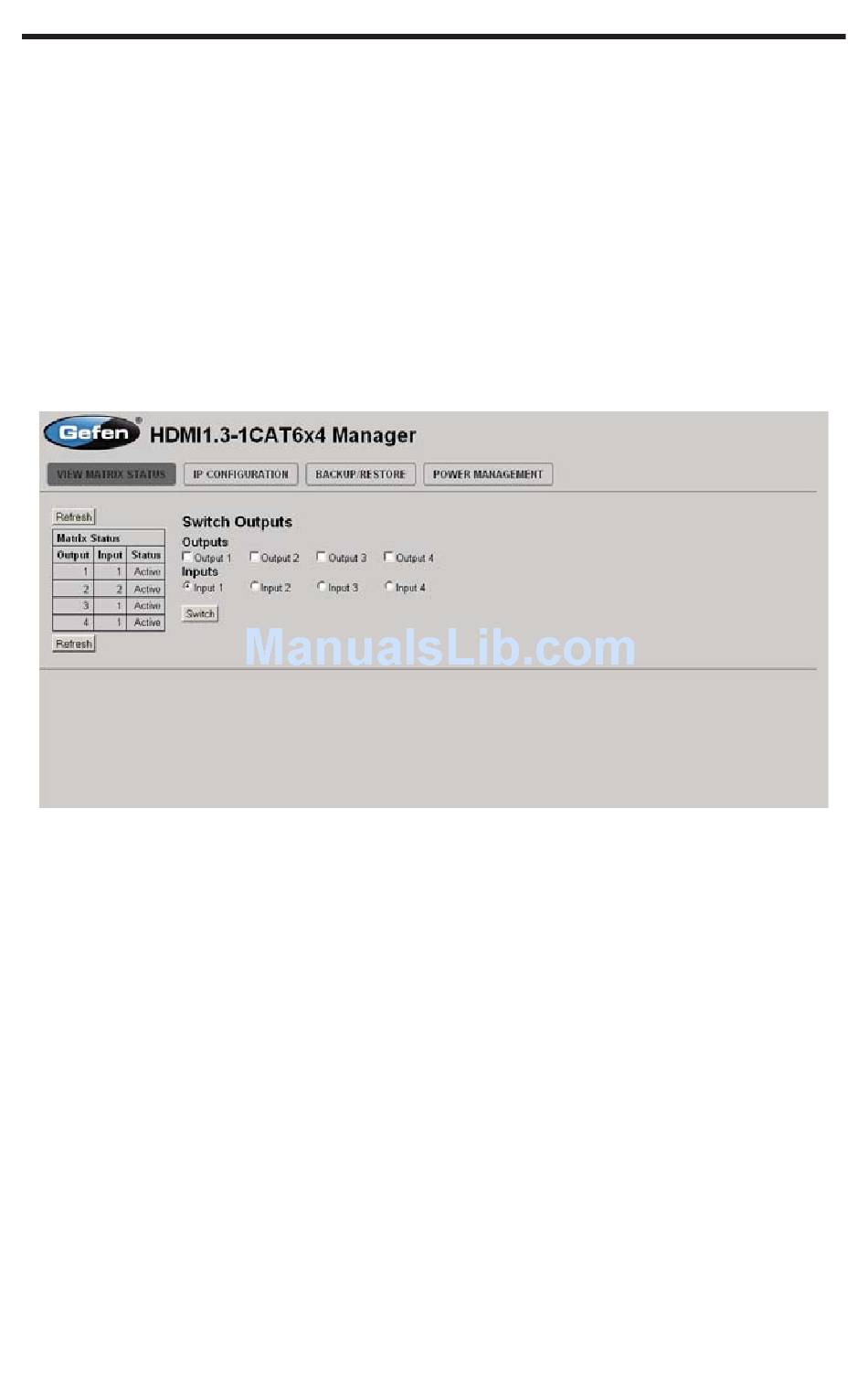

Simply type the IP address that was assigned to the product in a web browser to
access the Web Interface. It should look like the image below.
The VIEW MATRIX STATUS page will display the current status and can also be
used to create routes.
To create a new route, follow the steps below:
1.
Select which outputs will display the source by clicking on each check box.
2.
Select the radio button of the input that will be routed to each output.
3.
Click the Switch button to update the new routing confi guration.
This page will automatically refresh every minute. However, at anytime the
Refresh button can be pressed to refresh the status of the Matrix.
IP CONTROL
VIEW MATRIX STATUS
25
