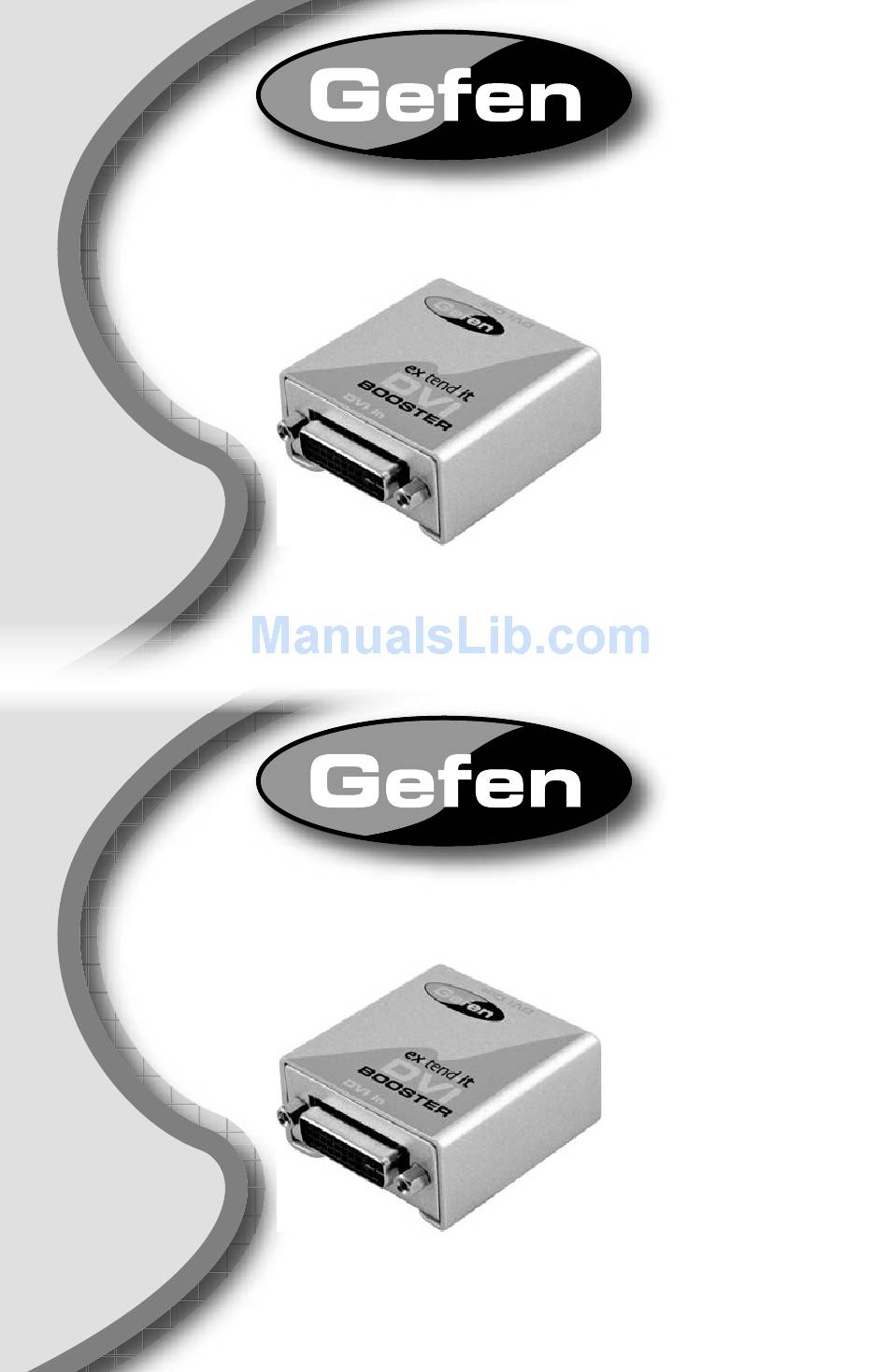

- Page 1 DVI Booster EXT-DVI-141B User Manual www.gefen.com DVI Booster EXT-DVI-141B User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI Booster is a trademark of Gefen, LLC © 2010 Gefen, LLC, All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Connecting And Operating The DVI Booster Specifi cations Warranty CONTENTS Introduction Operation Notes Features Panel Layout Connecting And Operating The DVI Booster Specifi cations Warranty... -
Page 4: Introduction

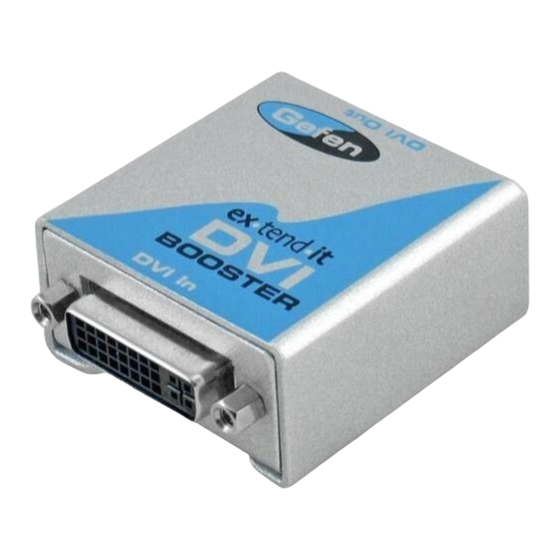

The Gefen DVI Booster Gefen’s DVI Booster reconditions the HD signal sent over long cable, essentially eliminating the video degradation that occurs beyond 15-feet. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI BOOSTER • The DVI Booster is powered passively by the source. If the source does not output the required 5V for operation, a powered booster, instead of this passive booster, will be required (part# EXT-DVI- 141SB or EXT-DVI-141SBP). -
Page 6: Features
FEATURES Features • Connects DVI computers with DVI outputs to DVI compatible displays or projectors • Maintains highest DVI single link video resolution • Supports DDWG standard for DVI compliant monitors • Installs in minutes Package Includes (1) DVI Booster (1) User’s Manual FEATURES Features... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel DVI Output DVI Input PANEL LAYOUT Front Panel DVI Output DVI Input... -
Page 8: Connecting And Operating The Dvi Booster
CONNECTING AND OPERATING THE DVI BOOSTER How to Connect the DVI Booster Connect the long DVI cable from the source into the “DVI In” on the front of the DVI Booster. The DVI Booster is placed next to your display to regenerate the DVI cable. Connect a short DVI cable from the “DVI Out”... -
Page 9: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ......................1.65 Gbps Video Pixel Rate …………………………………………………………………………..…………. 165 Mhz Input Video Signal ........................1.2 Volts p-p Input DDC Signal ......................5 Volts p-p (TTL) Maximum Single Link Range ..................1920 x 1200 x 60hz DVI Input/Output Connector Type ............DVI-I 29 Pin Female (Digital Only) Dimensions ......................
