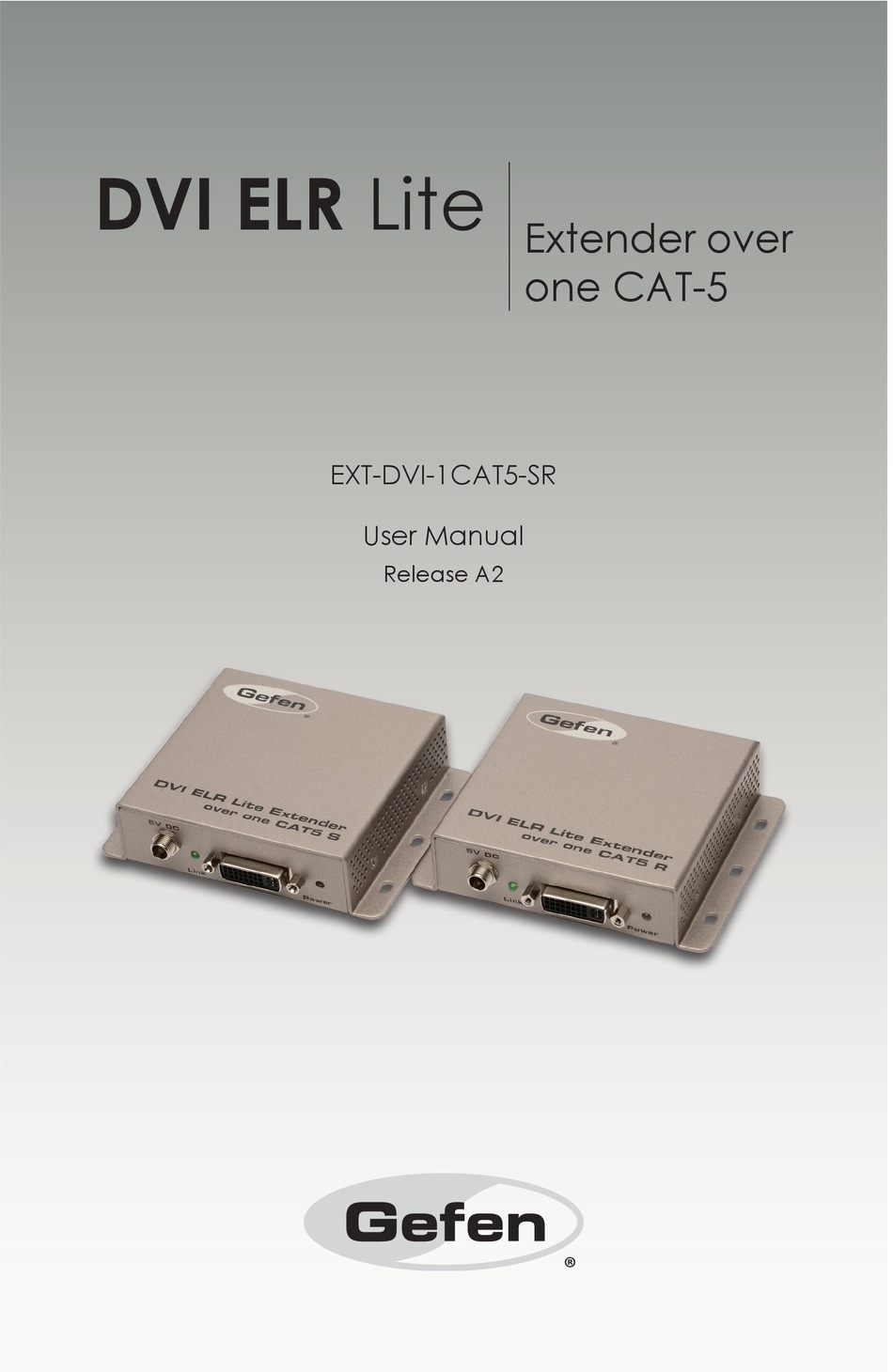

- Page 1 DVI ELR Lite 3GSDI Audio Embedder Extender over one CAT-5 EXT-DVI-1CAT5-SR User Manual Release A2...
-
Page 2: Important Safety Instructions
DVI ELR Lite Extender over one CAT-5 Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 3: Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 4 DVI ELR Lite Extender over one CAT-5 is a trademark of Gefen, LLC. Important Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. © 2013 Gefen, LLC. All Rights Reserved.
- Page 5 3GSDI Audio Embedder DVI ELR Lite Extender over one CAT-5 Operating Notes • CAT-5 cables should not exceed 200 feet (60 meters). CAT-6 cables should not exceed 230 feet (70 meters). • Shielded Twisted-Pair (STP) CAT-5 or CAT-6 cabling is recommended. However, Un-shielded Twisted-Pair (UTP) CAT-5 or CAT-6 cabling is acceptable.
-
Page 6: Packing List

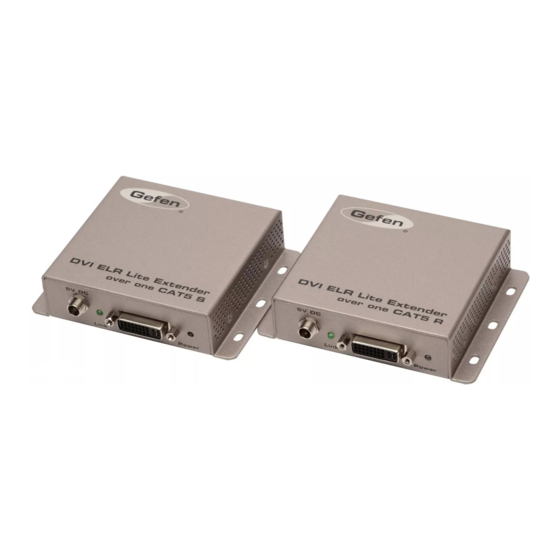

The DVI ELR Lite Extender over one CAT-5 ships with the items listed below. If any of these items are not present in your box when you first open it, immediately contact your dealer or Gefen. • 1 x DVI ELR Lite Extender over one CAT-5 (Sender unit) •... -
Page 8: Table Of Contents
3GSDI Audio Embedder DVI ELR Lite Extender over one CAT-5 Table of Contents Getting Started Sender Unit Layout....................2 Front Panel ....................2 Back Panel ....................3 Bottom Panel ....................4 Receiver Unit Layout ..................... 5 Front Panel ....................5 Back Panel .................... -
Page 11: 01 Getting Started
DVI ELR Lite Extender over One CAT-5 01 Getting Started Sender Unit Layout....................2 Front Panel ....................2 Back Panel ....................3 Bottom Panel ....................4 Receiver Unit Layout ..................... 5 Front Panel ....................5 Back Panel ....................6 Installation ......................7 Connecting the DVI ELR Lite Extender over one CAT-5 ...... -
Page 12: Sender Unit Layout
Getting Started Sender Unit Layout Front Panel Name Description 5V DC Connect the included 5V DC power supply to this power receptacle. Link This LED indicator will glow bright green when power is applied and a CAT-5 cable is connected between the Sender and Receiver unit. -
Page 13: Back Panel
Getting Started Sender Unit Layout Back Panel Name Description Link Connect a CAT-5 cable from this jack to the Link jack on the Receiver unit. page | 3... -
Page 14: Bottom Panel
Getting Started Sender Unit Layout Bottom Panel Name Description DIP switches Used for troubleshooting purposes only. DIP Switch Configuration for more information. page | 4... -
Page 15: Receiver Unit Layout
Getting Started Receiver Unit Layout Front Panel Name Description 5V DC Connect the included 5V DC power supply to this power receptacle. Link This LED indicator will glow bright green when power is applied and a CAT-5 cable is connected between the Sender and Receiver unit. -
Page 16: Back Panel
Getting Started Receiver Unit Layout Back Panel Name Description Link Connect a CAT-5 (or better) cable from this jack to the Link jack on the Sender unit. page | 6... -
Page 17: Installation
Connect the included 5V DC locking power supplies to the Sender and Receiver unit. Do not overtighten the locking power connectors. Connect the AC power cord from the power supply to an available electrical outlet. Sample Wiring Diagram CAT5 CABLE DVI CABLE DVI Source Receiver Sender DVI Display EXT-DVI-1CAT5-SR page | 7... -
Page 19: 02 Appendix
DVI ELR Lite Extender over One CAT-5 02 Appendix DIP Switch Configuration ..................10 Specifications .......................11... -
Page 20: Dip Switch Configuration
Appendix DIP Switch Configuration On the bottom panel of the DVI ELR Lite Extender over one CAT-5 Sender Unit is a bank of 4 DIP switches. Remove the piece of colored tape to reveal the DIP switch bank. These DIP switches provide control over EDID management, Hot-Plug Detect, and HDCP. DIP switch 4 is not used. -
Page 21: Specifications
Appendix Specifications Supported Formats Resolutions (max.) • 1920 x 1200 (WUXGA) • 1080p Full HD Electrical Maximum Pixel Clock • 165 MHz Power Indicator • 1 x LED, blue Link Indicator • 1 x LED, green Connectors Input (Sender) • 1 x DVI-I, 29-pin, female (digital only) Output (Receiver) •... - Page 22 Stretch it, Switch it, Split it, Control it. Gefen’s got it. ® 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
