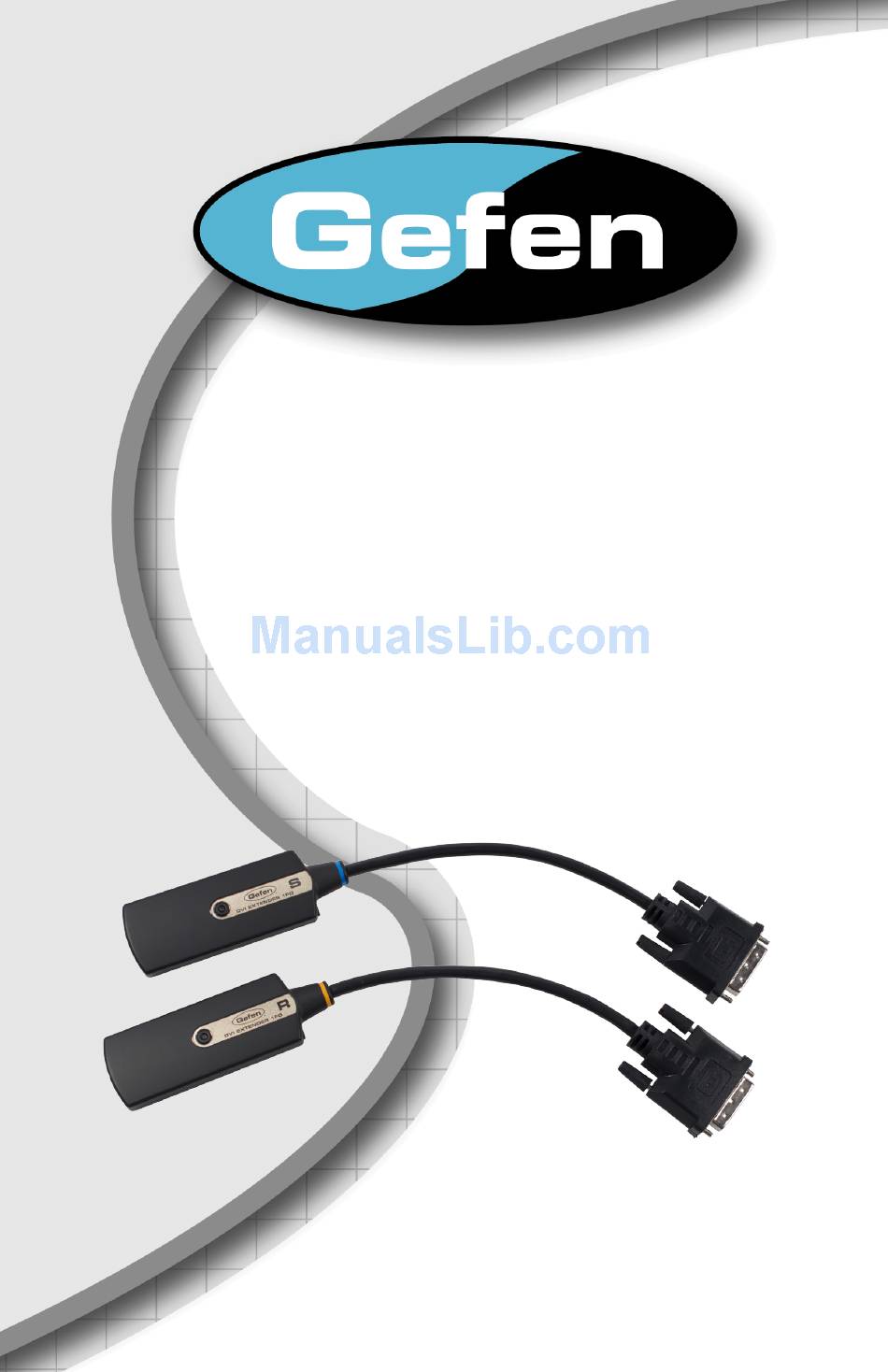

- Page 1 ® Extender 1FO EXT-DVI-CP-FM10 User Manual www.gefen.com...
- Page 3 Chatsworth, CA 91311 www.gefen.com support@gefen.com Notice Gefen LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. DVI Extender 1FO is a trademark of Gefen LLC © 2012 Gefen, LLC. All rights reserved.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Cable Layout Cable Descriptions Connecting the DVI Extender 1FO Wiring Diagram Operating the DVI Extender 1FO Specifications Warranty... -
Page 5: Introduction
INTRODUCTION Congratulations on your purchase of the Gefen DVI Extender 1FO. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to install and simple to operate. -
Page 6: Operation Notes
OPERATION NOTES PLEASE READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI EXTENDER 1FO • The Sender module does not need to be powered unless the source does not supply enough power through the DVI connector. • 62.5/125µm (OM1) fiber may also be used at reduced maximum range of up to 1000 feet (300 meters). -
Page 7: Features
FEATURES Features • Extends DVI up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2) SC-terminated fiber optic cable • Supports resolutions up to 1920 x 1200 (WUXGA) • Fiber optic transmission eliminates electromagnetic interference (EMI) • Pigtail design relieves stress and clutter on the source and display connector panels •... -
Page 8: Cable Layout
CABLE LAYOUT Receiver Sender Module Module... -
Page 9: Cable Descriptions
CABLE DESCRIPTIONS Fiber Optic Connector (Sender module) Connect an SC-terminated fiber optic cable from the Sender pigtail module to the SC fiber connector on the Receiver pigtail module. Power Indicator (Sender module) This LED will glow bright green when the DVI source is supplying sufficient power to the Sender module. -
Page 10: Connecting The Dvi Extender 1Fo
DVI connector. The Receiver module must always be powered using one of the include 5V DC power supplies. Wiring Diagram for the DVI Extender 1FO SC FIBER OPTIC CABLE Computer Sender Receiver Display EXT-DVI-CP-FM10... -
Page 11: Operating The Dvi Extender 1Fo
OPERATING THE DVI EXTENDER 1FO Power Indicators The power indicators on both the Sender and Receiver modules of the DVI Extender 1FO provide information about the current power state. Normal operation If the power indicator on both the Sender and Receiver module glows bright green, then both the Sender and Receiver module are powered and a valid connection exists between the DVI source and the display. -
Page 12: Specifications
SPECIFICATIONS Maximum Pixel Clock................165 MHz Video Input Connector (Sender)........(1) DVI-D, 19-pin, male Video Output Connector (Receiver)........(1) DVI-D, 19-pin, male Link Connector (Sender/Receiver)......(1) Type SC fiber (50 /125μm) Power Supply (Sender / Receiver)............... 5V DC Power Consumption (Receiver)............1.5W (max.) Operating Temperature.......... -
Page 13: Warranty
If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 16 Rev A4 This product uses UL or CE listed power supplies.
