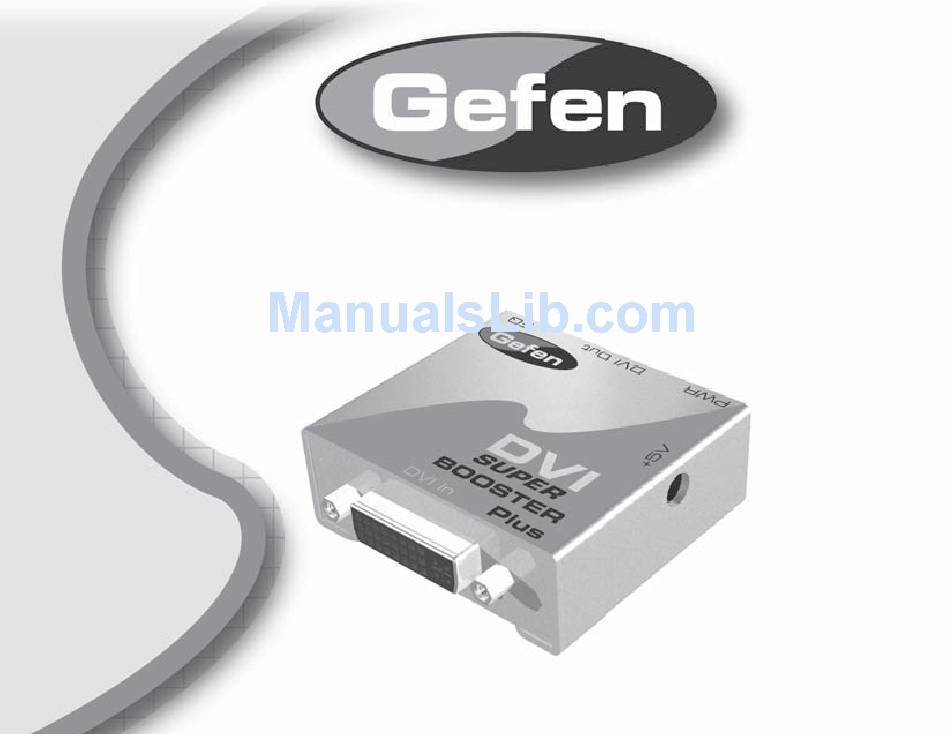

- Page 1 DVI Super Booster Plus U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The DVI Super Booster Plus is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Layout Connecting and Operating the DVI Super Booster Plus Auto Equalization Specifi cations Warranty... -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the DVI Super Booster Plus. Your complete satisfaction is very important to us. The DVI Super Booster Plus extends the length of any DVI cable by regenerating the DVI signal before it is output to the DVI monitor or projector. The DVI Super Booster Plus will clean out the digital noise (sparkles) in your picture. -
Page 5: Features
FEATURES Features • Perfects digital video sent over long stretches of DVI cables • Extends DVI displays away from the HDTV source • Maintains highest Single Link resolutions up to 1080p/1920x1200 • Supports DDWG standard for DVI compliant monitors • HDCP Compliant Includes: (1) DVI Super Booster... -
Page 6: Panel Layout
PANEL LAYOUT Front Panel Manual EQ Power LED Adjustment Indicator DVI In Back Panel DVI Out... - Page 7 CONNECTING AND OPERATING THE DVI DETECTIVE Connect the long DVI cable from the source into the “DVI In” on the front of the DVI Super Booster. The DVI Super Booster is placed next to your display to regenerate the DVI cable. Connect a short DVI cable from the “DVI Out”...
-
Page 8: Auto Equalization
AUTO EQUALIZATION Auto EQ OFF (Default) Auto EQ ON Remove the silver tape to expose the Dip Switch Bank By default, both Dip Switches should be in the off position as shown above. To enable the Auto EQ, please fl ip Dip Switch 1 to the ON position. You must then proceed to manually adjust the EQ by turning the EQ trim pot on the front of the unit in small increments. -
Page 9: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................165 MHz Input Video Signal ................... 1.2 volts p-p Input DDC Signal ................5 volts p-p (TTL) Maximum Single Link Range ............1920 x 1200 x 60hz DVI Input/Output Connector Type ..............DVI-D Power Consumption ..................5 Watts (max) Power Supply……………………..
