DVI 1000 ST
Optical Extension
EXT-DVI-1000ST
User Manual
www.gefen.com
f

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVI-1000ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gefen DVI-1000ST

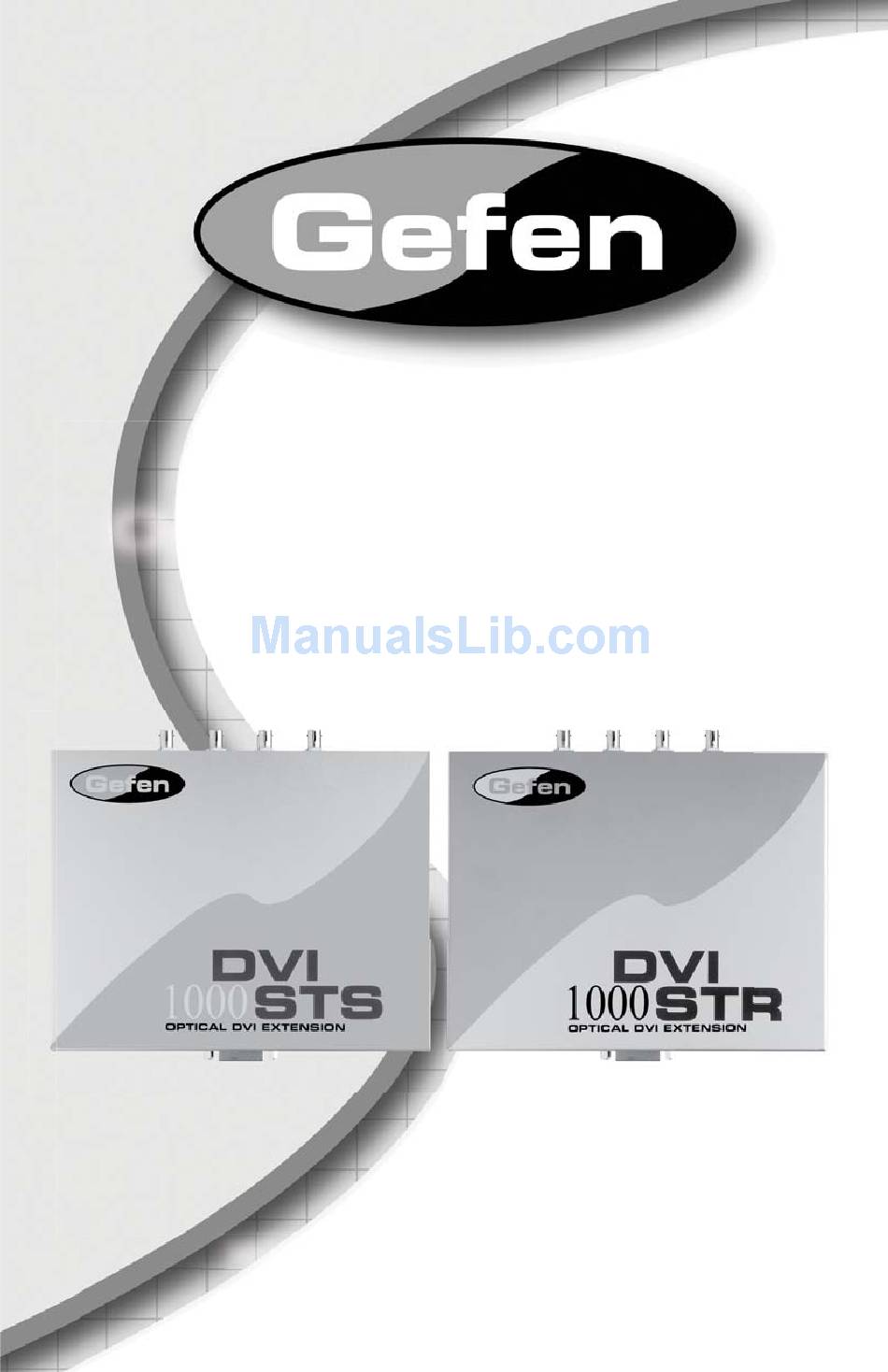

  • Page 1 DVI 1000 ST Optical Extension EXT-DVI-1000ST User Manual www.gefen.com...
  • Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI•1000ST is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
  • Page 3: Table Of Contents

    Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The DVI•1000ST Network Cable Wiring Diagram 10 Specifi cations 11 Warranty CONTENTS...
  • Page 4: Introduction

    The Gefen DVI•1000ST The Gefen DVI•1000ST extends your DVI display up to 500 meters (1640 ft) from your source. It’s equipped with ST fi ber optic connectors designed to withstand the extensive use that takes place in rental and staging markets.
  • Page 5: Operation Notes

    READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI•1000ST • The fi ber optics cable must be treated carefully when connectors are exposed. They are susceptible to dust which can contribute to loss of pixels. • The DVI 1000 ST works for all DVI displays and supports resolutions up to 1920x1200 •...
  • Page 6: Features

    Features • Extends any DVI compliant device up to 1640 feet/500 meters (330 feet with HDCP) from the computer • Uses a four strand fi ber optic cable and one CAT-5e cable for DDC and control signals • Supports resolutions up to 1080p, 2K, and 1920 x 1200 •...
  • Page 7: Sender Panel Layout

    SENDER PANEL LAYOUT Front Panel Back Panel...
  • Page 8: Sender Panel Descriptions

    SENDER PANEL DESCRIPTIONS Power LED This LED will be active when the supplied 12V DC power adapter is connected. Status LED This LED will be active when a solid link has been established between the sender and receiver units. Clock ST Fiber Connector Connect the Fiber cable that will be used to transmit the Clock signal to this connector.
  • Page 9: Receiver Panel Layout

    RECEIVER PANEL LAYOUT Front Panel Back Panel...
  • Page 10: Receiver Panel Descriptions

    RECEIVER PANEL DESCRIPTIONS Power LED This LED will be active when the supplied 12V DC power adapter is connected. Status LED This LED will be active when a solid link has been established between the sender and receiver units. Red ST Fiber Connector Connect the Fiber cable that will be used to receive the Red signal to this connector.
  • Page 11: Connecting And Operating The Dvi•1000St

    CONNECTING AND OPERATING THE DVI•1000ST Connect the DVI 1000 ST sender unit to the DVI source using the supplied cables. Connect the DVI 1000 ST receiver unit to your DVI display. Connect the four fi ber optics and one CAT5 cable between the sender and receiver.
  • Page 12: Network Cable Wiring Diagram

    Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance.
  • Page 13: Specifications

    SPECIFICATIONS Video Amplifi er Bandwidth ... 165 MHz Input Video Signal ... 1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Single Link Range ... 1920 x 1200 DVI Input/Output Connector Type ... DVI-D Link Connector ... RJ-45 Power Consumption ...
