4062-XXX
Media size actuator removal
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
1. Remove the 250-sheet controller card assembly. Go to
"250-sheet controller card assembly removal"
on page
4-106.

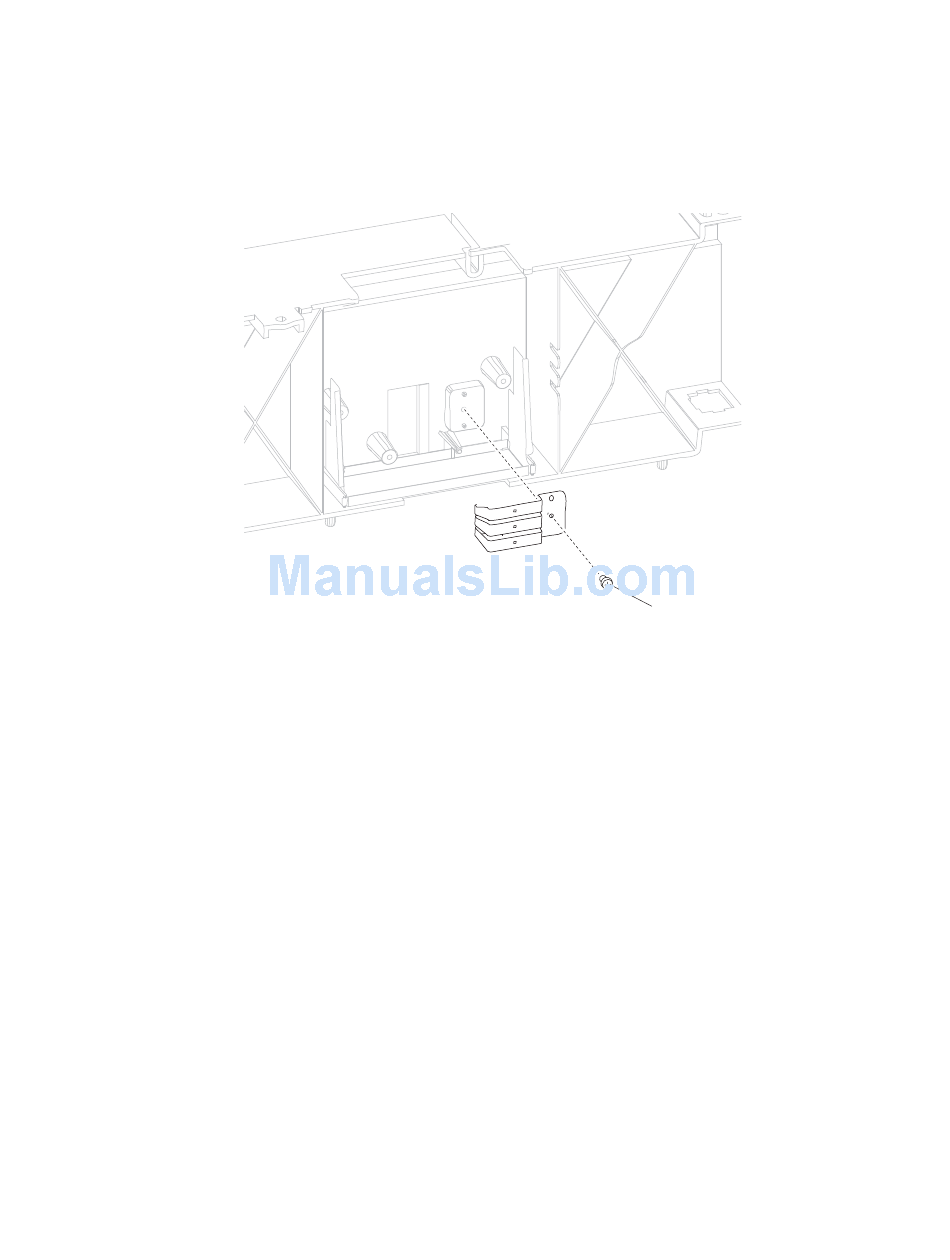

2. Remove the screw (A) securing the media size actuator to the 250-sheet frame.
A
3. Remove the media size actuator.
4-157
Repair Information
