ZEUS Technical Manual

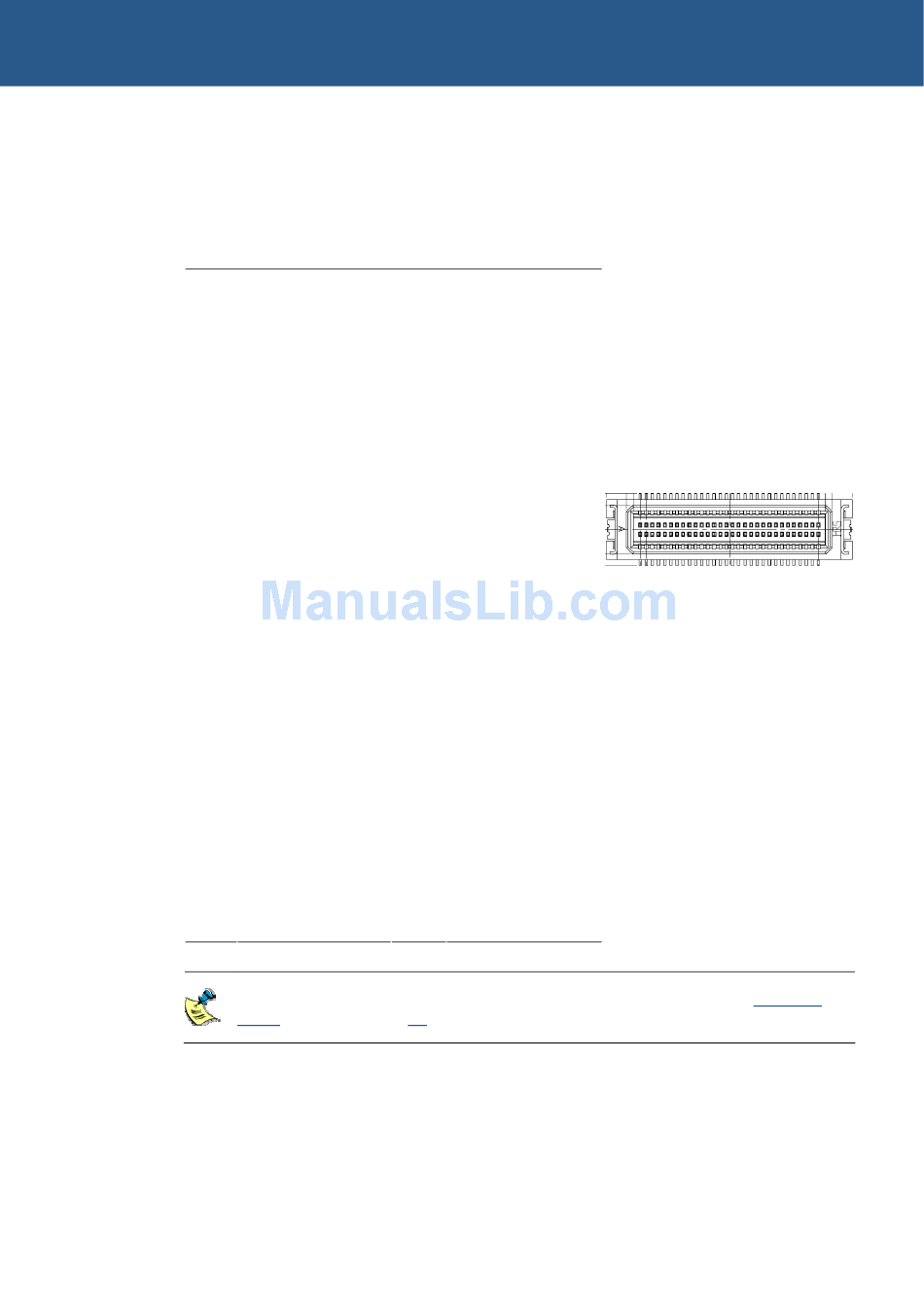

J23 – Wireless modem/GPS module interface
Connector: Hirose DF17(4.0)-40DP-0.5V(57), 40-way, 0.5mm pitch header
Mating connector: Hirose DF17(3.0)-40DS-0.5V(51), 40-way, 0.5mm pitch socket
Pin Signal name
1 VCC_MODEM
3 VCC_MODEM
5 VCC_MODEM
7 VCC_MODEM
9 VCC_MODEM
11 VCC_MODEM
13 GSM_FFTXD
15 GSM_FFDTR#
17 GSM_FFRTS#
19 GSM_ON
21 PTT
23 GPS_PSUON
25 +3V3
27 GPS_ON
29 GPS_STDTXD
31 GND
33 GND
35 GND
37 GND
39 GND
If you require a custom wireless modem adapter, please contact the
Sales
© 2007 Eurotech Ltd Issue D
Pin Signal name
2 VCC_MODEM
4 VCC_MODEM
6 VCC_MODEM
8 VCC_MODEM
10 VCC_MODEM
12 GSM_STS
14 GSM_FFRXD
16 GSM_FFDSR#
18 GSM_FFRI#
20 GSM_FFDCD#
22 GSM_FFCTS#
24 GPS_BOOT
26 +3V3
28 GPS_PPS
30 GPS_STDRXD
32 GND
34 GND
36 GND
38 GND
40 GND
team (see page 97).
Connectors, LEDs and jumpers
