ZEUS Technical Manual

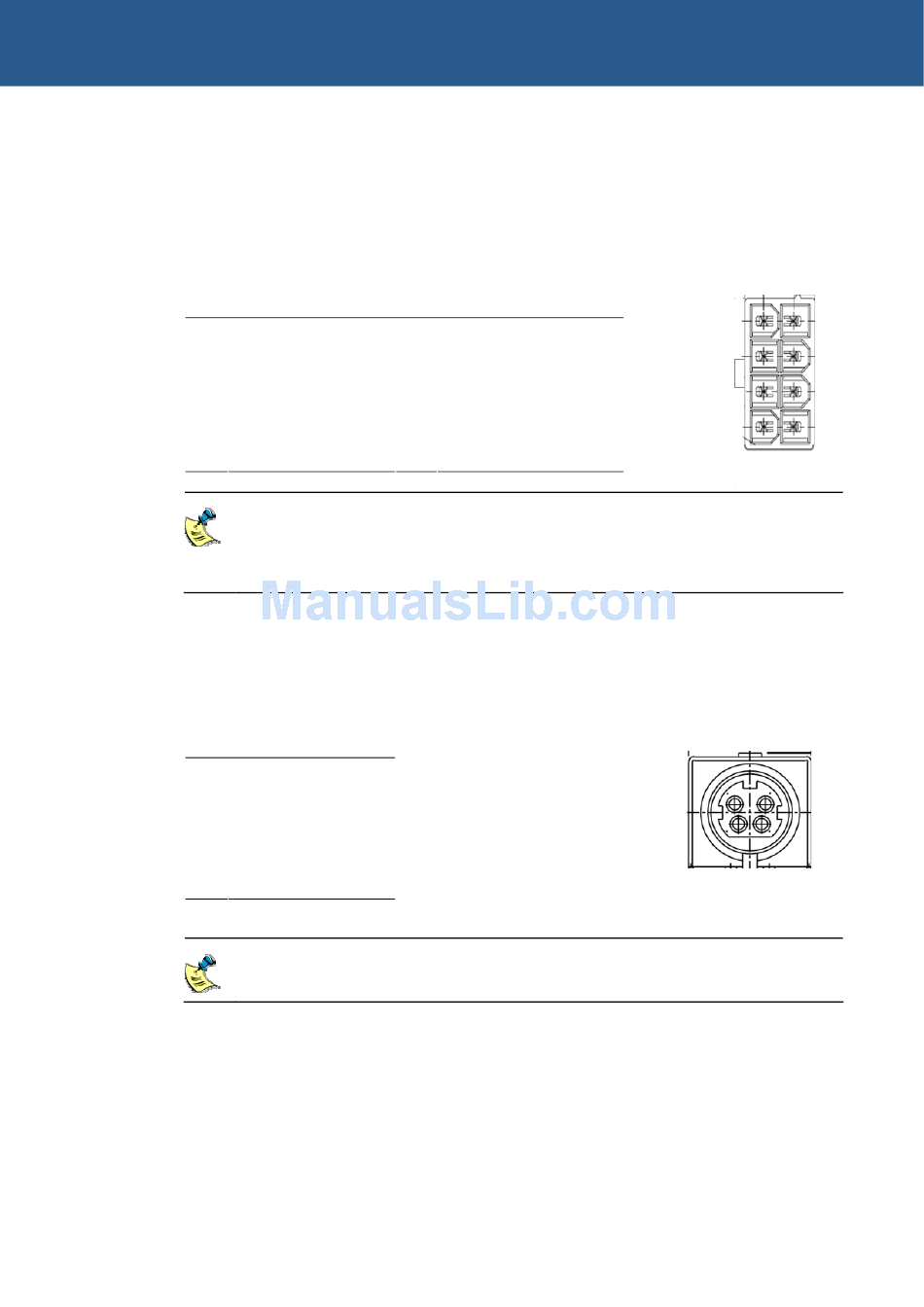

J2 – Power connector (5V option)
Connector: Neltron 5566S-08, 8-way, 4.2mm (0.165") pitch mini fit header
Mating connector: Molex 39-01-2085, 8-way, 4.20mm (0.165") pitch mini-fit, receptacle
housing
Mating crimps: Molex 44476-1112
Pin Signal name
1 GND
2 GND
3 GND
4 +12V
+12V connection is defined, but is not required for the ZEUS under normal
operation. It can be used to supply +12V to the PC/104 stack if required.
J3 is not fitted when J2 is fitted.
J3 – Power connector (10-30V)
Connector: Kycon KPJX-4S-S, 4-way DC power socket
Mating connector: Kycon KPPX-4P plug
Pin Signal name
1 PWR_IN
2 IGNITION
3 GND_IN
4 GND_IN
J2 is not fitted when J3 is fitted.
© 2007 Eurotech Ltd Issue D
Pin Signal name
5 +5V
6 +5V
7 +5V
8 NC
Connectors, LEDs and jumpers
5
8
1
3
As viewed from the front panel
1
4
2
4
