ZEUS Technical Manual

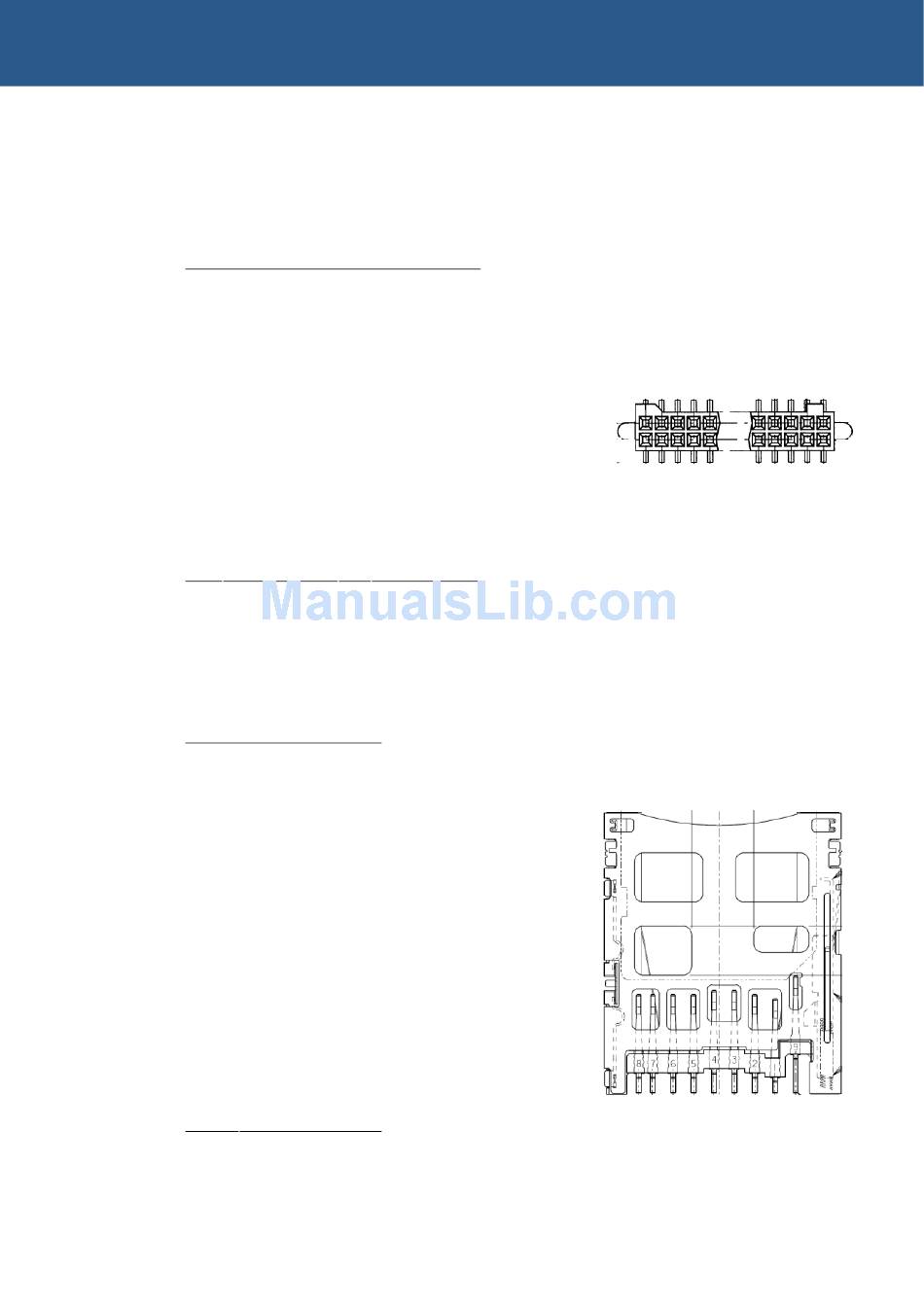

J21 – IEEE802.15.4 / ZigBee connector
Connector: Harwin M50-4321005, 20-way, 1.27mm dual row socket
Mating connector: M50-4921005, 20-way, 1.27mm dual row header
Pin Signal name
1 +3V3
3 GND
5 NC
7 ZB_BTRXD
9 ZB_BTCTS#
11 NC
13 NC
15 NC
17 NC
19 NC
J22 – SDIO socket
Connector: Molex 67913-0002, 2.50mm (0.098") Pitch SDIO Memory Card Connector,
Reverse-Mount Type
Pin Signal name
1 MMDAT3
2 MMCMD
3 GND
4 +3V3
5 MMCLK
6 GND
7 MMDAT0
8 MMDAT1
9 MMDAT2
10 MMC_WP
11 +3V3
12 MMC_CD
© 2007 Eurotech Ltd Issue D
Pin Signal name
2 +3V3
4 GND
6 RESET#
8 ZB_BTTXD
10 ZB_BTRTS#
12 NC
14 NC
16 NC
18 NC
20 NC
Connectors, LEDs and jumpers
2
1
20
19
