ZEUS Technical Manual

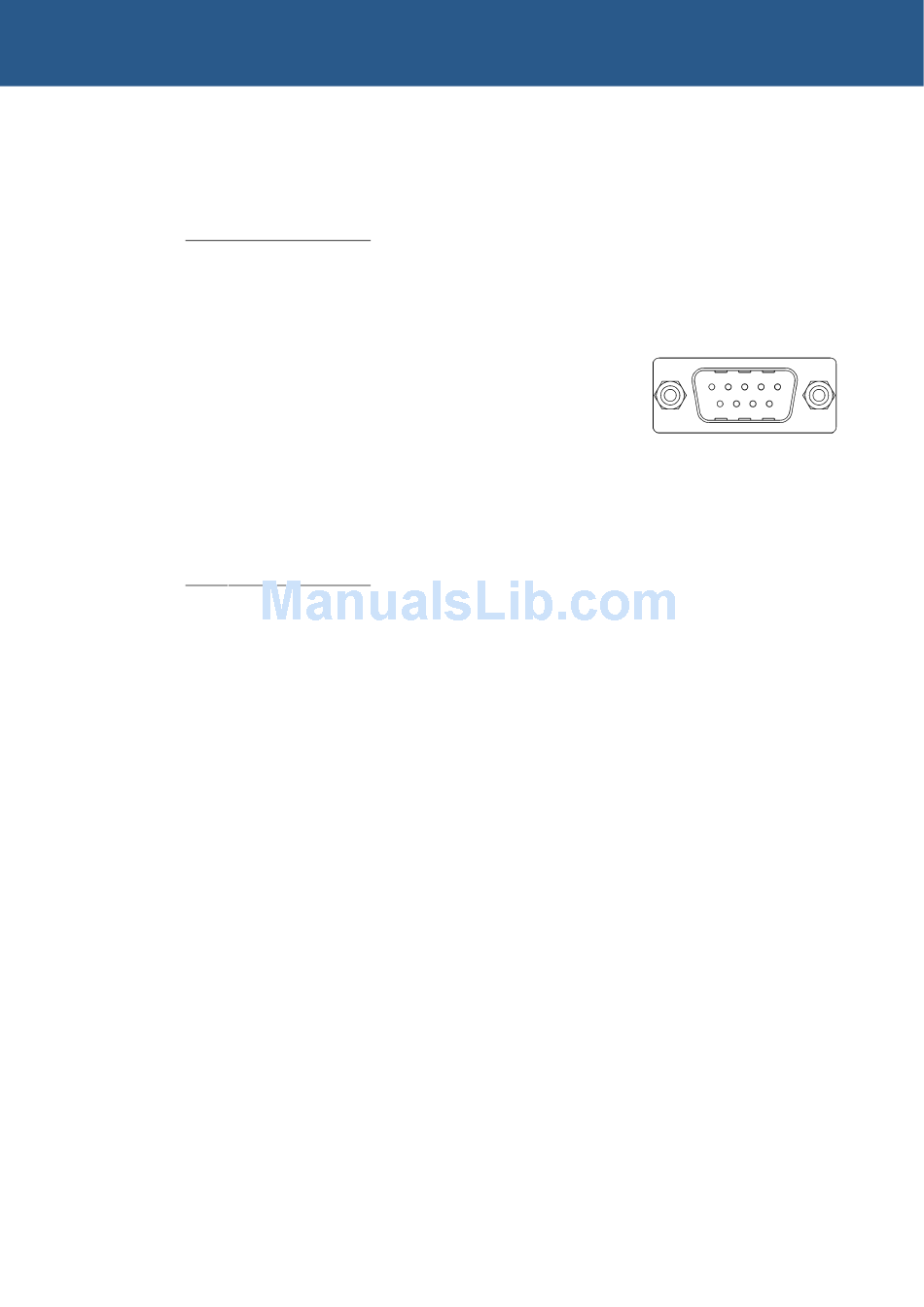

J11 – Serial port – COM1
Connector: 9-pin D-type Plug male type
Pin
Signal name
1
DCD1
2
RX1
3
TX1
4
DTR1
5
GND
6
DSR1
7
RTS1
8
CTS1
9
RI1
© 2007 Eurotech Ltd
Issue D
Connectors, LEDs and jumpers
1
5
6
9
83
