ZEUS Technical Manual
Connector Function
J19
J20
J21
J22
J23
J24

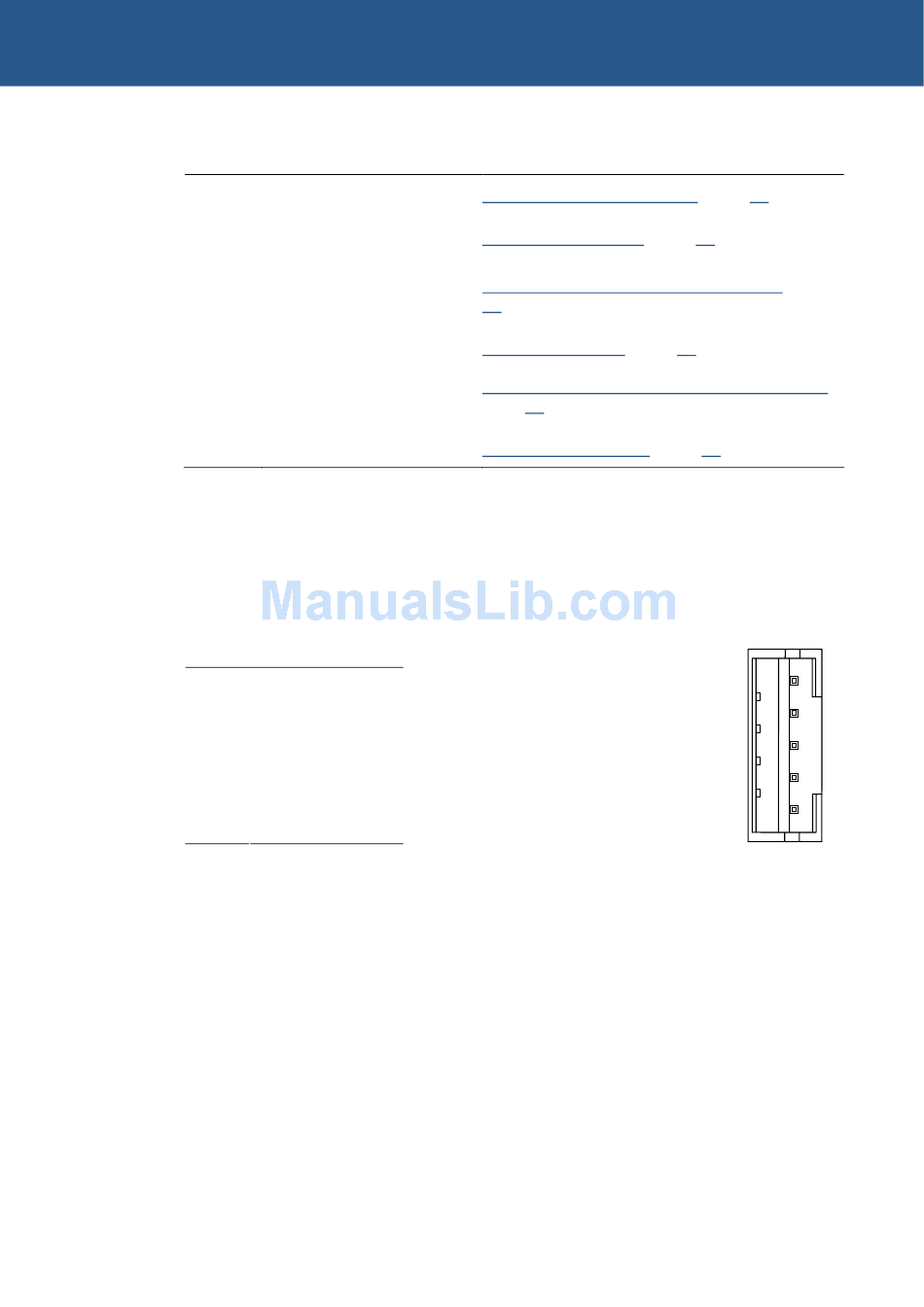

J1 – Touchscreen connector
Connector: Neltron 2417SJ-5-F4, 5-way, 2mm (0.079") pitch wire-to-board header
Mating connector: Molex 87369-0500 2mm (0.079") pitch crimp housing
Mating crimps: Molex 50212
Pin Signal name
1 TSRY+/TR
2 TSRY-/BL
3 TSRX+/BR
4 TSRX-/TL
5 TSW
© 2007 Eurotech Ltd Issue D
Serial ports (COM3/4)
CF+ interface
IEEE802.15.4 / ZigBee
SDIO
Wireless interface
Backlight power
Connectors, LEDs and jumpers
Connector details in section...
J19 – Serial ports – COM3/4, page
J20 – CompactFlash , page
J21 – IEEE802.15.4 / ZigBee
90
J22 – SDIO socket, page
J23 – Wireless modem/GPS module
page 91
J24 – Backlight power, page
88
89
connector, page
90
interface,
92
5
1
