ZEUS Technical Manual
J20 – CompactFlash connector
Connector: 3M N7E50-M516RB-50
Pin Signal name
1 GND
3 D4
5 D6
7 CE1#
9 OE#
11 A8
13 +3.3V
15 A5
17 A3
19 A1
21 D0
23 D2
25 CD2#
27 D11
29 D13
31 D15
33 GND
35 IOWR#
37 RDY/BSY
39 GND
41 RESET#
43 NC
45 NC
47 D8
49 D10
© 2007 Eurotech Ltd Issue D

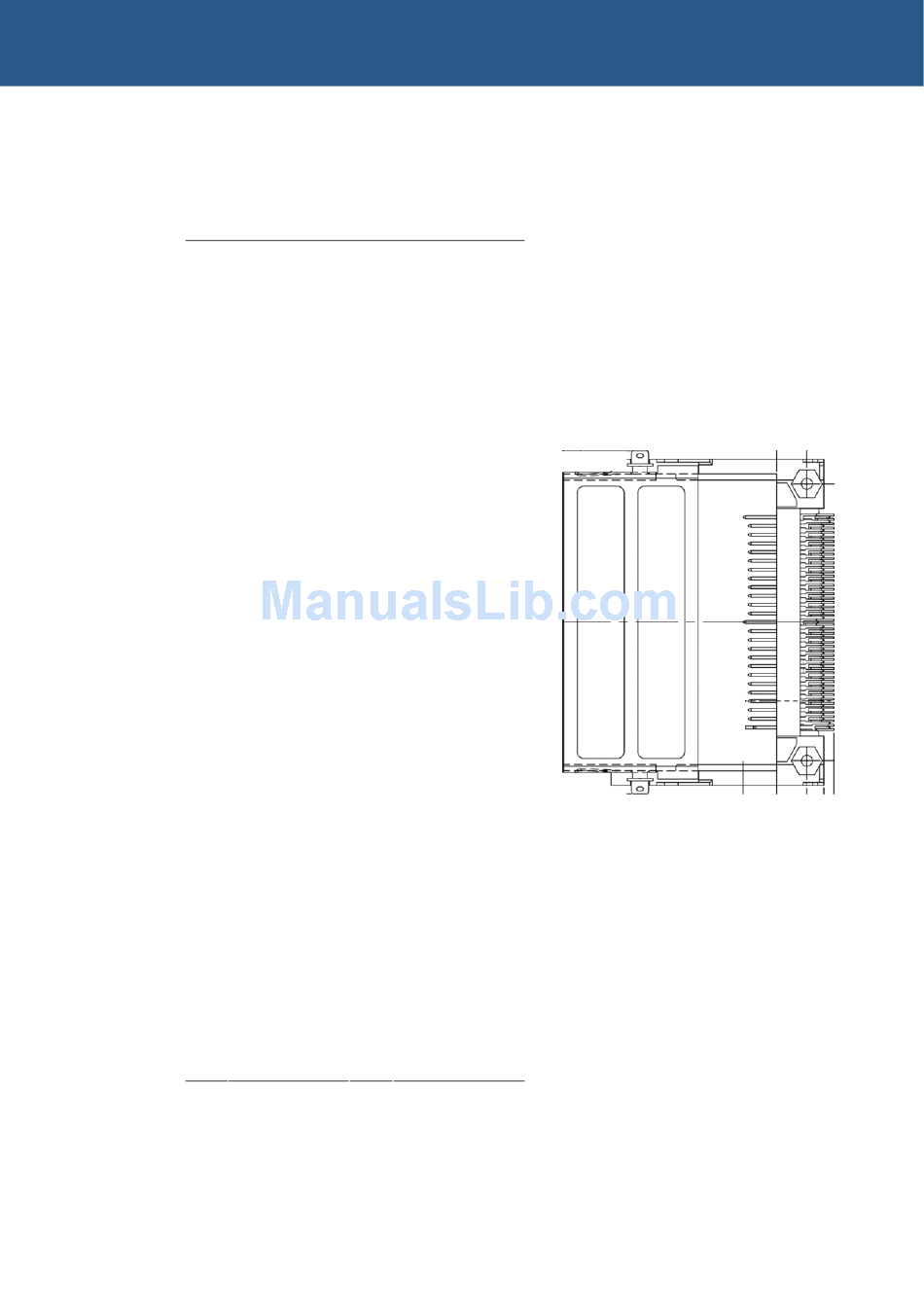

50-way CompactFlash type II connector
,
Pin Signal name
2 D3
4 D5
6 D7
8 A10
10 A9
12 A7
14 A6
16 A4
18 A2
20 A0
22 D1
24 IOCS16#
26 CD1#
28 D12
30 D14
32 CE2#
34 IORD#
36 WE#
38 +3.3V
40 NC
42 WAIT
44 REG#
46 NC
48 D9
50 GND
Connectors, LEDs and jumpers
1
50
