ZEUS Modem-3

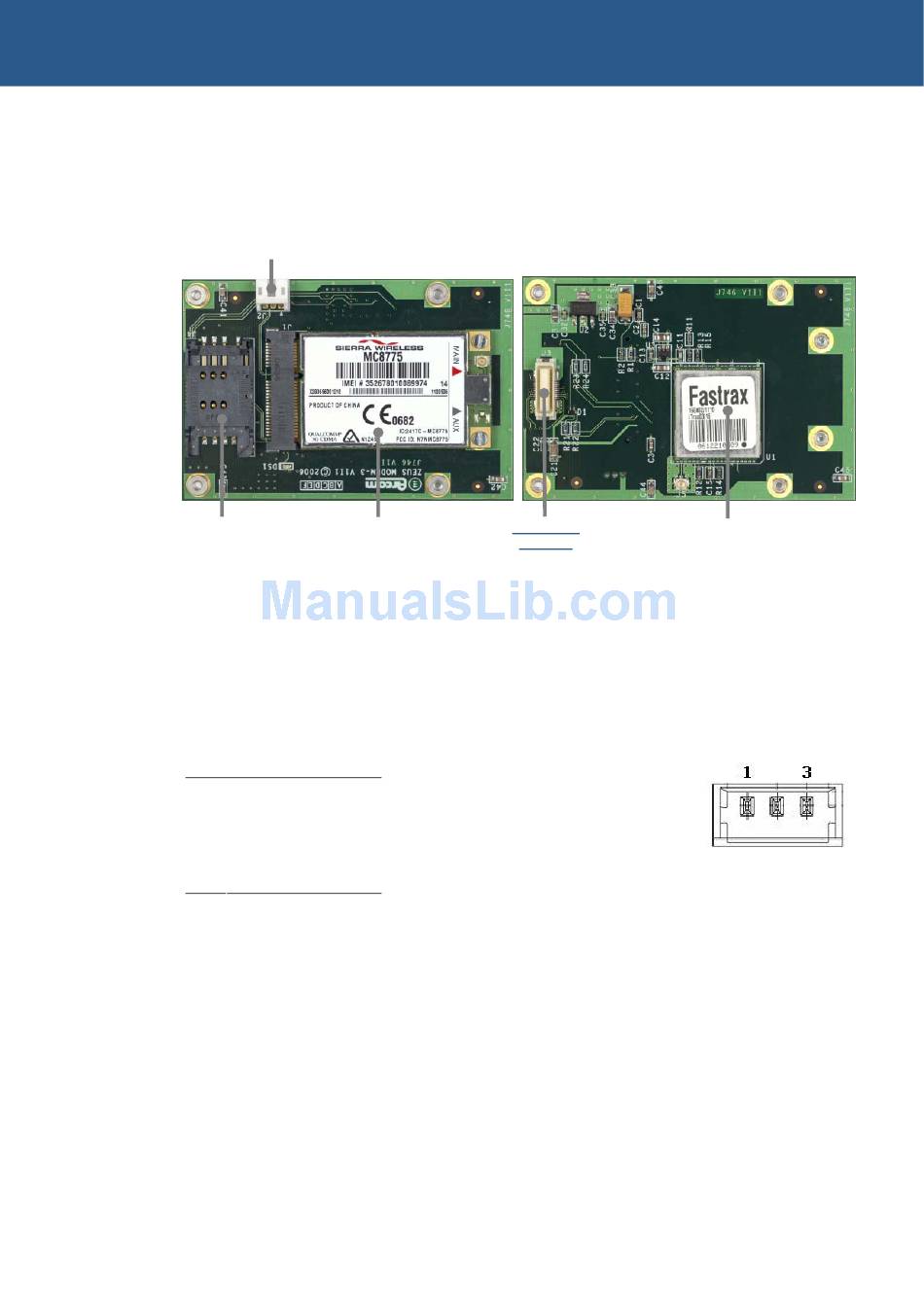

The following photos show the ZEUS Modem-3 with Fastrax GPS receiver and several
possible options for Sierra Wireless embedded modules.
J2 – Sierra wireless
USB data (see below)
J4 –
SIM card
J2 –Sierra wireless USB data connector
Connector:
Mating connector:
Mating crimps: JST SPH-002T-P0.5S
Pin Signal name
1 SHIELD
2 DATA-
3 DATA+
© 2007 Eurotech Ltd Issue D
J1 – Sierra
Wireless module
NELTRON 2417RJ-3-F4, 3-way 2mm header
, 3-way 2mm housing, female
JST PHR-3
Appendix F - ZEUS Modem details
ZEUS host GPS module
interface
