ZEUS Technical Manual

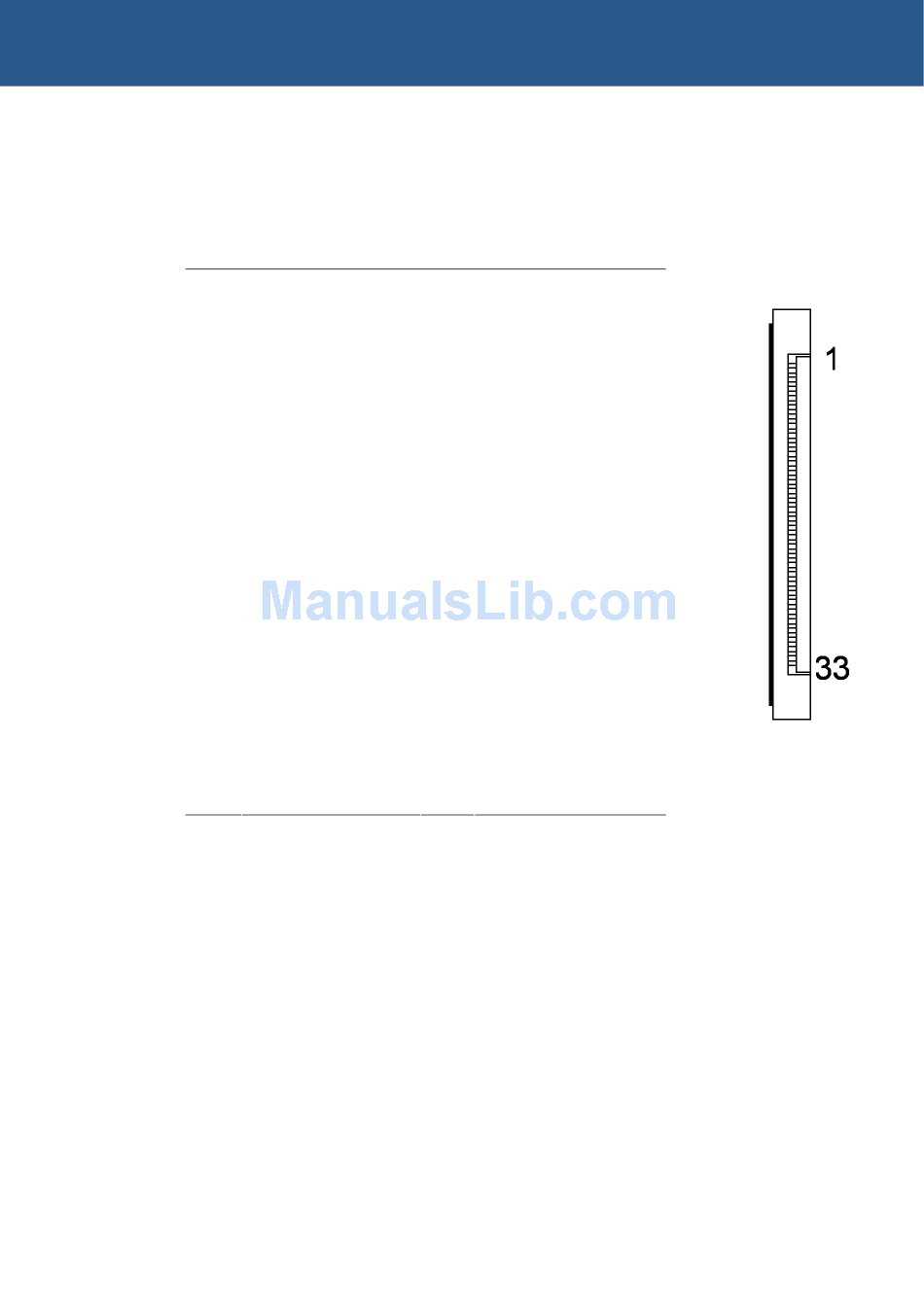

J3 – Direct connection to a NEC NL3224BC35-20 5.5inch 320x240 TFT display
Connector: Oupiin 2345-33TD2/SN
Mating cable: Eunsung 0.5x33x190xAx0.035x0.3x5x5x10x10
Pin Signal name
1 GND
2 PCLK (CLOCK)
3 LCLK (HSYNC)
4 FCLK (VSYNC)
5 GND
6 GND
7 FPD11
8 FPD12
9 FPD13
10 FPD14
11 FPD15
12 GND
13 FPD5
14 FPD6
15 FPD7
16 FPD8
17 FPD9
© 2007 Eurotech Ltd Issue D
Pin Signal name
18 FPD10
19 GND
20 GND
21 FPD0
22 FPD1
23 FPD2
24 FPD3
25 FPD4
26 GND
27 LBIAS
28 LCDSAFE
29 LCDSAFE
30 GND
31 GND
32 GND
33 GND
Appendix G - ZEUS-FPIF details
