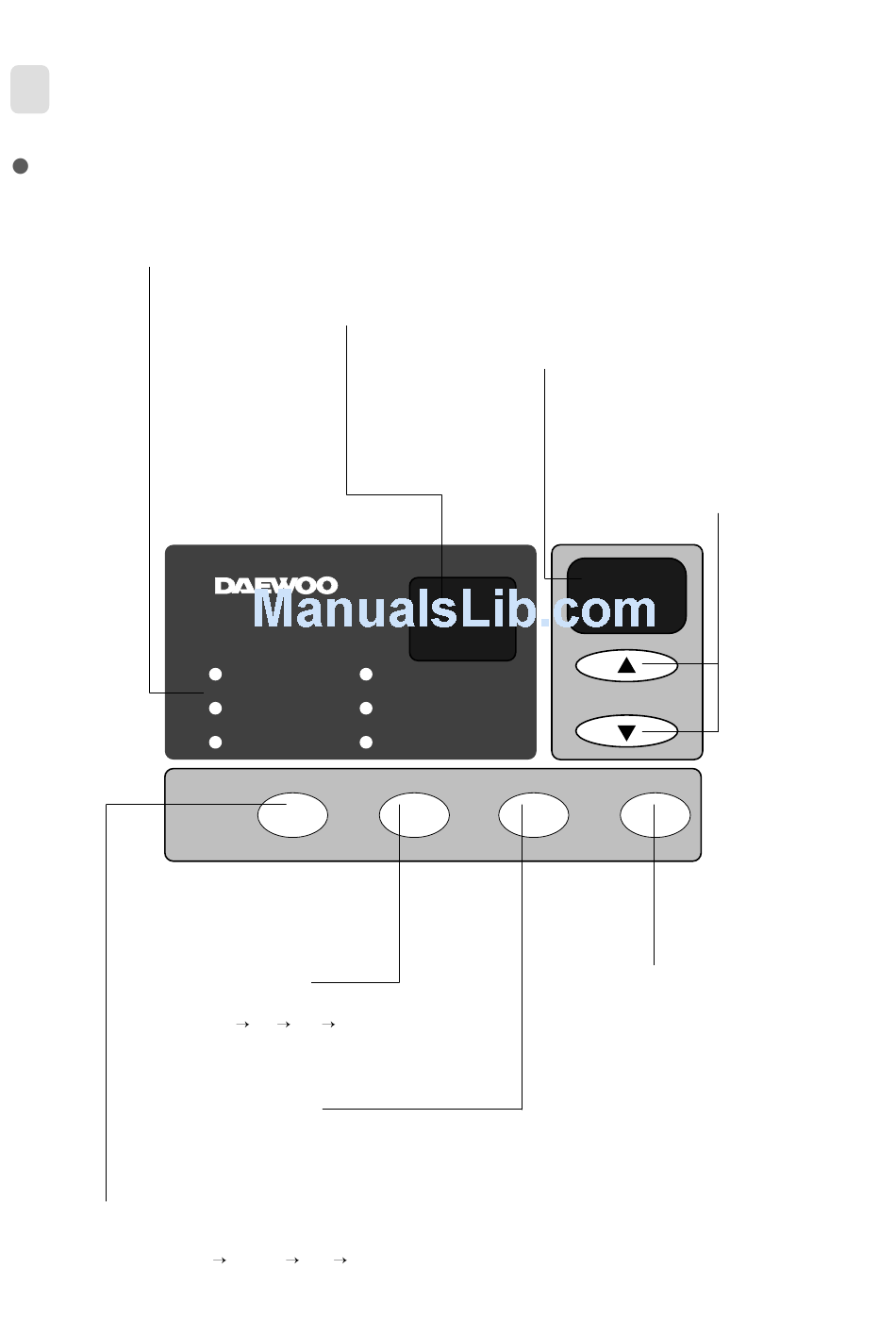

REMOTE CONTROLLER DISPLAY

SELECT ONE ALTERNATIVE PAGE 6 or PAGE 7
MODE DISPLAY
• It displays the operating mode.
FAN SPEED BUTTON
• Everytime you push this button, It is selected as
follow. (High Mid Low High)
AUTO SWING BUTTON
• Everytime you push this button, the auto swing mode is toggled.
MODE SELECT BUTTON
• Everytime you push this button, It is selected as
follow. (COOLING TURBO FAN COOLING)
TEMP./TIMER DISPLAY
• It displays the temperature and the timer.
REMOCON SIGNAL RECEIVER
Room Air-conditioner
FAN
TURBO
COOLING
FAN
MODE
SPEED
88
ROOM TEMP
DESIRED TEMP
TIMER
AUTO
SWING
POWER ON/OFF BUTTON
• To turn the unit ON, push this button.
6
TEMPERATURE SET BUTTON
• It is the button to set the desired
room temperature.
The temperature can be set
within a range from 16°C (60°F)
to 32°C (90°F) by 1°C (1°F)
SENSOR
TEMP
POWER
To turn the unit OFF, push this button
again.
