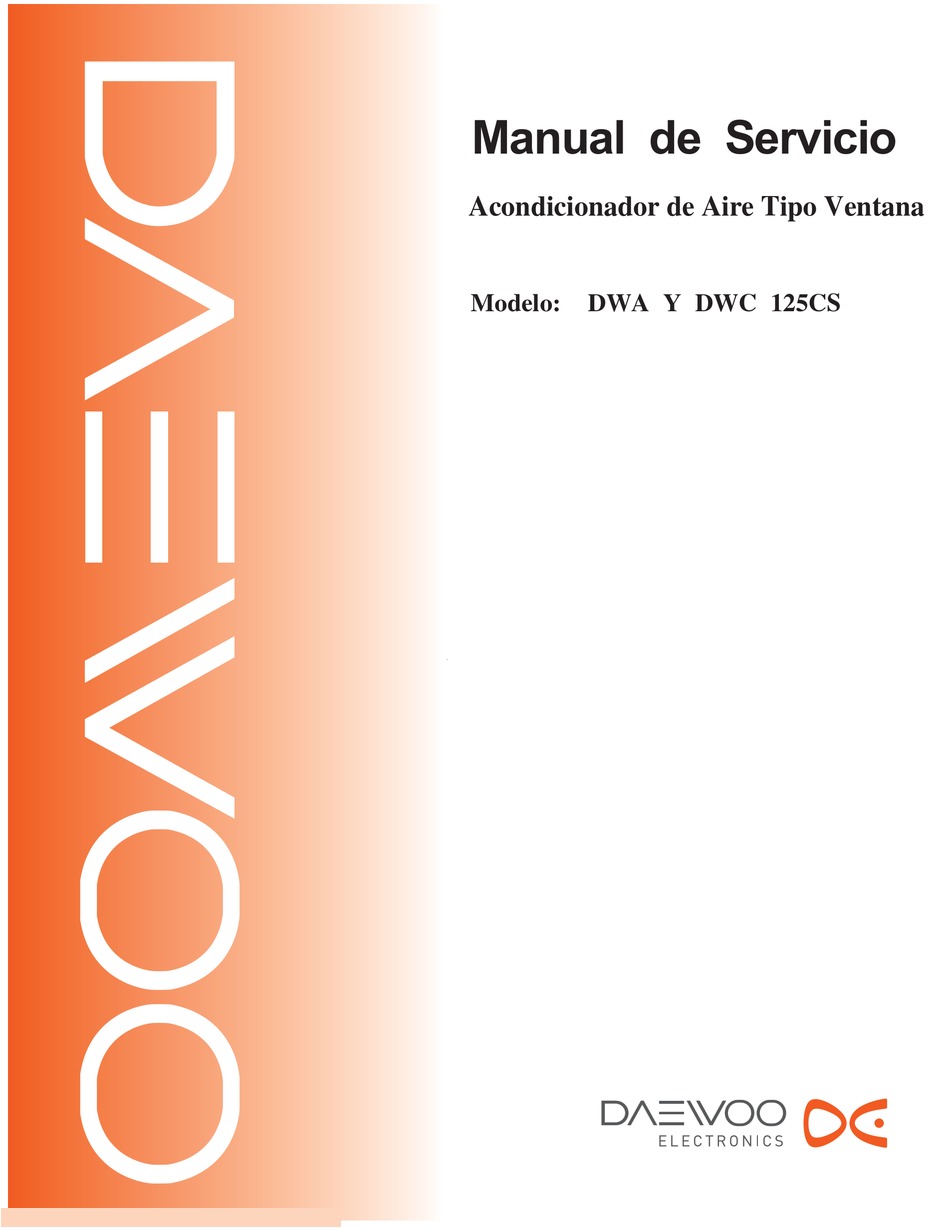

- Page 1 Manual de Servicio Acondicionador de Aire Tipo Ventana Modelo: DWA Y DWC 125CS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTION................2 2. -
Page 3: Precaution
1. PRECAUTION Please observe the following instructions. 1. Turn off unit. Make sure the unit is OFF and the AC cord is unplugged before repairing or servicing. 2. In case of checking the circuit unavoidably while the unit is connected with power source, be careful not to connect with the part of electric charge. -
Page 4: General Specifications
2. GENERAL SPECIFICATIONS MODEL DWC-104C/CS DWC-125C/CS DWA-125C/CS DWA-145C/CS ITEM Function Cooling only Power source AC 115V, 60Hz AC 208~230V, 60Hz Btu/h 10,000 12,100 12,000 14,000 Cooling Capacity Kcal/h 2,520 3,049 3,024 3,528 Energy Efficiency Btu/wh 10.0 10.1 10.1 10.0 Ratio Kcal/wh 2.50... -
Page 5: Names Of Major Components
3.NAMES OF MAJOR COMPONENTS • DWC-104C/DWC-125C/DWA-125C/DWA-145C • DWC-104CS/DWC-125CS/DWA-125CS/DWA-145CS NO PART NAME NO PART NAME AIR FILTER AIR VENT GRILLE FRAME GRILLE CABINET FRAME GUIDE TOP BLADE VERTICAL FRAME WINDOW KIT KNOB THERMOSTAT SHUTTER WINDOW KNOB SELECTOR AUTO LOUVER S/W (DWC-104CS/DWC-125CS/DWA-125CS/DWA-145CS) -
Page 6: Function Of Main Components
4. FUNCTION OF MAIN COMPONENTS 1. ROTARY SWITCH (SELECTOR) Please refer to the part of selector in the chapter 9 (Wiring Diagram). The rotary switch (selector) controls the fan motor’s rotation speed, and has six positions. The function of the six position is as follow. •... -
Page 7: General Informations
5. GENERAL INFORMATIONS 1. CHANGING AIR FLOW DIRECTION Air flow deflectors divert air from center flow to left or right and up or down. Adjust deflectors for desired air flow pattern. 2. AIR FLOW AROUND UNIT Check in door grill and outdoor louvers for air flow obstructions. Do not block air flow to and from unit. The outdoor coil should be checked and periodically cleaned for debris that may collect and block unit air flow. -
Page 8: Care And Maintenance
6. CARE AND MAINTENANCE 1. AIR FILTER Clean the air filter, which removes dust inside the room. It should be washed at least once every week during operation. 1. Open the inlet grille upward by pulling out the bottom of the inlet grille, lift it. 2. -
Page 9: Trouble Shooting Guide
7. TROUBLE SHOOTING GUIDE TROUBLE SITUATION ANALYSIS CAUSE REMEDY Fan motor and 1. Power failure 1) Power plug 1) Power failure • Consult your electric company compressor do not 2) Circuit breaker 2) Circuit breaker is tripped • In case of a breaker, turn it on and off a few times 3) Power plug is not contacting •... - Page 10 TROUBLE SITUATION ANALYSIS CAUSE REMEDY The compressor runs 1) Fan • Blocked by others • Repair but the motor doesn’t 2) Fan motor 3) Capacitor • Disconnection or burned-out • Replace the fan motor 4) Fan motor circuit electric cord •...
-
Page 11: How To Disassemble
8. HOW TO DISASSEMBLE Please refer to the chapter 11 (Exploded diagram and parts list). (NOTE: A or C) Before service of 1. Stop the unit, remove the power cord from the receptacles. any part. 2. Move the unit to the safe location for the suitable work. Ass’y Fan Motor 1. -
Page 12: How To Remove The Front Grille
• HOW TO REMOVE THE FRONT GRILLE 1. Open the grille upward by pulling out the bottom of the grille, lift it. 2. Remove screw which fasten Frame Grille with driver. 3. Pull knobs out of the control. (when the knobs are too tight to release, leave them.) 4. -
Page 13: Wiring Diagram
9. WIRING DIAGRAM • DWC-104C/DWC-125C/DWA-125C/DWA-145C WIRING DIAGRAM (3103523900) SELECTOR SWITCH HIGH COOL COOL COOL WHT(BLU) THERMOSTAT O.L.P SWITCH COMP BLK(BRN) MOTOR GRN(GRN/YEL) CAPACITOR • DWC-104CS/DWC-125CS/DWA-125CS/DWA-145CS WIRING DIAGRAM (3103523910) SELECTOR SWITCH HIGH COOL COOL COOL WHT(BLU) AUTO LOUVER SWITCH SWING MOTOR THERMOSTAT O.L.P... -
Page 14: Refrigerant Cycle
10. REFRIGERANT CYCLE Evaporator Blower fan MOTOR Capillary tube Accumulator Compressor Propeller fan Condenser... -
Page 15: Exploded Diagram And Parts List
11. EXPLODED DIAGRAM AND PARTS LIST. DWC-104C/CS,DWC-125C/CS PARTS LIST DWC-104C/CS,DWC-125C/CS PARTS LIST CODE COMPONENTS Q'TY SPECIFICATION REMARK 3112200400 FRAME GRILLE HIPS(HI-450) 1-1 3112401600 GRILLE HIPS(HI-450) 3103400701 KNOB HIPS 3101600600 DECO FRONT PC FILM, MECHANICAL, C DWC-104C,125C 3101601200 DECO FRONT PC FILM, MECHANICAL, CS... - Page 16 HZ20-6 3111372B20 POWER CORD SJT 3*16 AWG, 125V, 13A 3109507400 CAPACITOR 370VAC 12/50•ÏF DWC-125C/CS 3116907100 CAPACITOR 370VAC 12/45•ÏF DWC-104C/CS 3101201600 CLAMP CAPACITOR SGCC T0.8 3108004800 MOTOR SWING ST-16 120VAC 60HZ DWC-104CS,125CS 3100508500 BOX CONTROL SGCC T0.8*410*331 ZERO/SP 3106600500 SCROLL UPPER...
- Page 17 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) DWA-125C/CS, DWA-145C/CS PARTS LIST CODE COMPONENTS Q'TY...
- Page 18 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) CODE COMPONENTS Q'TY SPECIFICATION...
- Page 19 DWC-104C/CS, DWC-125C/CS, DWA-125C/CS, DWA-145C/CS EXPLODED DIAGRAM...
- Page 21 DAEWOO ELECTRONICS CORP. 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX: DWELEC K28177-8 CABLE: “DAEWOOELEC” FAX: 02) 590-6291 TEL: 02) 360-7114/590-6151~5 http://www.dwe.co.kr S/M NO.: DWA125C020 PRINTED DATE: JAN.2004...
